OVERVIEW

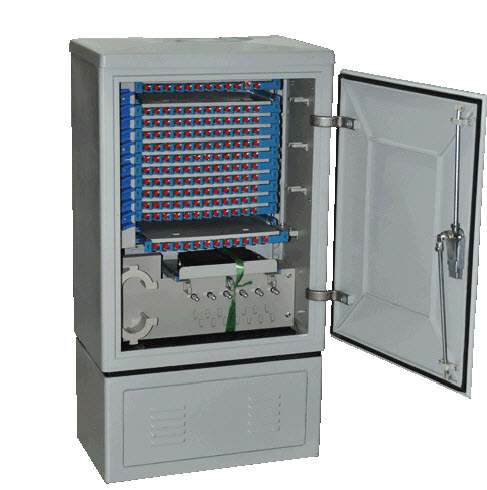

The SMC Cabinet 144 core Outdoor can support adapter type ST, SC, FC, and LC fiber optic Single-mode or Multi-mode cable. Empty Cabinet and Option order for  Splice tray inside for easy working fusion splice fiber optic cable.

Feature

•  Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material (SMC-Glass steel), with protection reaching IP66 grade.

•  Adapting various bad weather conditions, with reliable sealing, water-proof and dampproof.

•  Splicing & distribution integration module with adaptor assembly, fusion, and connection, storage in integration, inserted assembling

•  Available for a different type of adaptors such as FC, SC, ST, LC

•  Adaptors assembling with defluxion of 30 angles to ensure fiber pigtail bending radius, with perfect control winding ring of the fiber in horizontal and vertical

•  The bottom end is assembled with a spare splice tray, for direct fusion and connection of trunk optical cables and distribution cables

Specification

•  Working temperature: -40C to +40C

•  Storage temperature: -40C to +60C

•  Relative humidity: ≤95% to +40C

•  Atmospheric pressure: 70Kpa to 106Kpa

•  Capacity 144 core

•  Dimension 1035*550*310mm

•  Available Adaptor FC,SC,LC, ST

•  Material SMC-Glass steel
