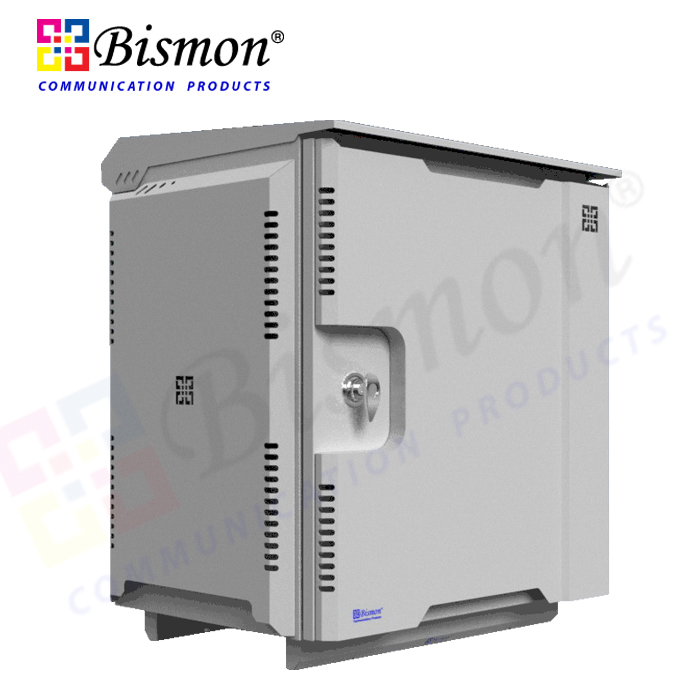

19" Wall Rack 12U Outdoor Fiber optic (60cm) Double Layer

Part number : B1-WM12U-OUT6-R

Brand : BISMON

Price : 34,068.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

19" Wall Rack 12U Outdoor Fiber optic (60cm) Double Layer metal EG-sheet for the outdoor standard type. Water-proof outdoor cabinet for installation of fiber optic distribution unit. support FTTX easy services to the customer.

Brand	Bismon
Model	B1-WM12U-OUT6-R
Equipment Type	Wall rack outdoor
Size	676 mm x 600 mm x 600 mm (HighxWidthxDepth)
Standard	Compliant IP55, IP65
Color
Material	(EG)-Electro Galvanised Steel
Application	The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifers, broadband equipment
Features	• 19 inch support for rack style standard, 12U High
	• Double Layer for 3 wall outside protect UV direct to wall side and cooling by holes
	• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets”
	style, not rubber style
	• Double folded gutter at door frame to increase rigidity and prevents water from enter
	• All screw or nut made of stainless steel
	• Can support rack mount 1U or 3U patch panel fiber optic max capacity: 12U
	• Can support cable entry 5 port and 2 cable grands EG/PG29
	• Can support cable management inside easy for use cable tie lock
	• Can support FAN 2x4inch for air flow, 2 point (Top & Bottom Rack) Max:4 pcs
	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support hinges provide 130 deg. door opening
	• Support grounding at door, side cover, and cabinet frame
	• Surface finished cabinet with epoxy-polyester coating
Option (Made to order)	สินค้าสั่งผลิต Material :SPCC Steel sheet 2.0mm , hot-dipped galvanized for all wall rack cabinet , Stainless, Aluminum

- 19 inch mounting rails - 12U High for equipment - CNC Foam Gasket sealing protect from outside waterproof - Compliant IP55, IP65 - Free mounting brackets arm for wall, hang on, on the lamp post - Cable management fix point in side entry of cable - All screw, nut, key made of stainless steel - Support FAN 4inch max:4 pcs. two point (Top and Down) - Support FTTX, DATACOM, CCTV, Security, Broadcasting and Telecom Option: Can made to order material: Steel, Aluminum, Stainless
