OVERVIEW

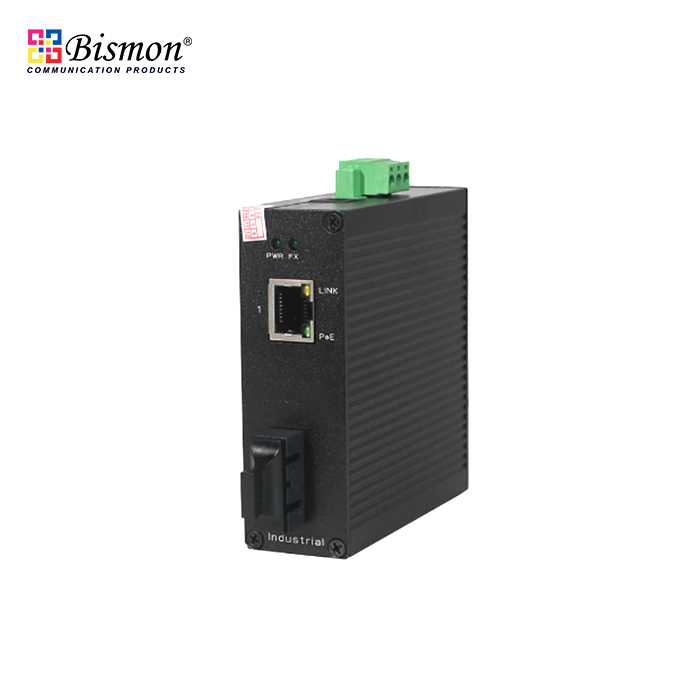

The B1-IPS33021PFS-M is a Gigabit industrial PoE fiber switch independently developed by BISMON. It has 1*10/100/1000Base-T RJ45 port and 1*1000Base-X uplink SC fiber port Multi-mode Fiber optic. Port 1 can support IEEE 802.3 af/at PoE standard and the single-port PoE power is 30W. As a PoE power supply device, it can automatically detect and recognize power-receiving devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
Gigabit access
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and uplink SC fiber port Multi-mode to meet the networking requirements of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 1*10/100/1000Base-T RJ45 port supports PoE power to meet the PoE power supply needs of various scenarios in the industrial field.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33021PFS-M
|
B1-IPS33032PFS-M
|
|
Interface Characteristics
|
|
Fixed Port
|
1*10/100/1000Base-T PoE port (Data/ Power)
1*1000Base-X SC fiber port (Data)
Multi-mode
2 set V+, V- redundant DC power ports (5P industrial Phoenix terminal)
|
2*10/100/1000Base-T PoE ports (Data/ Power)
1*1000Base-X SC fiber port (Data) Multi-mode
2 set V+, V- redundant DC power ports (5P industrial Phoenix terminal)
|
|
Ethernet Port
|
Port 1/ 1-2 can support10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Gigabit single-mode dual fiber SC optical module. (optional single-mode single fiber/ multi-mode dual fiber optical module)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
12Gbps (non-blocking)
|
|
Forwarding Rate@64byte
|
2.98Mpps
|
4.46Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green)
|
|
PoE& Power Supply
|
|
PoE Port
|
Port 1
|
Port 1-2
|
|
Power Supply Pin
|
1/2 (+) 3/6 (-)
|
|
Power Consumption
|
Standby<4W, Full load<32W
|
Standby<5W, Full load<60W
|
|
Input Voltage/ Interface
|
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 48V/36W or 48V/60W industrial power supply
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension
|
92*88*32mm
|
|
Net /Gross Weight
|
0.3kg/ 0.4kg
|
|

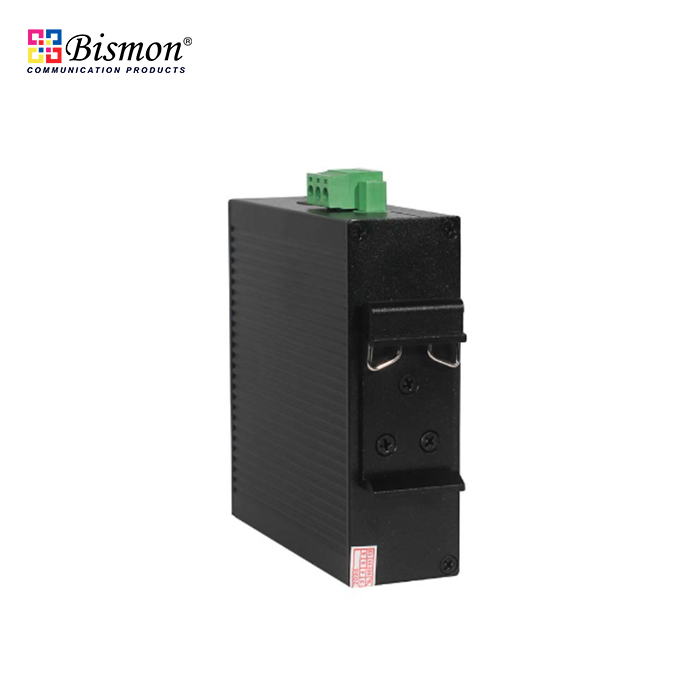

Installation
|
Desktop, 35mm DIN Rail
|
|
Certification& Warranty
|
|
Lightning Protection
|
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz
IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV
Protection level: IP40, Lightning protection: 6KV 8/20us
IEC61000-4-4(EFT): Power cable: ±4kV, Data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
