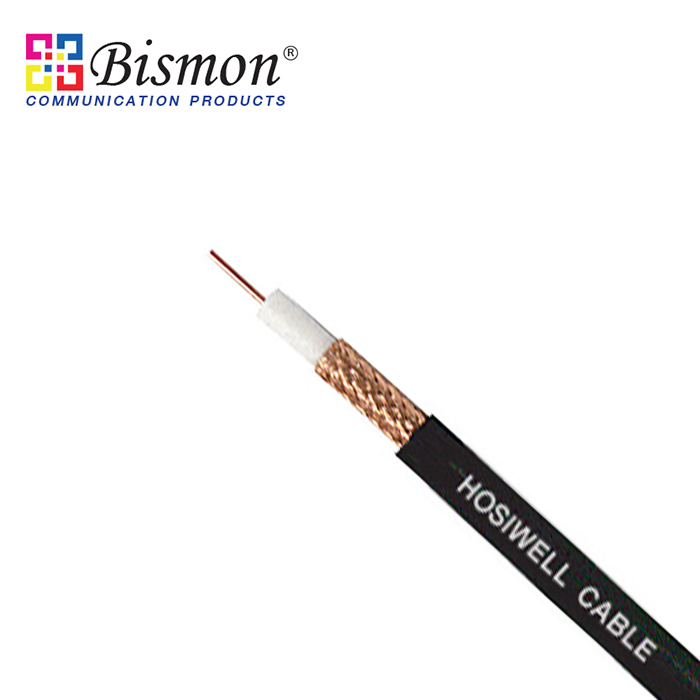

1.5C-2V Shield 95% BC Braid 75 ohm JIS Coaxial Cable
Part number : 1.5C-2V
Brand : HOSIWELL
Price : 0.00 Baht
| Hosiwell JIS 75 ohm Coaxial Cable for Electronic Equipment |
| As a premium coaxial cable manufacturer, Hosiwell manufactures the JIS 75 ohm coaxial cable for Electronic Equipment Application series in best quality. |
| Marking on cable surface: HOSIWELL CABLE XXC - 2V COAXIAL CABLE E131077 AWM 1354 60°C 30V 1CXX SHIELDED |
| 1.5C-2V : Bonded foil, 95% BC braid shield , PE insulation , PVC jacket , 1/0.26mm |
|
Application
|
|
TV, radio or phone receivers on automobile or ship, Car navigation system (GPS)
|
| Wiring inside telecommunications and electronic equipment such as portable phone |
|
Specification & Hosiwell Unique Features
|
|
• Solid or stranded cpper or copper-covered steel conductor
|
| • Solid Polyethylene Insulation |
| • Bare copper braid shield 95% coverage |
| • Standard Attenuation @20 C (dB/100m) is 86 (for 2.5D-2V),155 (for 1.5D-2V),90 (for 2.5C-2V) and 130 (for 1.5C-2V) at 30 MHz |
| • Normal Impedance: 75ohm |
| • Manufactured according to JIS and AWM Standard |
| Product Description |
| Center Conductor : |
| 30AWG (1/0.26mm) Solid Bare Copper Wire |
| Insulation : PE |
| Nominal Diameter Over Insulation : 1.60 mm |
| Nominal Insulation Thickness : 0.67 mm |
| Shield : |
| Bare Copper Wire Braid Shield 95% Coverage |
| Jacket : PVC |
| Nominal Diameter Over Jacket : 2.90 mm |
| Nominal Jacket Thickness : 0.40 mm |
|
Listing and Ratings : UL Type AWM
|
