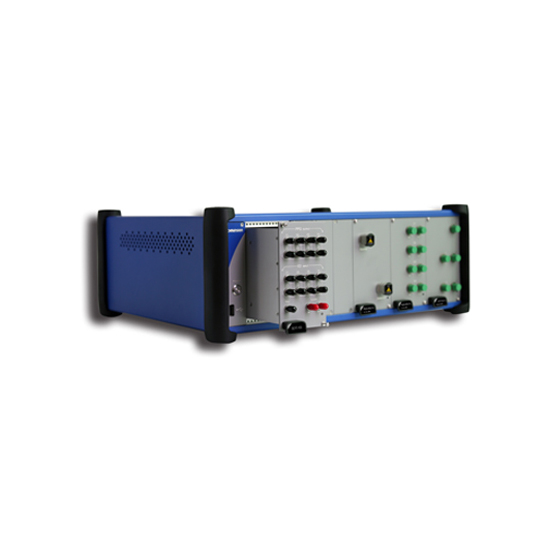

BERT1034B 100G NRZ Bit Error Ratio Tester

BERT1034B 100G NRZ high performance BER tester has built-in pattern generator and error detector. The pattern generator supports NRZ encoding from 1Gbps to 34Gbps. The tester supports multiple patterns and custom patterns

Main Features

 1Gbps to 34Gbps NRZ encoding

 Support multi-level emphasis and de-emphasis

 Built-in PPG and ED

 Modular design

 Support network, USB and other control methods

 Provide programming interface to support system integration

Main applications

• Optical module test

• High speed backplane test

Built-in pattern generator supports data rates of NRZ from 1Gbps to 34Gbps.

BERT integrates the pattern generator that supports a variety of rate configurations. The data rate can be flexibly configured according to the user's needs, and the UI interface is simple to operate.

 Laboratory-grade ultra-low output jitter (Rj≤ 300fs @ 28Gbps).

 The differential signal output amplitude of the PPG pattern generator is adjustable from 40mV to 1.1V. It supports built-in amplifiers for scalable output amplitudes up to 4V.

The PPG pattern generator supports output signal's amplitude adjustable, the source signal amplitude ranging from 40mV to 1.1V. The user can also make the output signal amplitude up to 4V when the built-in amplifier is used as required.

 PPG pattern generator supports multi-level de-emphasis (post-cursor and pre-cursor).

 Support commonly used patterns (clock pattern, PRBS7, PRBS9, PRBS15,PRBS23,PRBS31, and 64-bit custom pattern).

 BERT supports a variety of commonly used PRBS patterns, and users can customize pattern types according to their own needs, greatly expanding the practicability of testing and measurement.

 ED of BER tester has clock recovery circuit CDR, no external CDR module required.

The high precision clock recovery circuit module CDR is integrated into the ED of BER tester. Users do not need to configure additional CDR equipment, which not only reduces the cost of measuring equipment, saves space, but also reduces the unnecessary cable connection, helping users to reduce the maintenance difficulty.

 ED of BER tester has advanced analysis function (eye contour line, bathtub curve,etc.).

 Error code input sensitivity 40mV.

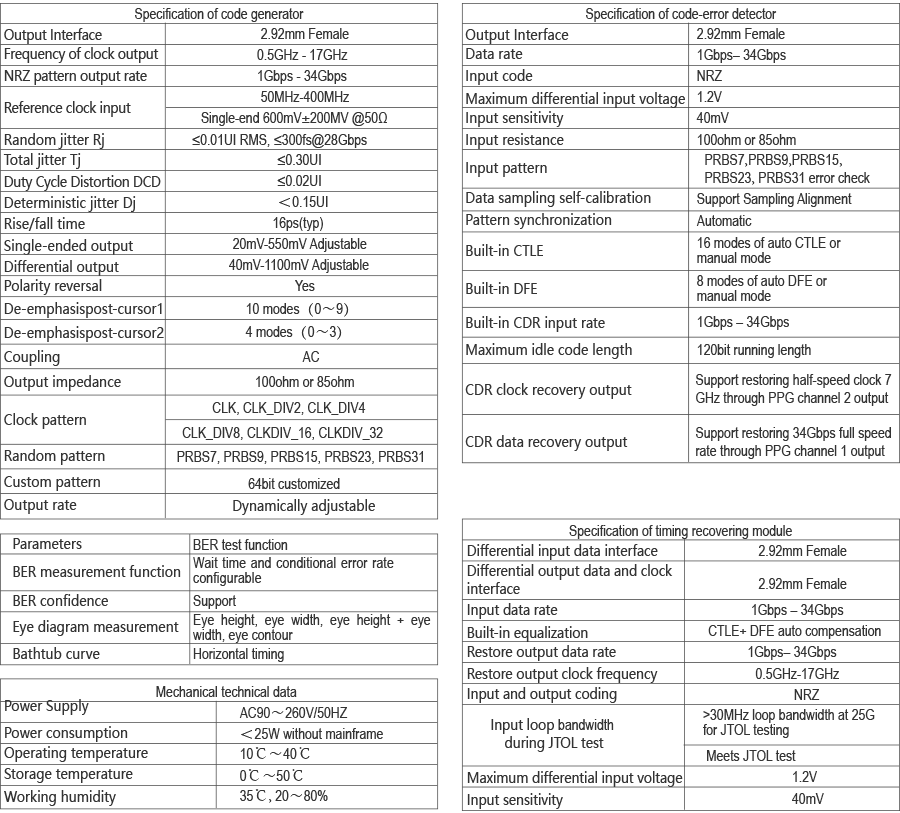

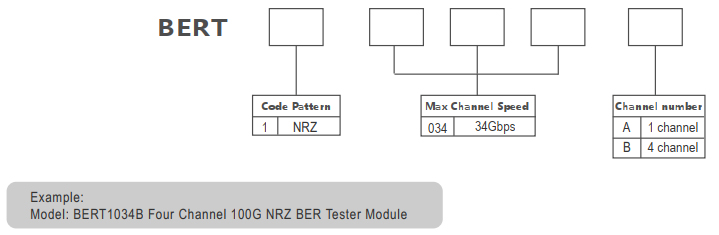

Ordering Information
