OVERVIEW
The B1-PSE3301DCS is a gigabit PoE injector independently developed by ONV. It has 2*10/100/1000M RJ45 ports. Port 1 can support IEEE802.3af/at standard PoE power supply, and single port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ) easy to connect
-Using Ethernet in and 1 Ethernet out connection mode, 2*10/100/1000Mbps RJ45 ports, convenient connection, and simple maintenance.
-Support non-blocking wire-speed forwarding.
Smart PoE power supply function
-1*10/100/1000Base-T RJ45 port support PoE, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
-IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
Stable and reliable
-CCC,CE, FCC, RoHS.
-Plug and play, no configuration, simple and convenient.
-Low power consumption, fan-less silent design, advanced ABS and PC flame-retardant plastic shell is exquisite and beautiful.
-Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
-The user-friendly panel, it can show the device status through the LED indicator of PWR, PoE.

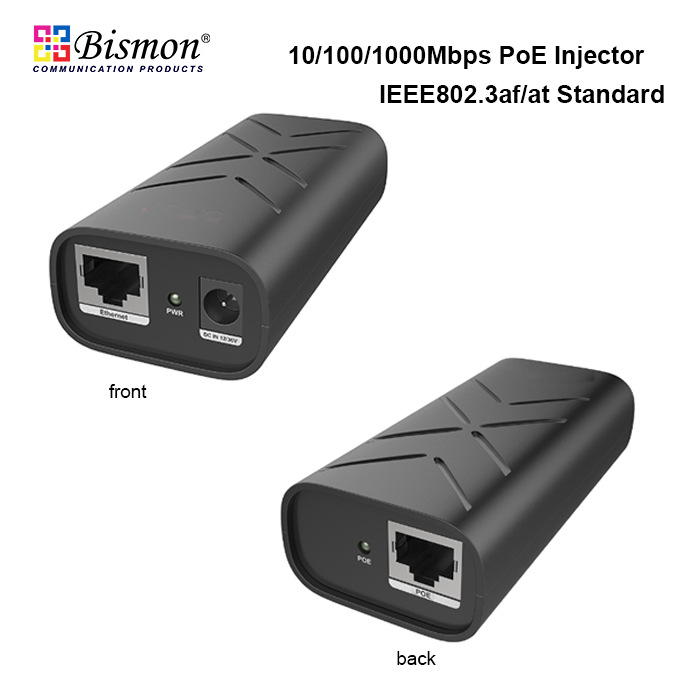

![](http://www.bismon.com/pic_product/pic_gall/B1-PSE3301DCS Gigabit PoE Injector_BISMON1.jpg)
DIMENSION
![Gigabit PoE Injector,PoE Injector](https://www.onvcom.com/Uploads/202009/5f5ecbf1f1b77.jpg)
TECHNICAL SPECIFICATION
Model
|
B1-PSE3301DCS
|
Interface Characteristics
|
Fixed Port
|
1*10/100/1000M PoE port (Data/Power)
1*10/100/1000M uplink RJ45 port (Data)
|
Ethernet Port
|
10/100/1000Base-T auto-sensing,Full/half duplex MDI/MDI-X self-adaption
|
Twisted Pair Transmission
|
10BASE-T:Cat3,4,5 UTP(≤100 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
1000BASE-T:Cat5e or later UTP(≤100 meter)
|
Network Protocol and Indicator
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
|
LED Indicator
|
Power: PWR (Green), POE: PoE (Green)
|
PoE & Power Supply
|
PoE Port
|
IEEE802.3af/at @ POE
|
Power Supply Pin
|
Default 1/2 (+), 3/6 (-)
|
Max Power Per Port
|
30W, IEEE802.3af/at
|
Total PWR / Input Voltage
|
30W (DC12-52V)
|
Power Consumption
|
Standby<2W,Full load<30W
|
Power Supply
|
External power adapter AC 100 ~ 240V 50-60Hz 0.56A
|
Physical Parameter
|
Operation TEMP / Humidity
|
-20~+55°C, 5%~90% RH Non condensing
|
Storage TEMP / Humidity
|
-40~+80°C, 5%~95% RH Non condensing
|
Dimension (L*W*H)
|
103*50*29mm
|
Net /Gross Weight
|
<0.09kg /<0.18kg
|
Installation
|
Desktop, wall mounted
|
Certification & Warranty
|
Lightning Protection
|
Port lightning protection: 4KV 8/20us, Protection level: IP40
|
Certification
|
CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
|
Warranty
|
1 year, lifelong maintenance.
|
