OVERVIEW
The B1-IPS58028FM is a 10G uplink L3 managed industrial Ethernet switch independently developed by ONV. It has 24*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Each port can support wire-speed forwarding.
The B1-IPS58028FM has L3 network management function, supports IPV4/IPV6 management, dynamic routing full line-speed forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application needs, port management, routing address management, port flow control, VLAN division, IGMP, security policy and other application services are configured through network management methods such as Web, CLI, SNMP, Telnet, etc. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy. industrial scenes such as construction set up a cost-effective and stable communication network.
FEATURE
Gigabit wire speed access, 10G uplink
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support Gigabit Ethernet port and 10G uplink SFP+ port to meet the networking requirements of various scenarios.
Security
- 802.1X authentication.
- Port isolation,Storm control.
- IP-MAC-VLAN-Port binding.
Strong business processing capability
- ERPS/STP/RSTP/MSTP.
- Static and dynamic aggregation.
- IGMP V1/V2 and IGMP Snooping.
- IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.
- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
- ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
Stable and reliable
- CCC,CE, FCC, RoHS.
- Low power consumption, No fan, galvanized steel case.
- Self-developed power supply, high redundancy design, providing a long term and stable power output.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link.
Easy operation and maintenance management
- HTTPS, SSLV3, and SSHV1/V2.
- RMON, system log, LLDP, and port traffic statistics.
- CPU monitoring, memory monitoring, Ping test, and cable diagnose.
- Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

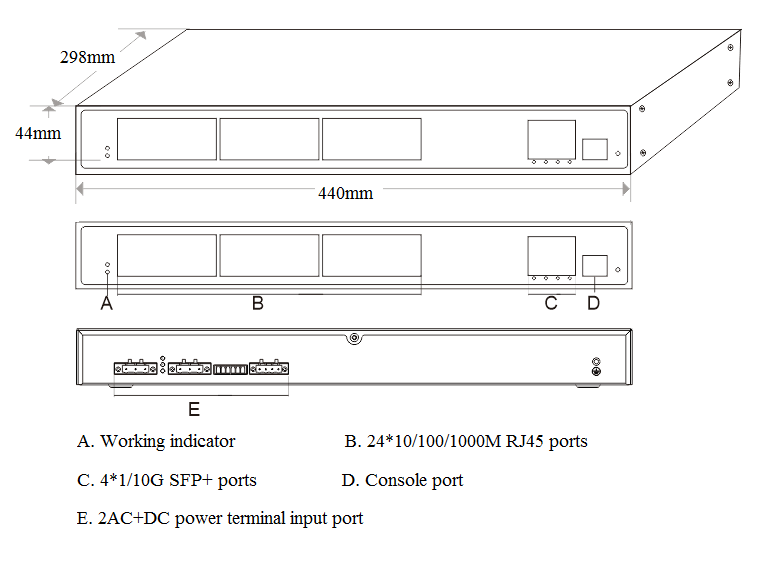

DIMENSION
![28-port L3 managed industrial Ethernet switch?industrial switch?managed industrial switch](https://www.onvcom.com/Uploads/202302/63f431571a582.png)
