OVERVIEW
The 4U Chassis can accommodate a combination of up to 18pieces 2-4 channels video modules or 9 pieces 5-8 channels video modules. The chassis employs a 110/220 VAC Switch Mode Power Supply(SMPS) design, which reduces the possibility of a single module failure causing a shutdown or a major failure of other modules within the chassis. The high reliability and stability ensures that if one module shuts down, the operation of the other modules remains unimpaired. 0ne or two air-cooling fans are installed inside to further strengthen the superior performance of the system and eliminate the necessity for periodic maintenance. Status information can be read through the LED indicators on the installed modules. All of the modules installed in the chassis are hotswappable, which makes it unnecessary to power-down the chassis when replacing modules.
SPECIFICATIONS
Available Module Slots : 18
Video converters module adapted : 2-8 video or 2-8 video+options
Power in : AC 100 V~260 V
Power out : DC5V 20A
Dimensions:L482.6 ,W313.5,H177 mm ;19 inches 4U
Shipping Weight: 7.4Kg
ENVIRONMENTAL
Construction: Aluminum
MTBF: > 100,000 hours
Operating Temp: -30° C to +50° C
Storage Temp: -40° C to +85° C
Relative Humidity: 0% to 95% (non condensing)

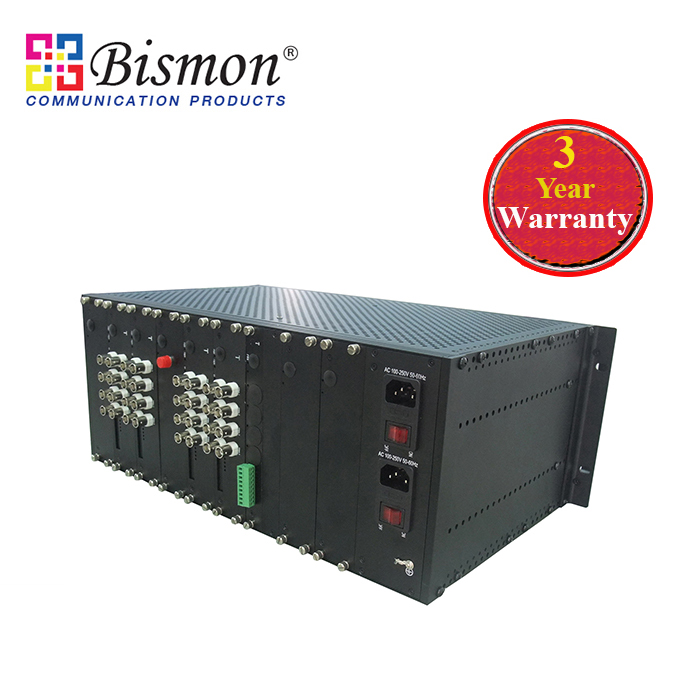

![](http://www.bismon.com/pic_product/pic_gall/B1-1801A4U 18 Slot 4U for Video Converter Module Double Power Supply.jpg)
18 Slot Chassis for Video fiber transmitter card module For Cabinet Rack 19 inch ( สามารถยึดติดตู้ Rack ขนาด 19 นิ้วได้ เพื่อความสะดวกในการจัดการระบบ)
- สามารถติดตั้งในตู้ Rack ขนาด 19" ได้
- สามารถใส่ card ที่ 2-4 Ch Max.ได้สูงสุด 18 Slot
- สามารถใส่ card ที่ 5-8 Ch Max. ได้สูงสุด 9 Slot
- ใช้กับไฟฟ้า 220V ได้
- Power Output : DC 5V 20A
- Dimensions: L: 482.6x W:313.5 x H:177mm
- Weight : 7.4 Kg.
