OVERVIEW

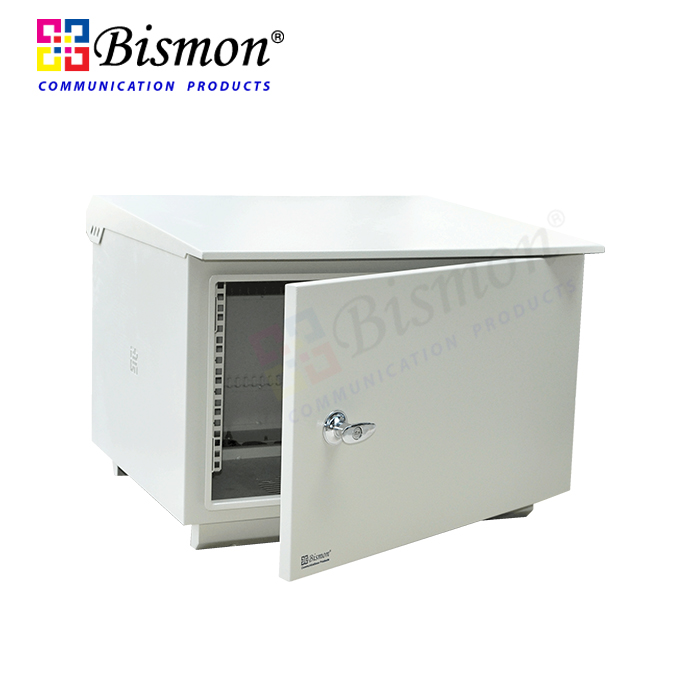

19" Wall Rack 6U Outdoor Cabinet (D:40cm) full set for installing fiber optic solution, can support ODF and optical distribution frame, Din-rail rack mount 19", Din-rail Wall box fiber optic 12port, Hacking tools like machine bolt, U-Boult, and accessories, FTTH services to the customer request. The high-quality protection weather-proof outdoor cabinet rack style. can be compliant with IP55 standards.

Specification

Brand                                                  Bismon

Model                                                 B1-WM6U-OUT4-F

Equipment Type                                19" Wall rack outdoor (Full set)

Size                                                      409 mm x 600 mm x 400 mm (HighxWidthxDepth)

Standard                                            IP55 standard

Color                                                   Light Grey

Material                                              (EG)-Electro Galvanised Steel

Application                                        The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment

Features                                              • 19-inch support for rack style standard, 6U High

                                                              • One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets” style, not rubber style

                                                              • Double folded gutter at door frame to increase rigidity and prevents water from entering

                                                              • All screws or nuts made of stainless steel

                                                              • Can support rack mount 1U or 3U patch panel fiber optic max capacity: 6U

                                                              • Can support cable entry 5 port and 2 cable glands EG/PG29

                                                              • Can support cable management inside easy-for-use cable tie lock

                                                              • Can support FAN 2x4inch for air flow, 2 point (Top & Bottom Rack) Max:4 pcs

                                                              • Complete set tools for hanging on pole and support 4 holes for wall type

                                                              • Can support hinges provide 130 deg. door opening

                                                              • Support grounding at the door, side cover, and cabinet frame

                                                              • Surface-finished cabinet with epoxy-polyester coating

Option (Made to order)                    Material: SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinets, Stainless, Aluminum
