OVERVIEW |
|

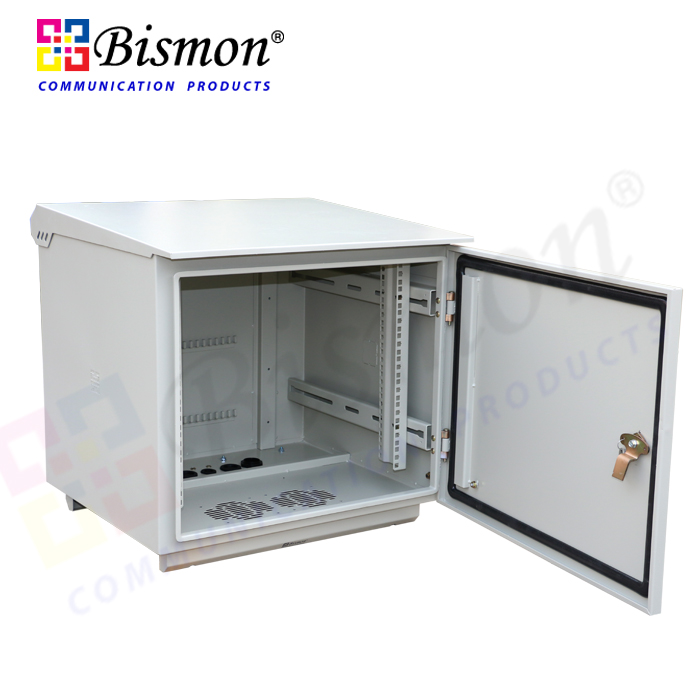

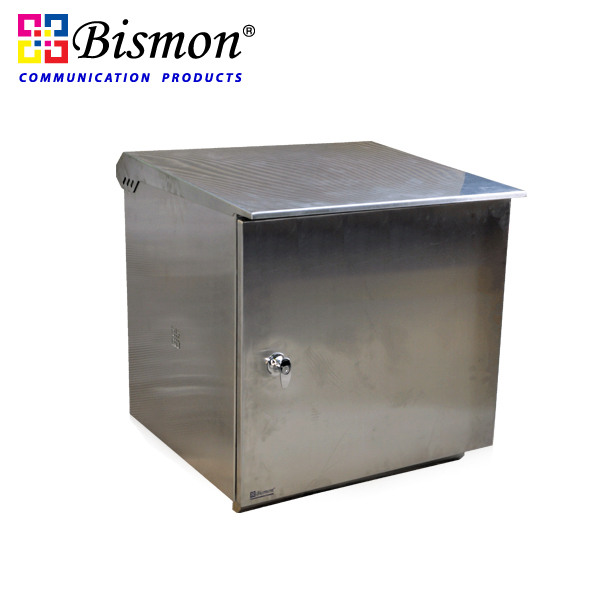

19" Wall Rack 9U Outdoor Cabinet (D:40cm) Made from Stainless Steel. Can support ODF and optical distribution frame, FTTH services to the customers request. The high quality protection weather-proof
outdoor cabinet rack style. can compliant with IP55, IP65 standard. |
Brand |
Bismon |
Model |
B1-WM9U-OUT4ST |
Equipment Type |
Wall rack outdoor |
Size |
543 mm x 600 mm x 400 mm (HighxWidthxDepth) |
Standard |
IP55 standard |
Color |
|
Material |
stainless steel high grade |
Application |
The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifers, broadband equipment |
Features |
• 19 inch support for rack style standard, 9U High |
|
• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from |
|
“ CNC Foam Gaskets” style, not rubber style |
|
• Double folded gutter at door frame to increase rigidity and prevents water from enter |
|
• All screw or nut made of stainless steel |
|
• Can support rack mount 1U or 3U patch panel fiber optic max capacity: 9U |
|
• Can support cable entry 5 port and 2 cable grands EG/PG29 |
|
• Can support cable management inside easy for use cable tie lock |
|
• Can support FAN 2x4inch for air flow, 2 point (Top & Bottom Rack) Max:4 pcs |
|
• Complete set tools for hang on pole and support 4 hole for wall type |
|
• Can support hinges provide 130 deg. door opening |
|
• Support grounding at door, side cover and cabinet frame |
|
• Surface finished cabinet with epoxy polyester coating |
Option (Made to order) |
Material :SPCC Steel sheet 2.0mm , hot dipped galvanized for all wall rack cabinet , Stainless, Aluminum |
- Special material stainless steel - 19 inch mounting rails - 9U High for equipment - CNC Foam Gasket sealing protect from outside waterproof - Compliant IP55, IP65 - Free mounting brackets arm for wall, hang on, on the lamp post - Cable management fix point in side entry of cable - All screw, nut, key made of stainless steel - Support FAN 4inch max:4 pcs. two point (Top and Down)
