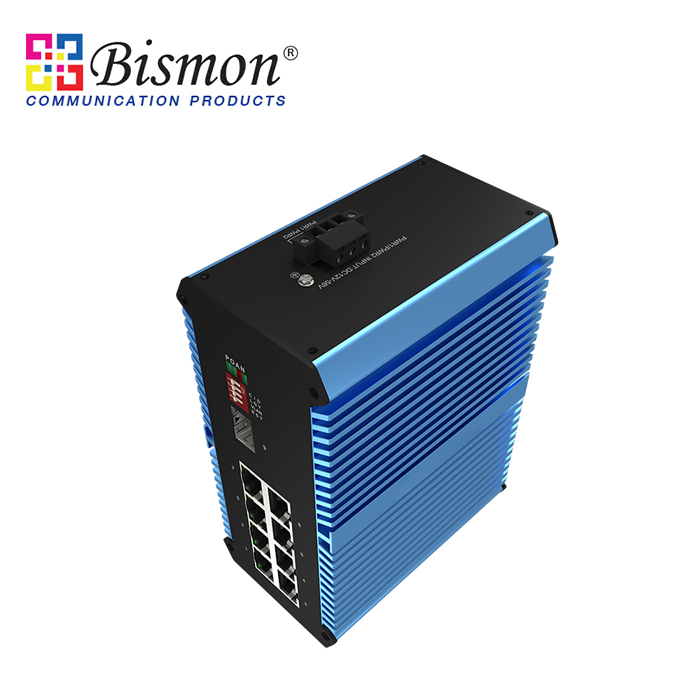

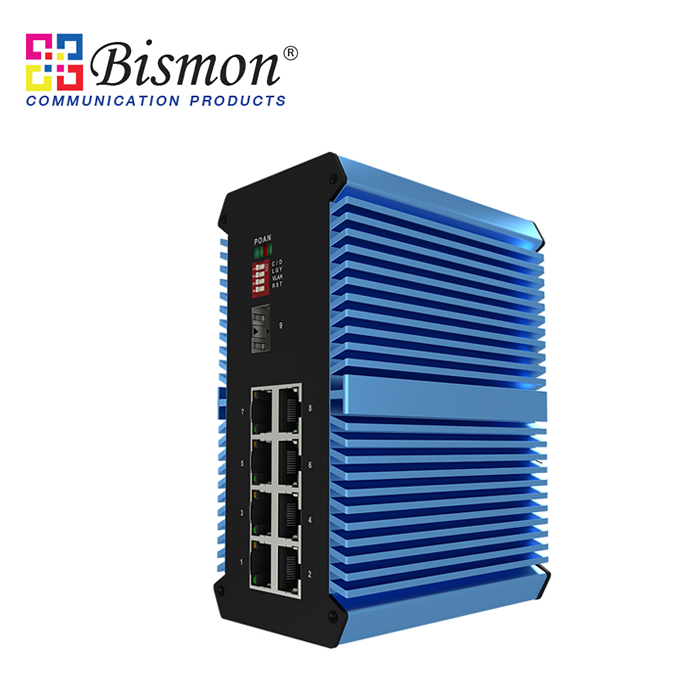

Specification

Provider Mode Ports

Fixed port 1*1000 Base-X, 8*10/100/1000 Base-T

Power interface Phoenix terminal, redundant dual power supply

LED Indicators PWR, OPT, NMC, ALM

DIP Switch

1 C/D Remote PD Reset

2 LGY Stand/Non-standard PoE Mode

3 VLAN Port Isolation

4 RST Reset

Cable Type & Transmission Distance

Twisted-pair 0-100m (CAT5e, CAT6)

Monomode optical fiber 20/40/60/80/100KM

Multimode (optical) fiber 550m

Network Topology

Ring topology Unsupported

Star topology Support

Bus topology Support

Tree Topology Support

Hybrid topology Support

Electrical Specifications

Input voltage DC12~58V

Total Power consumption <6W

Voltage Alarm Support

Layer 2 Switching

Switching capacity       26G

Packet forwarding rate    19.34Mpps

MAC address table    16K

Buffer 2M

Forwarding delay <5us

MDX/MIDX    Support

Flow control    Support

Jumbo Frame Support 10Kbytes

WatchDog Support

Port Isolation Support

Environment

Operating temperature -40°C ~+75°C    The device is tested for 8 hours at temperatures in 85°C

Storage temperature -40°C ~+85°C

Relative humidity    5%~95% non-condensing

Thermal methods Fanless, natural cooling

MTBF 100,000 hours

Mechanical Dimensions

Product size    143X104X65mm

Installation Method DIN-rail

Weight    0.75KG around

EMC & Ingress Protection

IP Level    IP50

Surge protection of Power    IEC 61000-4-5   Level X(10KV/10KV) (8/20us)

Surge protection of Ethernet port IEC 61000-4-5   Level X (6KV/4KV) (10/700us)

RS IEC 61000-4-3   Level 3 (10V/m)

EFI IEC 61000-4-4   Level 3 (1V/2V)

CS IEC 61000-4-6   Level 3 (10V/m)

PFMF IEC 61000-4-8   Level 4 (30A/m)

DIP IEC 61000-4-11   Level 3 (10V)

ESD IEC 61000-4-2   Level 4 (8K/15K)

Free fall    0.5m

Authentication

CCC, CE, FCC, RoHS

Accessories

Device, Terminals, Specification, Certificate, power adapter (optional)
