OVERVIEW

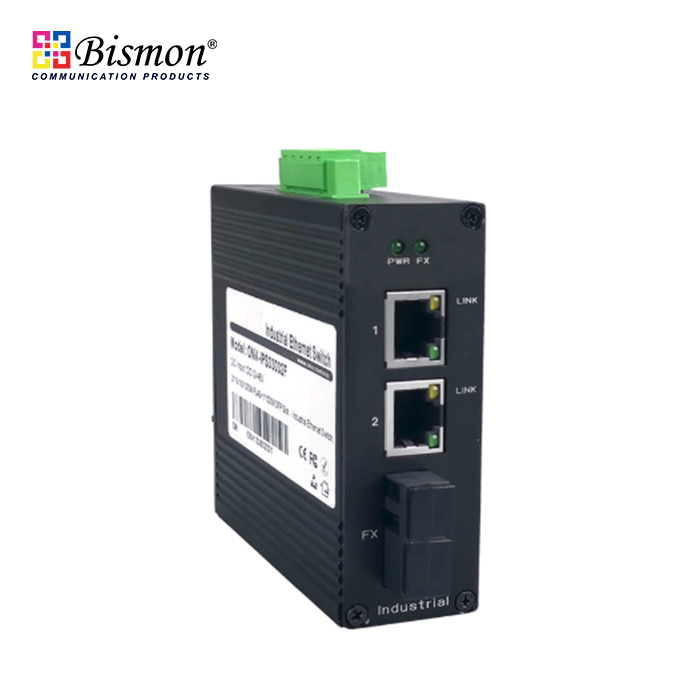

The B1-IPS33032FS is a full gigabit industrial Ethernet fiber switch independently developed by ONV. It has 2*10/100/1000Base-T RJ45 ports and 1*1000Base-X SC single-mode dual-fiber optical module (optional single-mode/multi-mode, single-fiber/dual-fiber optical module). Each port can support full line-rate forwarding.
B1-IPS33032FS industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, support for dual redundant power supply, low power consumption and fanless cooling technology, MTBF average trouble-free working time up to 35 years, 3-year warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.
FEATURE
Gigabit line speed access, Gigabit optical port uplink
- Support Gigabit Ethernet port and Gigabit SC optical port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Stable and reliable
- Low power consumption, No fan, aluminum shell.
- CCC,CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33021FS
|
B1-IPS33032FS
|
|
Interface Characteristics
|
|
Fixed Port
|
1*10/100/1000Base-T RJ45 port (Data)
1*1000Base-X single-mode dual-fiber SC fiber port(Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
|
2*10/100/1000Base-T RJ45 ports (Data)
1*1000Base-X single-mode dual-fiber SC fiber port(Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
|
|
Ethernet Port
|
10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
|
|
Fiber Port
|
Default Gigabit single-mode dual-fiber SC optical module (optional single-mode single-fiber/multi-mode dual-fiber optical module)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0 ~ 500m, Single-mode: 1310nm/0 ~ 40km, 1550nm/ 0 ~ 120km.
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IIEEE802.3x
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
Switching Capacity
|
10Gbps
|
|
Forwarding
Rate@64byte
|
2.98Mpps
|
4.46Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link (Yellow)
|
|
Power Supply
|
|
Power Consumption
|
Standby<3W, Full load<5W
|
Standby<4W, Full load<6W
|
|
Operating Voltage
|
12-57VDC, 5P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP / Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
92*88*32mm
|
|
Net /Gross Weight
|
<0.4kg / <0.6kg
|
|
Installation
|
Desktop, 35mm DIN rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(Shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class B
IEC61000-6-2(Common Industrial Standard)
|
|
Mechanical Properties
|
IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
