OVERVIEW |
|

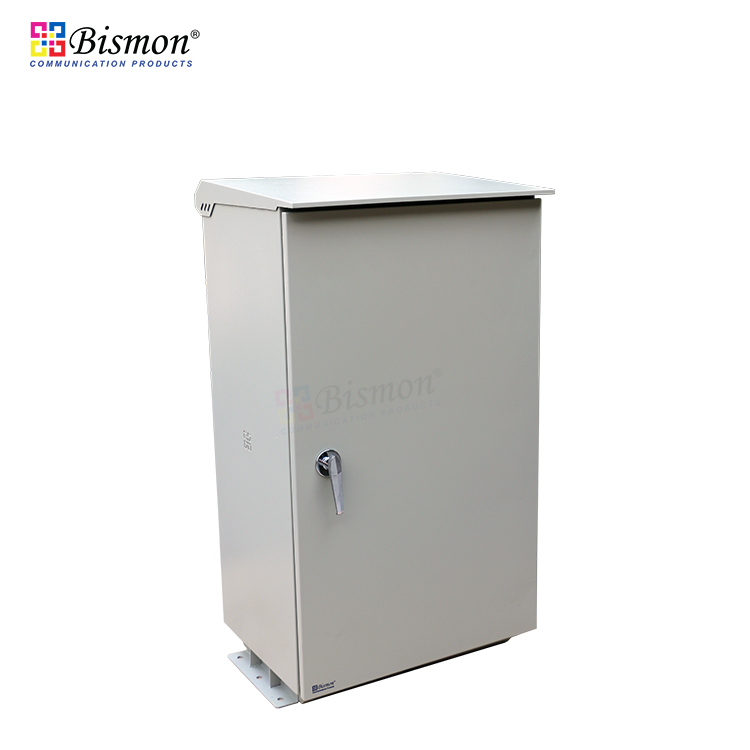

20U Wall Rack Outdoor 19inch (D:60cm)Use for Equipment active device 19" standard. The Cabinet is compliant with IP55 (Dust and water protection) or IP65 (Option) standard. One door lockable and dust, made from "CNC" Foam Gaskets" style high-quality grade for waterproof and dust |
Brand |
Bismon |
Model |
B1-WM6U-OUT6 |
Equipment Type |
Wall rack outdoor |
Size |
1022 mm x 600 mm x 600 mm (HighxWidthxDepth) |
Standard |
Compliant IP55, IP65 |
Color |
|
Material |
(EG)-Electro Galvanised Steel and Thickness 1.2mm |
Application |
The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment |
Features |
• 19-inch support for rack style standard, 20U High with Roof protect UV and rain |
|

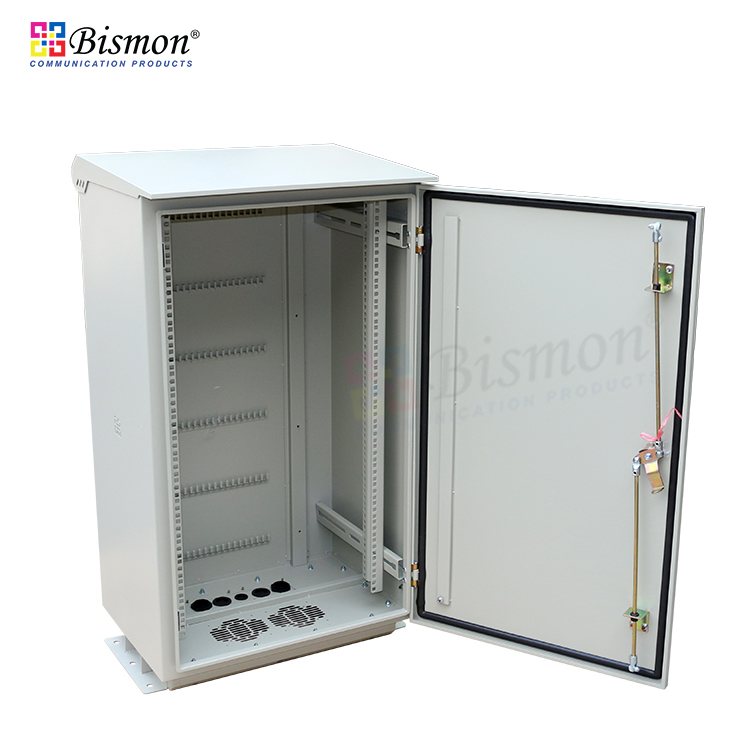

• One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from “ CNC Foam Gaskets” |
|
style, not rubber style |
|
• Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened |
|
• All screw or nut made of stainless steel |
|
• Can support patch panel 1U-3U fiber optic max capacity: 672 Core support for ST/SC/FC/LC |
|

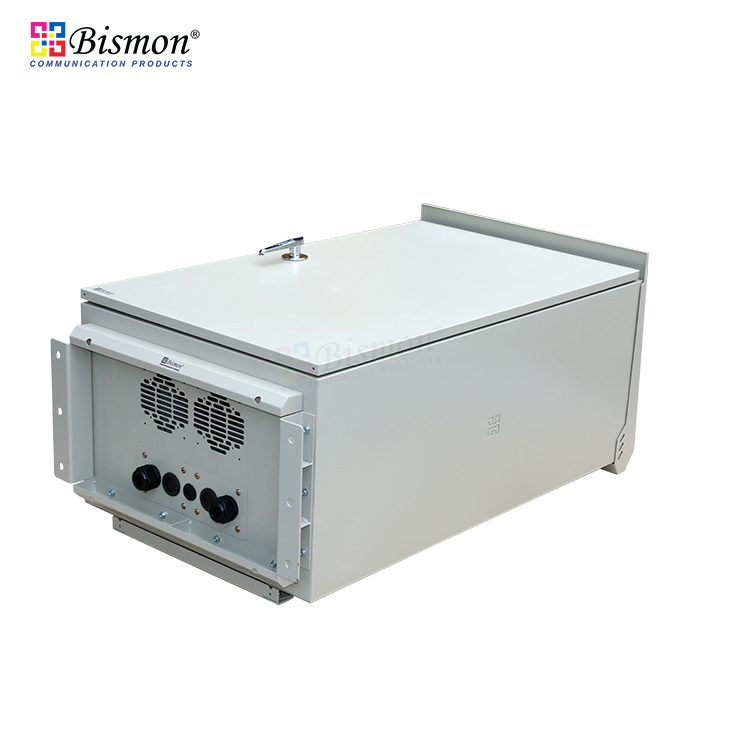

• Can support cable entry 5 port and 2 cable glands EG/PG29 |
|
• Can support cable management inside easy for use cable tie lock |
|
• Can support FAN 2x4” for airflow, 2 points (Top & Bottom Rack) Max:4 pcs, Option: Filter |
|

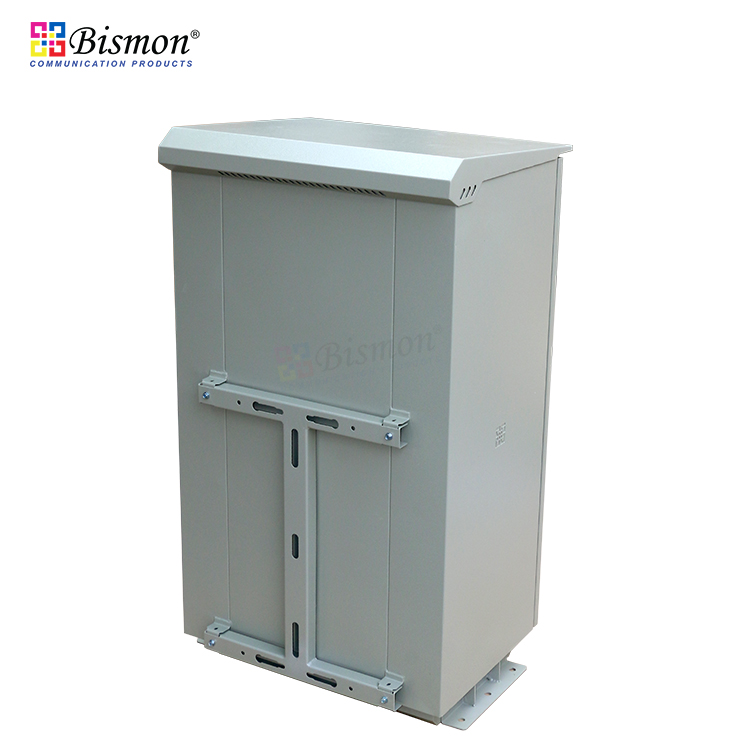

• Complete set tools for hang on pole and support 4 hole for wall type |
|
• Can support hinges provide 130 deg. door opening |
|
• Normally order material made from (EG)-Electro Galvanised Steel, Anti-rust steel |
|
• Surface finished color cabinet with epoxy-polyester coating Anti-rust, by Electro-Static |
Option (Made to order) |
Material :SPCC Steel sheet 2.0mm , hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum |
- 19" Standard Rack - 20U High Cabinet Rack - Deep: 60 cm - Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened. - All screw or nut made of stainless steel - Hang on Electric Squre Pole in Thailand - Hang on Wall type - Made from color outdoor type epoxy polyester coating - Cable Grand lock cable EG/PG29 - Support FAN 2x4" 2 point TOP & Bottom rack - The front door is waterproof, humidity and dustproof sealing made from "CNC foam Gaskets", good adhesion to coated surfaces, UL 50. - Can support hinges provide 130 deg. door opening service - Material made from (EG) Electro Galvanized Steel - Dimension: 1022mmx600x400mm) HxWxD
