OVERVIEW

 (Complete set: SC/APC Pigtail OD:0.9mm 12 color+SC/APC adapter)

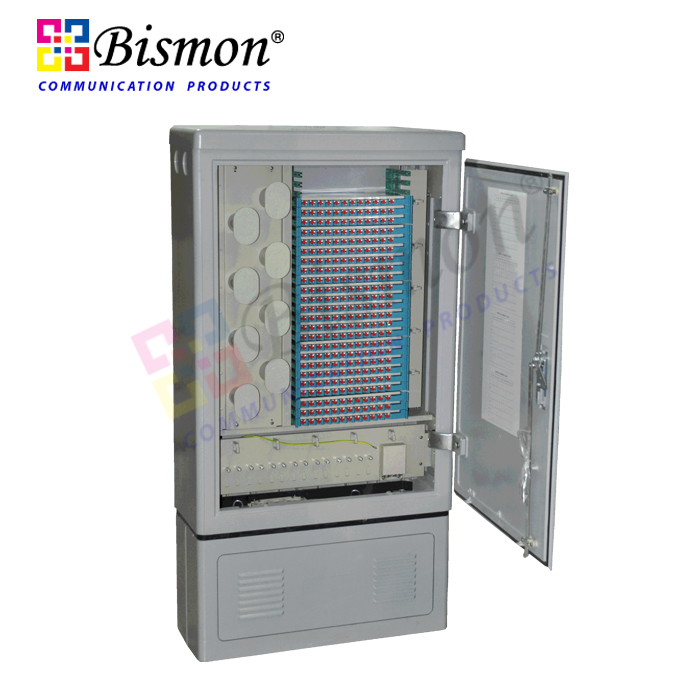

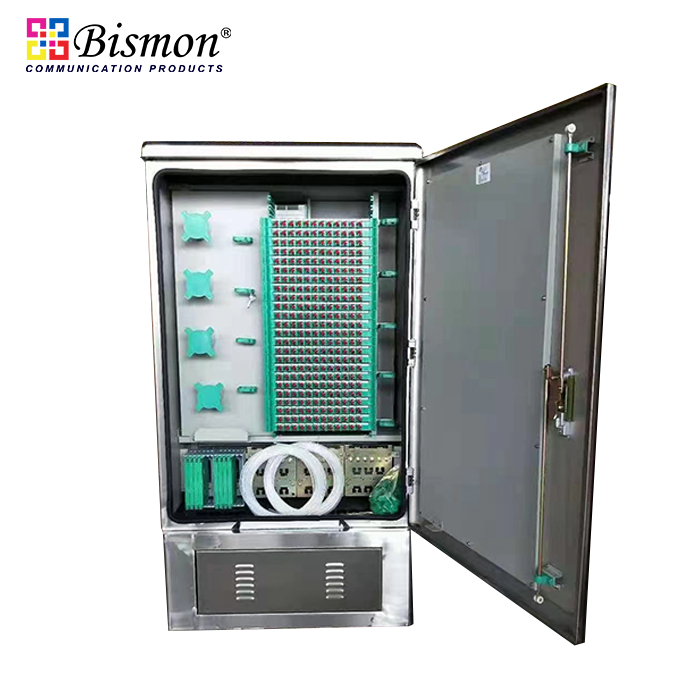

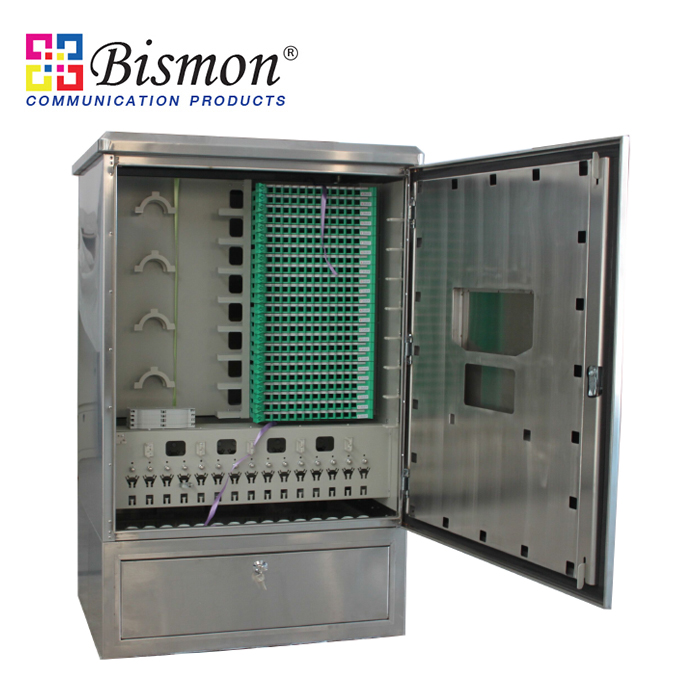

Cabinet Outdoor 288 Core Stainless steel fiber optic can be applied in active link with trunk optical cables and cable distributions, accomplishing fusion, storage, distribution, and dispatch for the cables.

Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material (Stainless Steel), with protection reaching IP65 grade. Adapting various bad weather conditions, with reliable sealing, water-proof and dampproof.

Feature

•  Cabinets are made of double side wiredrawing stainless steel, with the protection grade reaching IP65. Modular design

•  Flexible configuration and quick installation

•  Suitable for ribbon and no ribbon optic fibers

•  30 °oblique installation of adapters, preventing eyes from laser's hurts and ensuring the fiber bending radius

•  Suitable for inserting installation of SC, FC,ST(additional flange) adapters

•  The bending radii are ensured to be more than 40mm in anyplace. Reliable fiber introduction, grounding and fixing

•  Swap convenient

•  Suitable fiber integrated and optical fibers

•  A special suspension mechanism is designed to enable ground mounted, wall-mounted or aerial for users’ requirement.

Applications

•  Capacity 288 core

•  Dimension 750x1300x300mm

•  Available Adaptor FC,SC,LC(576 core)

•  Material 201/304 Stainless Steel

•  Net weight 80kgs

•  Environmental temperature:-25~+60.

•  Transportation Temperature: -40~+60.
