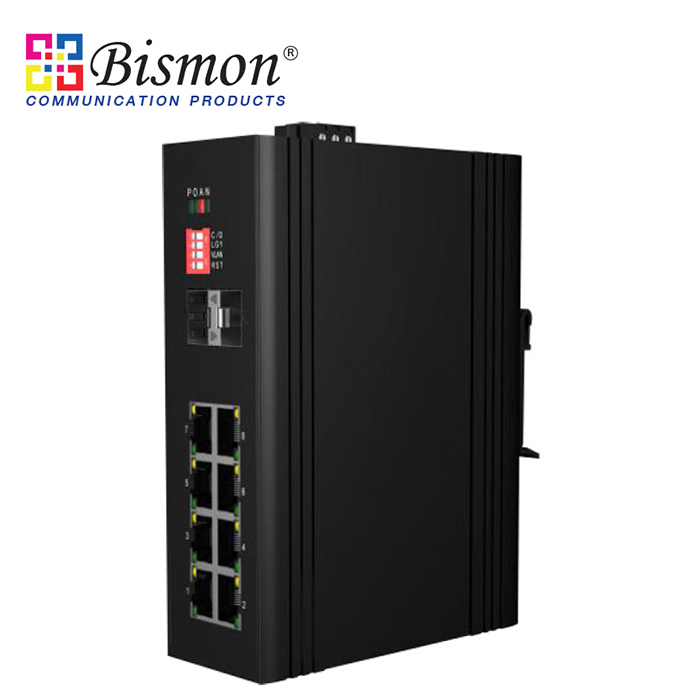

2x1000Base-X to 8x10/100/1000Base-T Industrial Switch Unmanaged
Specification
Fixed port 2*1000 Base-X? 8*10/100/1000Base-T
Power interface Phoenix terminal, redundant dual power supply
LED Indicators PWR?OPT, NMC?ALM
Reset DIP switch reset
Cable type & Transmission distance
Twisted-pair 0-100 (CAT5e,CAT6)
Monomode optical fiber 20/40/60/80/100KM
Multimode (optical) fiber 550m
Network Topology
Ring topology Unsupported
Star topology Support
Bus topology Support
Tree Topology Support
Hybrid topology Support
Electrical Specifications
Input voltage DC12-58V(Non-PoE), DC48~58V(PoE)
Total Power consumption Non PoE<6W;PoE<246W<6W
Voltage Alarm Support
PoE (Optional)
PoE port 1~8
PoE Protocol 802.3AF ,802.3AT
PoE Pin Assignment 1,2,3,6
PoE Mode Standards and non-standards are support optional
Remote PD Reset Support Optional
Layer 2 Switching
Switching capacity 26G
Packet forwarding rate 19.36Mpps
MAC address table 16K
Buffer 2M
Forwarding delay <5us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 10Kbytes
WatchDog Support
Reset Support
Port Isolation Support
Environment
Operating temperature -40C~+75C
The device is tested for4 hours at temperatures in 85C
Storage temperature -40C~+85C
Relative humidity 5%~95% non-condensing
Thermal methods Fan-free,natural cooling
MTBF 100,000 hours
Mechanical Dimensions
Product size 143X104X48mm
Installation Method DIN rail
Weight 0.5KG around
EMC&INGRESS PROTECTION
IP Level IP40
Surge protection of Power IEC 61000-4-5 Level X (6KV/6KV) (8/20us)
Surge protection of Ethernet port IEC 61000-4-5 Level X (4KV/4KV) (10/700us)
RS IEC 61000-4-3 Level 3 (10V/m)
EFI IEC 61000-4-4 Level 3 (1V/2V)
CS IEC 61000-4-6 Level 3 (10V/m)
PFMF IEC 61000-4-8 Level 4 (30A/m)
DIP IEC 61000-4-11 Level 3 (10V)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free fall 0.5m
Authentication
Authentication CCC, CE, FCC, RoHS
Accessories
Accessories Device, Terminals, Specification, Certificate, power adapter(optional)
