OVERVIEW

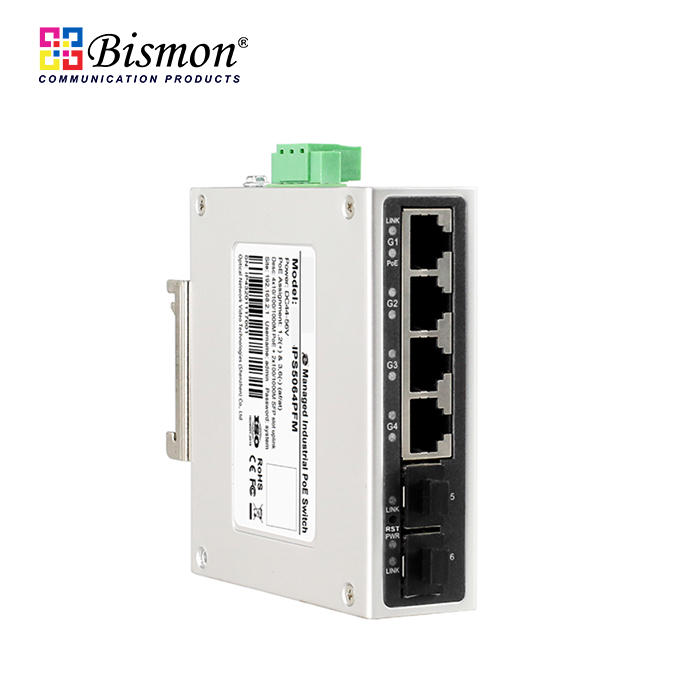

The B1-IPS5064FM is a Gigabit Easy managed industrial Ethernet fiber switch independently developed by ONV. It has 4*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X uplink SFP fiber ports. Each port can support wire-speed forwarding.
The B1-IPS5064FM can support Web management, NMS management platform, and mobile APP cloud platform management, which can realize functions such as security network topology management, link aggregation, port management, port mirroring, and remote operation and maintenance. The switch has high reliability, easy installation and maintenance, a fast switching function, and multiple access ports, which are suitable for access to LAN devices of various scales. It is suitable for intelligent transportation, rail transportation, electric power industry, mining, petroleum, shipping, metallurgy green energy construction, and other industrial scenarios to build an economical, efficient, stable, and reliable communication network.
FEATURE
Gigabit access, uplink SFP fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Extreme Optimization, minimalist application
- Real-time fault alarm and fault location.
- Remote upgrade, remote restart, and factory reset.
- Local platform, cloud platform, and mobile APP operation and maintenance management.
- Visual network topology management, VLAN division, port control, and switching capacity management.
- Practical network management functions are retained according to industry application requirements, and network deployment and centralized operation and maintenance can be quickly realized through the operation and maintenance platform.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and L/A.
- Low power consumption, no fan, Aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS5064FM
|
|
Interface Characteristics
|
|
Fixed Port
|
4*10/100/1000Base-T RJ45 ports (Data)
2*100/1000Base-X uplink SFP ports (Data)
2 sets V+, V- redundant DC power port (3P phoenix terminal)
|
|
Ethernet Port
|
Port 1-4 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
|
|
Chip Parameter
|
|
Network Management Type
|
L2 (Web management, platform management)
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full wire-speed)
|
|
Switching Capacity
|
12Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
8.93Mpps
|
|
MAC
|
2K
|
|
Buffer Memory
|
2M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green)
|
|
Reset Switch
|
Press for 6 seconds and then release to restore to factory settings
Short press twice (1 second interval) to switch to unmanaged state
|
|
Power Supply
|
|
Power Consumption
|
Standby<4W, Full load<8W
|
|
Working Voltage
|
DC12-48V, 3P industrial phoenix terminal, anti-reverse protection
|
|
Power Supply
|
No, optional 12V/24W or 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+75°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
98*88*30mm
|
|
Net /Gross Weight
|
0.25kg/ 0.35kg
|
|
Installation
|
Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP30
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field):1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz
IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV
IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
|
Network Management Feature
|
|
Interface
|
Port status display, Port traffic statistics
Port duplex/negotiation rate configuration
EEE Energy-saving and green Ethernet function
IEEE802.3x flow control configuration (Full-duplex)
|
|
VLAN
|
Port-based IEEE802.1Q VLAN configuration (4K)
|
|
Port Aggregation
|
Static aggregation
|
|
Loop Protection
|
Loop protection function
|
|
Multicast
|
IGMP Snooping v1/v2, Max 256 multicast groups
|
|
Port Mirroring
|
Bidirectional data mirroring based on port
|
|
QoS
|
Diff-Serv QoS, 8*Output queues of each port, 802.1p/DSCP priority mapping, Priority Mark/Remark
|
|
Security
|
Broadcast storm control, Port isolation, Port speed limit
|
|
DHCP
|
DHCP Snooping
|
|
Management
|
Mobile APP operation and maintenance management
One-key recovery, Cable Diagnose, Web Management (https)
ONV-NMS platform management (Local platform/Cloud platform)
|
|
System
|
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Category 5 and above Ethernet cables
TCP/IP, network adapter, and network operating systems (Such as Microsoft Windows, Linux or Mac OS X) are installed on each computer in the network with Category 5 and above Ethernet cables
|
