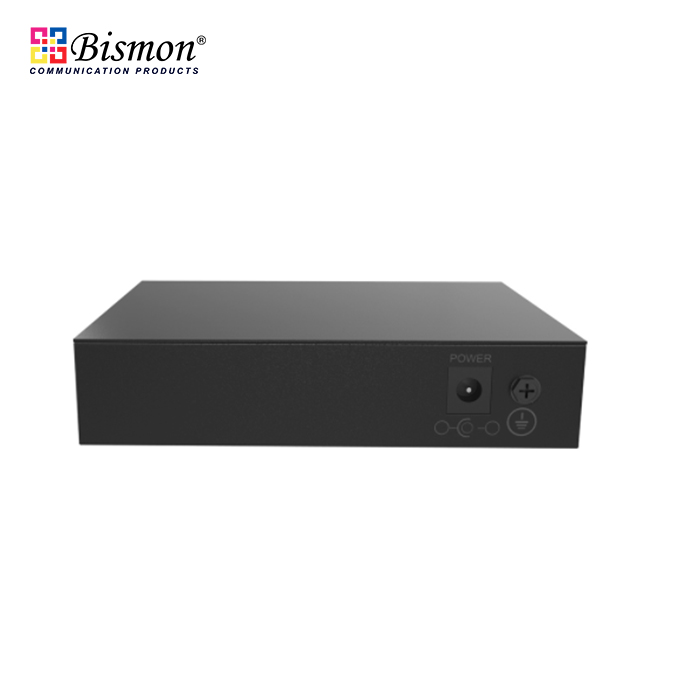

4 Port 10/100/1000M PoE with 2SFP Fiber Switch

Part number : B1-G41F-2SFP

Brand : BISMON

Price : 4,268.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

The B1-G41F-2SFP is a full gigabit PoE fiber switch independently developed by BISMON. It has 4*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-4 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 65W (at-110W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through a network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, park, attraction, supermarket, factory quarter, and small and medium-sized enterprises to form a cost-effective network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Full gigabit access, gigabit SFP port uplink

- All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply function

- 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

- IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable, easy to operate

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Low power consumption, no fan mute design, galvanized steel metal casing.

- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

SPECIFICATION

Model B1-G41F-2SFP

Interface Characteristics

Fixed Port 4*10/100/1000Base-T PoE ports (Data /Power)

2*1000Base-X uplink SFP slot ports (Data)

Ethernet Port Port 1-4 can support 10/100/1000Base-T,auto-sensing, full/half duplex MDI/MDI-X

Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-T: Cat5e or later UTP(≤100 meter)

SFP Slot Port Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

Optical Cable Multi mode: 850nm 0 ~ 550M,

Single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Chip Parameter

Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3x

Forwarding Mode Store and Forward(Full Wire Speed)

Switching Capacity 12Gbps (Non-blocking)

Forwarding Rate@64byte 8.93Mpps

MAC 2K

Buffer Memory 2M
