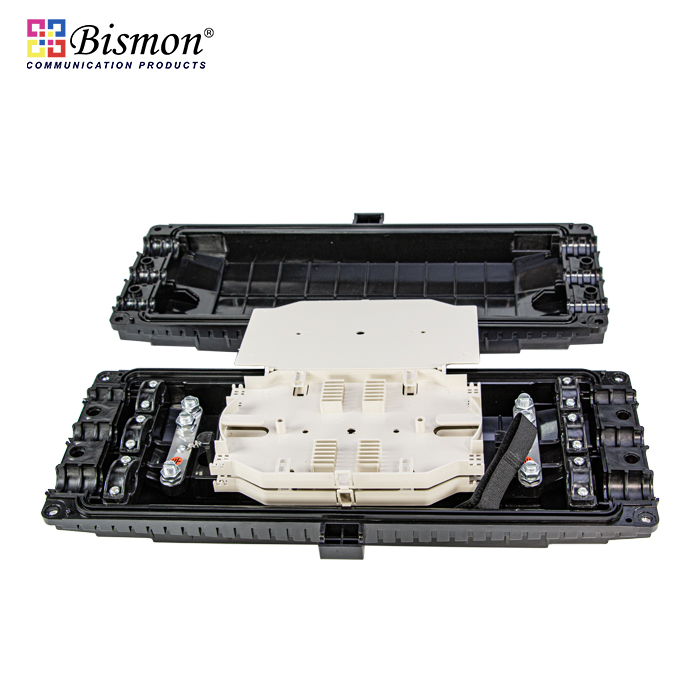

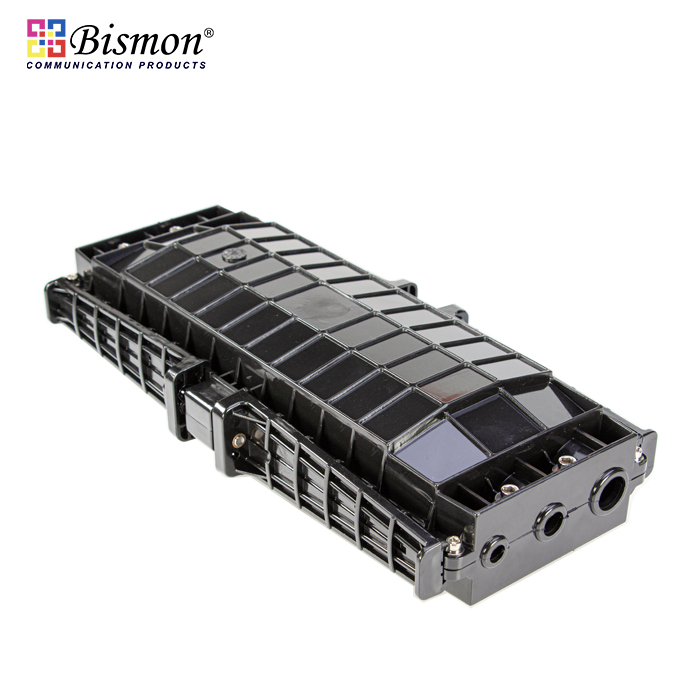

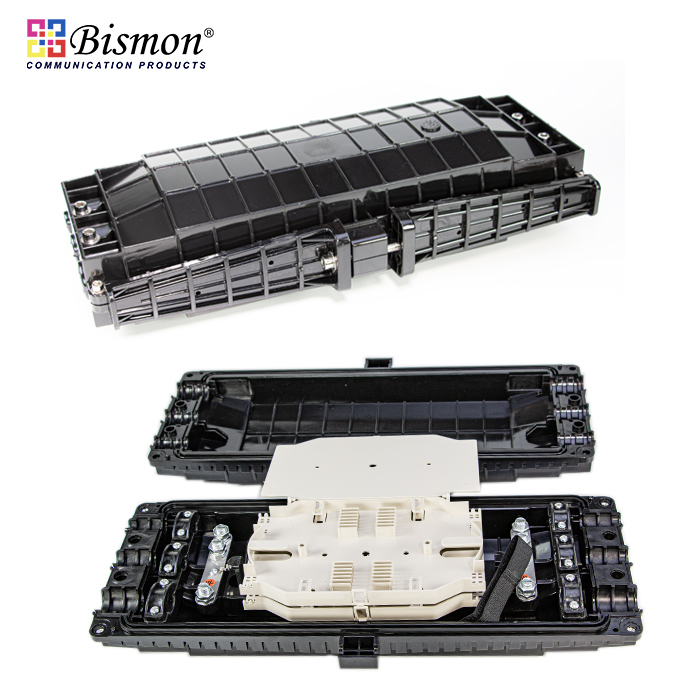

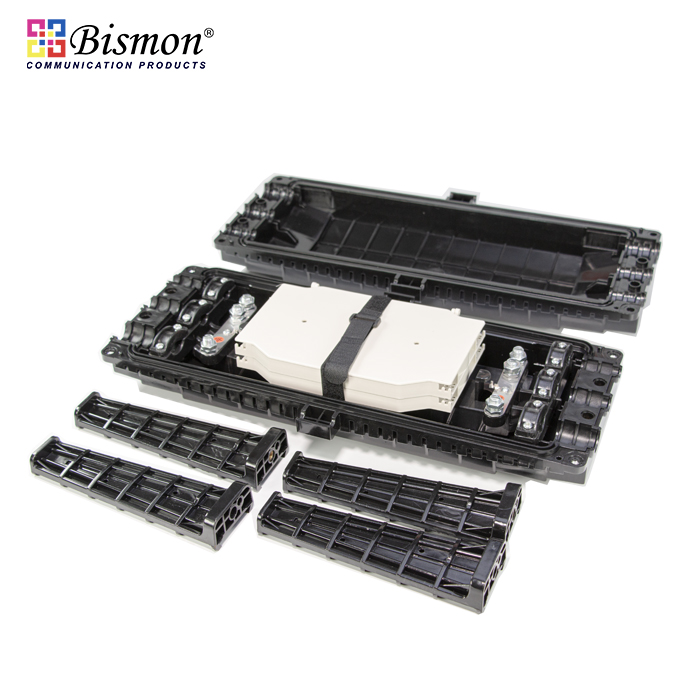

Horizontal (Inline) Fiber Optic Splice Closures are used for the protective connection of two or multiple optical cables and optic fiber distribution. It is one of the commonly used equipments of the user access point. It is used for the outdoor connection between the optical distribution cable and the optical in-room cable. Available for aerial, duct, and direct buried applications.
Features
1. Horizontal / Inline type, 3 in 3 out, a total of 6 ports, suitable for 7~30mm cable
2. Max capacity up to 96cores, with 4 X 24F trays.
3. Fiber Optic Splice Closure main body uses a mechanical seal, which is suitable for Aerial and Pipeline installation.
4. The closure body is designed with buckles around it, which can be opened and used repeatedly without screws, is simple in structure and easy to operate.
5. Endure harsh conditions such as vibration, impact, tensile cable distortion, and strong temperature changes.
6. High-strength engineering plastic shell.
7. It does not require special tools, easy to install and open the duplicate.
8. Size: 440x220x11mm
Application
-Widely used in FTTH access network
-Telecommunication networks
-CATV networks
-Data communications networks
-Local area networks
-Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting.
Specification:
-Name: Fiber Optic Joint Closure 6 Ports Up To 96 Cores
-Model: B1-OPCL48P96
-Dimension: 440X220X11mm
-Max Capacity: 96 Cores (4 X 24 splice tray)
-Cable: Port 3 In 3 Out, 6 Ports
-Cable Diameter: Φ7.0-Φ30.0mm
-Material: PC, PP
-Installation: Aerial, Duct, and Direct buried
-Sealing Structure Sticky Cincture
