OVERVIEW

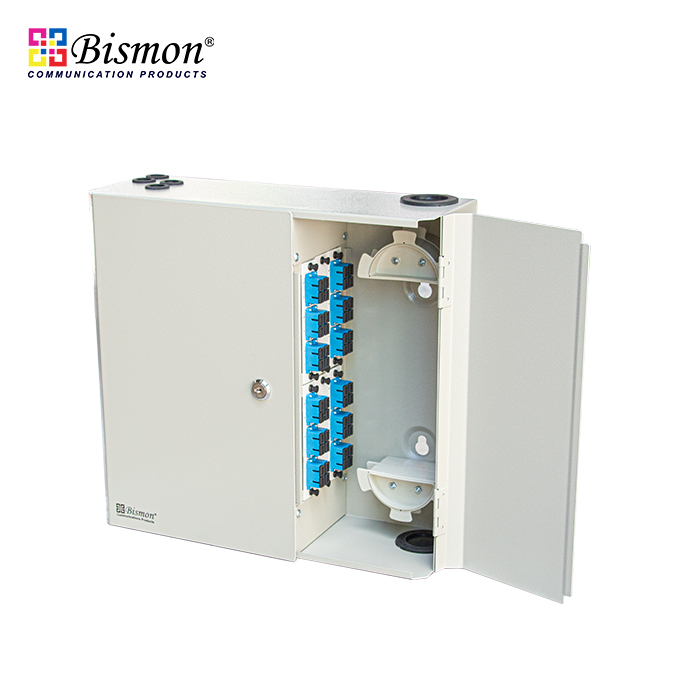

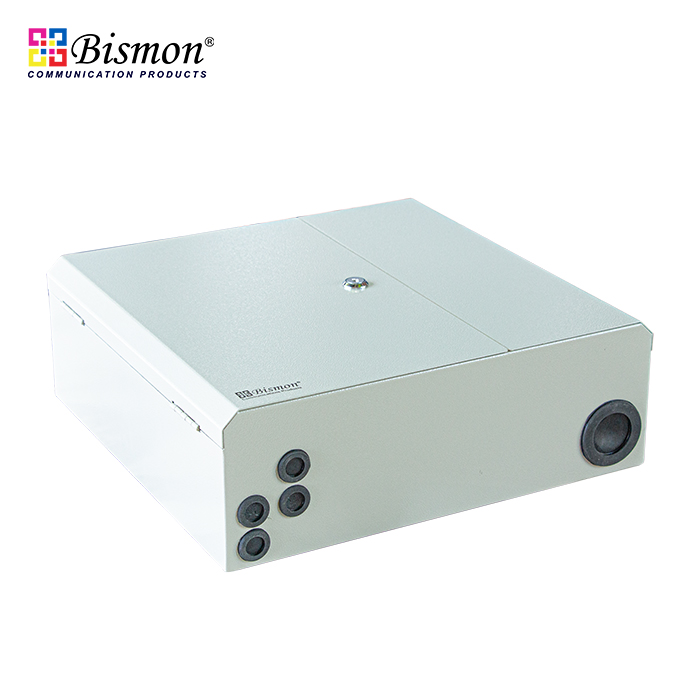

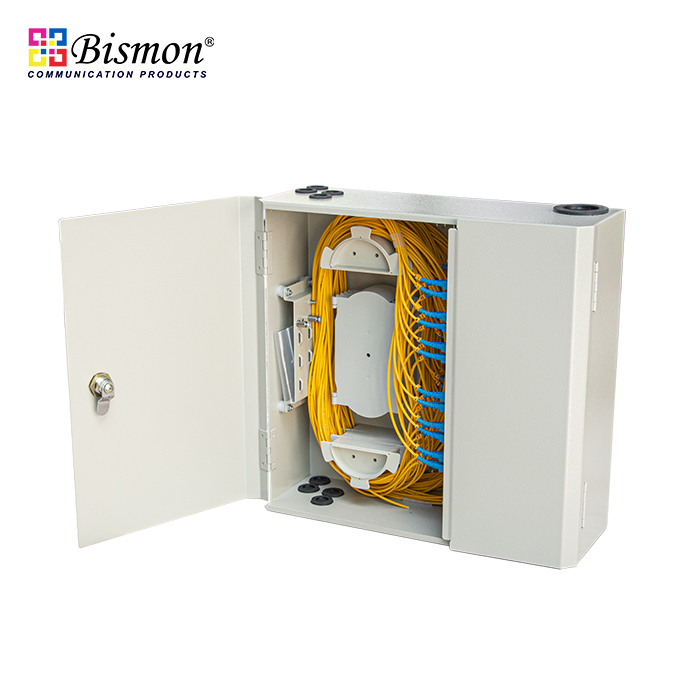

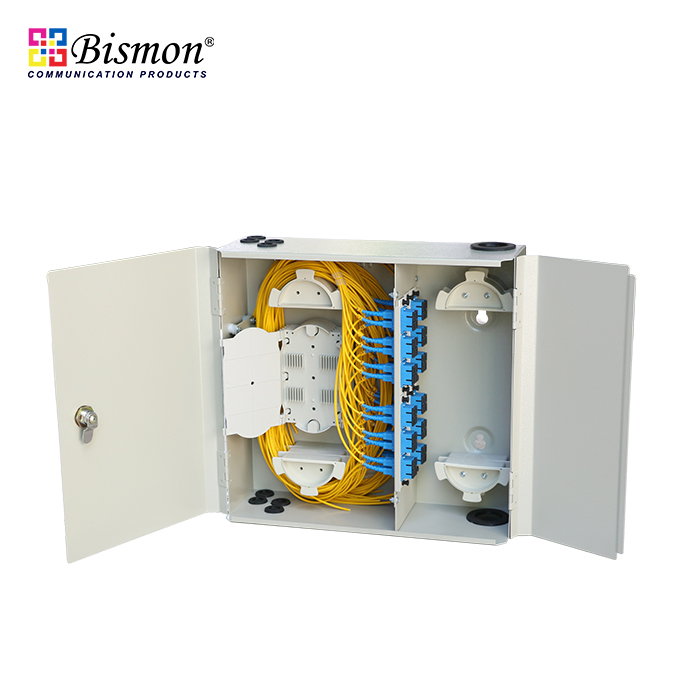

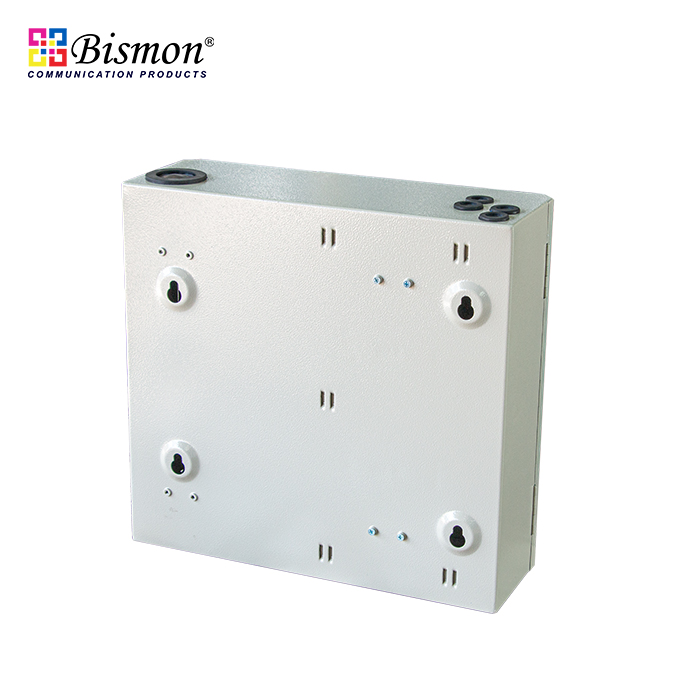

48 Port Wall Mount Enclosure Fiber Optic, Unload adaptor, support for Adaptor plate ST, SC, FC, LC plate, (Single-Plate, Snap-in Plate) Can select for easy applications
Wall-Mount Fiber distribution box provides a Convenient interconnect point between incoming OSP cables and customer premises cabling. The wall mount is designed under indoor conditions. There are two sections, one for splicing area composed splice tray and bending control devices. The other side is the patching area. Features / Benefits
Feature
• Provides easy access for connector FC, SC, ST, LC panel
• Lockable dual doors with optional lock kits and available
• Available for wall and rack 19’’, 21’’
• Includes routing guides for fiber management
• Material: Steel
• Size = 138(D) x 380(H) x 400 (W) MM.
• 24, 48,72 PORT
Applications
• Telecommunication Closets
• Data Centers
• Customer Premise
• Local Area Networks
• Wide Area Networks
• Cabinets
• Central Offices
• CCTV, IP Camera
• Remote Terminals
• PLC, SCADA Control cable
• Material: Steel
• Size = 138(D) x 380(H) x 400 (W) MM.
• 24, 48,72 PORT support ST/SC/FC/LC connector adapter
• Grey color
