OVERVIEW

The B1-POE38048PFM series is a 10G uplink L3 managed PoE switch independently developed by BISMON. It has 48*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Port 1-48 can support IEEE802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 600W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprise.

The B1-POE38048PFM has L3 full network management function, supports IPV4/IPV6 management,static route full line rate forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.

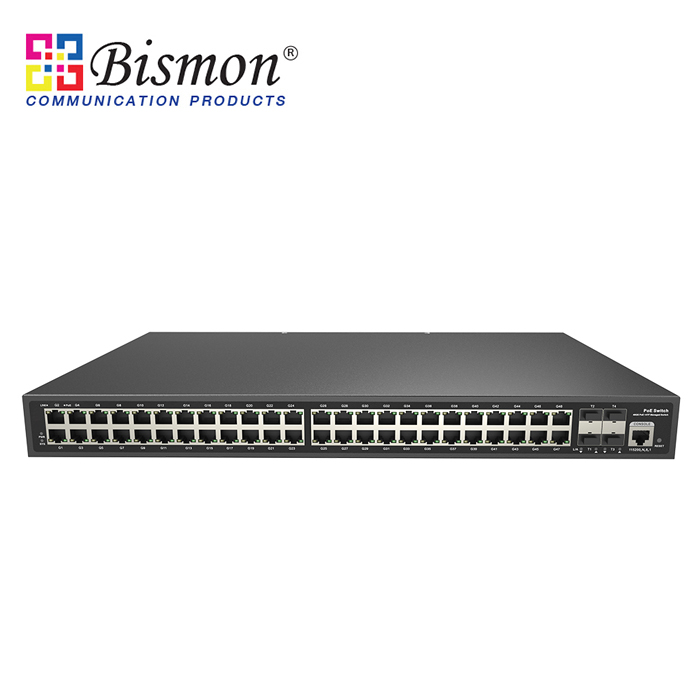

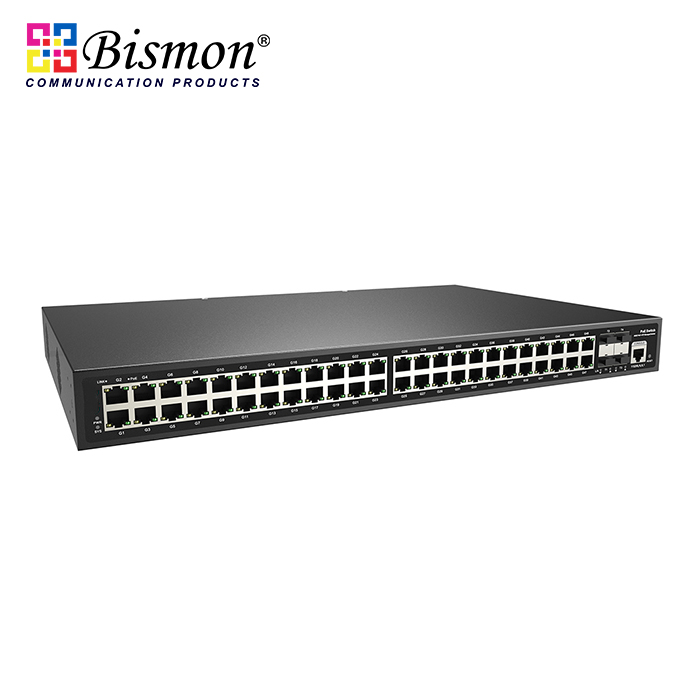

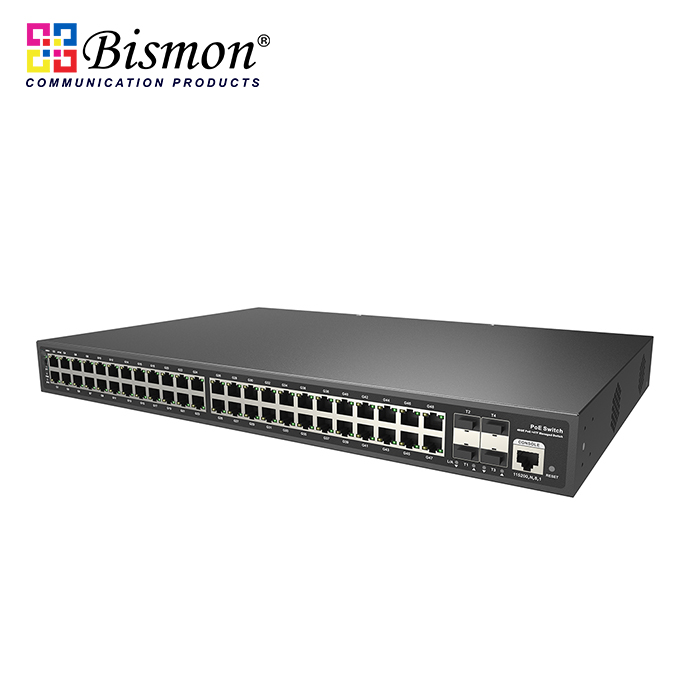

L3 managed PoE switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Port 1-48 can support IEEE802.3af/at PoE standard, Built-in 600W power supply. Support 1U/19 inch rack installation.

FEATURE

Gigabit wire speed access, 10G uplink

  •  All series supports Gigabit Ethernet port and 10G SFP+ uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

  •  Support non-blocking wire-speed forwarding.

  •  Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

  •  48*10/100/1000Base-T RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

  •  IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

  •  Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

  •  PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

Security

  •  802.1X authentication.

  •  Port isolation,Storm control.

  •  IP-MAC-VLAN-Port binding.

Strong business processing capability

  •  IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

  •  QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

  •  ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

  •  IGMP V1/V2 and IGMP Snooping.

  •  ERPS/STP/RSTP/MSTP.

  •  Static and dynamic aggregation.

Stable and reliable

  •  CCC, CE, FCC, RoHS.

  •  Low power consumption, No fan, galvanized steel casing.

  •  Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

  •  The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, PoE.

Easy operation and maintenance management

  •  Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

  •  HTTPS, SSLV3, and SSHV1/V2.

  •  RMON, system log, LLDP, and port traffic statistics.

  •  CPU monitoring, memory monitoring, Ping test, and cable diagnose.
