OVERVIEW

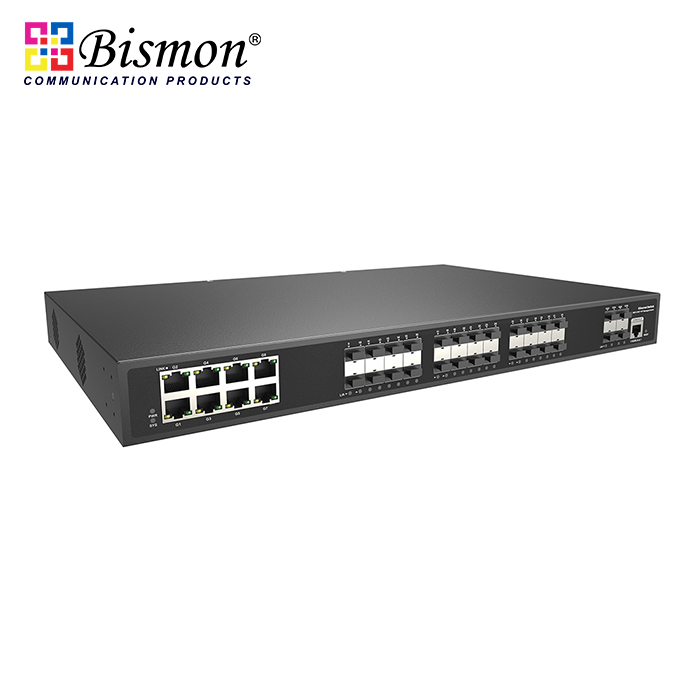

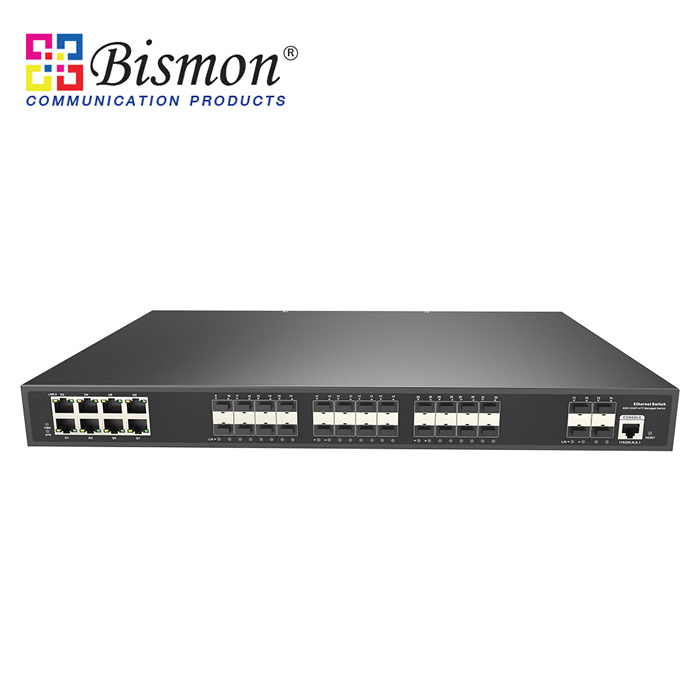

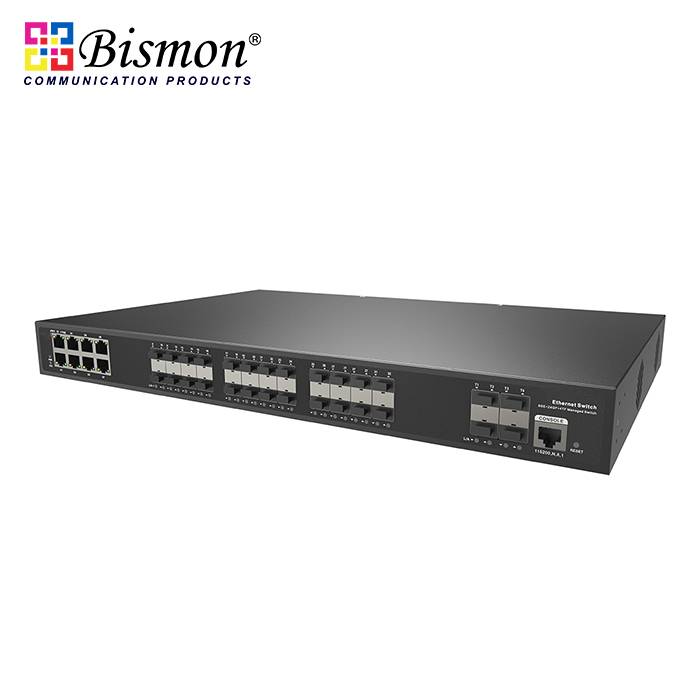

The B1-31368FM is a gigabit uplink managed Ethernet fiber switch independently developed by BISMON. It has 24*10/100M SFP fiber slot ports and 4*100/1000M uplink SFP fiber slot ports and 8*10/100/1000M RJ45 ports. Each port can support wire-speed forwarding.
B1-31368FM adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 10/100M access and uplink ports. It supports complete security protection mechanisms, comprehensive ACL / QoS policies, and flexible VLAN functions. Easy to manage and maintain, meeting users' requirements for easy management of network equipment, high security, and low cost. At the same time, it can meet the multi-channel video intercom, monitoring, and wireless coverage network application environment. It is suitable for hotels, campuses, parks, commercial supermarkets, scenic spots, factory dormitories, and SMB small and medium-sized enterprises to form cost-effective networks.

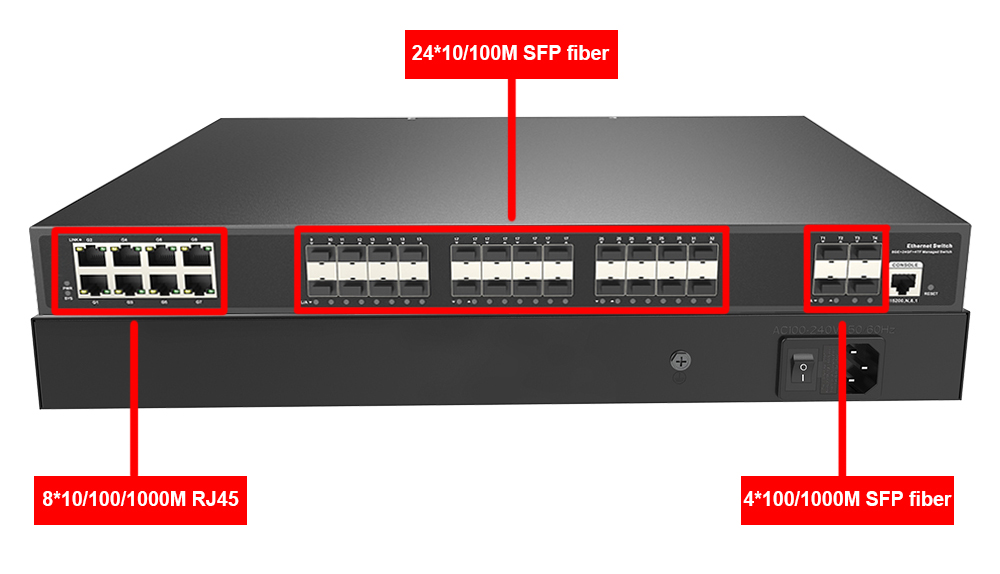

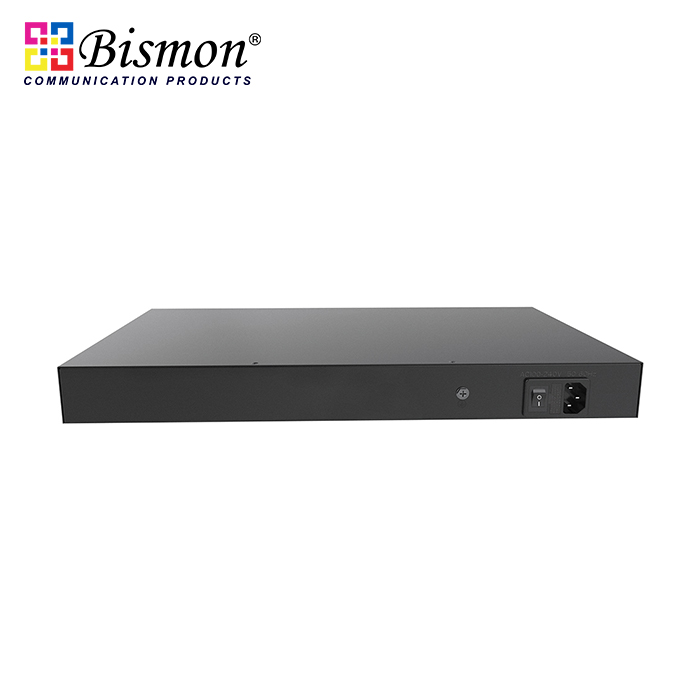

L2 managed Ethernet fiber switch with 8* 10/100/1000M RJ45 ports and 24*100M SFP fiber slot ports and 4*100/1000M SFP slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation.
FEATURE
Multi-fiber port 100M access, gigabit uplink
• All series support “SFP fiber port and gigabit RJ45 port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
• Support non-blocking wire speed forwarding.
• Support full duplex based on IEEE802.3x and half duplex based on backpressure.
Strong business processing capability
• IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.
• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
• IGMP V1/V2 and IGMP Snooping.
• STP/RSTP/MSTP.
• Static and dynamic aggregation.
Security
• 802.1X authentication.
• Port isolation,Storm control.
• IP-MAC-VLAN-Port binding.
Stable and reliable
• CCC,CE, FCC, RoHS.
• Low power consumption, galvanized steel metal casing.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link.
• Self-developed power supply, high redundancy design, providing a long term and stable power output.
Easy operation and maintenance management
• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
• HTTPS, SSLV3, and SSHV1/V2.
• RMON, system log, LLDP, and port traffic statistics.
• CPU monitoring, memory monitoring, Ping test, and cable diagnose.
![](http://www.bismon.com/pic_product/pic_gall/B1-31368FM Gigabit uplink 36-port managed Ethernet fiber switch.jpg)
![](http://www.bismon.com/pic_product/pic_gall/B1-31368FM Gigabit uplink 36-port managed Ethernet fiber switch 2.jpg)
![](http://www.bismon.com/pic_product/pic_gall/B1-31368FM Gigabit uplink 36-port managed Ethernet fiber switch 3.jpg)
![](http://www.bismon.com/pic_product/pic_gall/B1-31368FM Gigabit uplink 36-port managed Ethernet fiber switch 4.jpg)
![](http://www.bismon.com/pic_product/pic_gall/B1-31368FM port.jpg)
