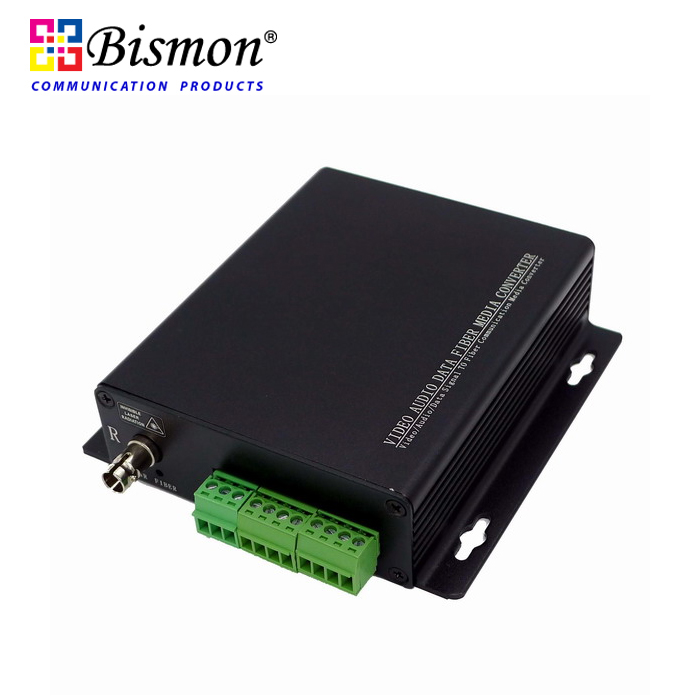

8-CH Audio unbalanced Converter Single fiber 20KM(SM), FC Connector
.jpg)
Part number : B1-8AUDUN-FC
Brand : BISMON
Price : 0.00 Baht
Delivery time : 30 Days
OVERVIEW
8ch Audio to Fiber Optic Audio over Fiber series support 1~32 Channel simplex or 16 channel duplex 24-bit digitally encoded broadcast quality audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
| Specifications | |
| Optical | |
| Optical connector | FC |
| Connector | Standard terminal lead |
| Audio | Unbalanced |
| Number of Channels | 8 Ch |
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -14~ -8dBm / -5~0dBm |
| Optic fiber | 50/125u multimode, 62.5/125u multimode, 9/125u single mode |
| Rx sensitivity | -30dBm |
| Optical connector | FC, ST, SC (optional) |
| Distance | 0~2KM (MM) / 0~20KM ,60KM , 100KM (SM) |
| Audio | |
| Input/output Impedance | 600ohm(unbalance) |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz?29kHz @±3dB |
| SNR | > 70dB |
| Connector | Standard terminal lead |
| Electrical & Mechanical | |
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 3W |
| Stand-Alone Dimensions: | 104mm × 104mm × 28mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.8kg |
| Environmental | |
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
