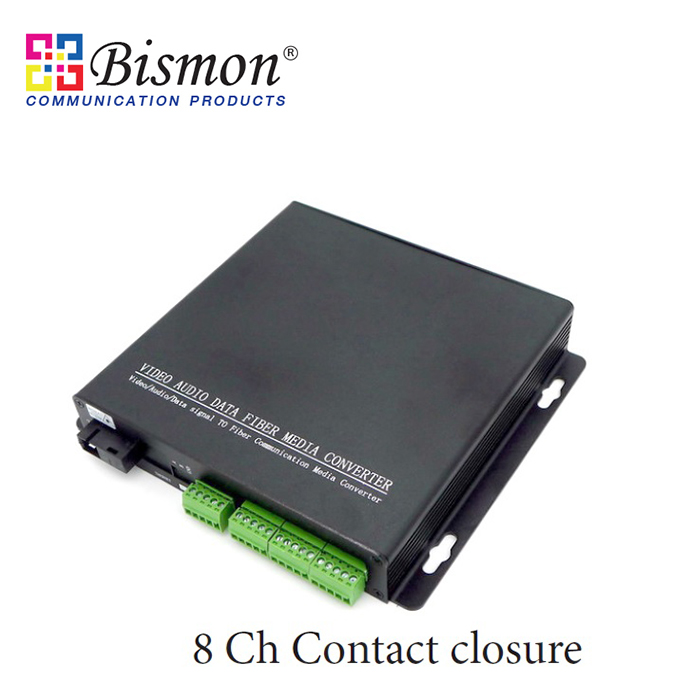

8 CH contact closure to Fiber optic Single fiber 20KM (SM), FC Connector (pair)

Part number : B1-8CHCCSM-FC

Brand : BISMON

Price : 11,668.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 20 Day

Warranty : 1 Year

OVERVIEW

8ch Contact Closure To Fiber support 8 Channels contact closure over one multimode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications with Access Control System, Alarm Event Triggering, Building Automation, and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors are optional.

Plug and Play design ensure adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

• Support Point-to-Point or Daisy-Chain connection

• Dry Contact Closure or TTL data over one fiber

• Multimode Fiber Support for Distances up to 2 km

• Single-Mode Fiber Support for Distances up to 100 km

• LED Status Provide Rapid Indication of Operating Parameters

• No EMI or RFI and no ground loops

• Stand-alone or rack-mount

• Produce according to customer's specifications, providing OEM

SPECIFICATION

Optical
Optical connector	FC
Connector	Standard terminal lead
Wavelength	1310nm&1470nm~1610nm
Output Power	-14~ -8dBm / -5~0dBm
Optic fiber	50/125u multimode, 62.5/125u multimode, 9/125u single mode
Rx sensitivity	-30dBm
Optical connector	FC, ST, SC (optional)
Distance	0~2KM (MM) / 0~100KM (SM)

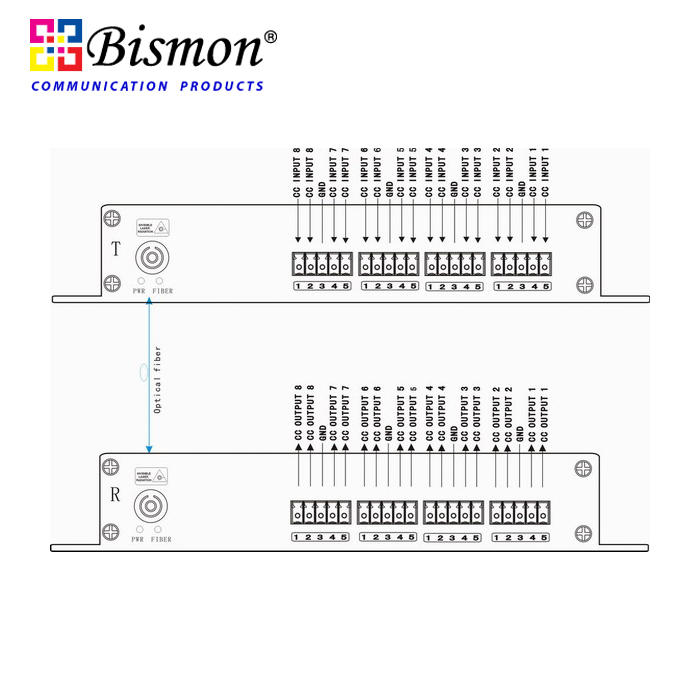

Contact Closure:
Connector	Standard terminal lead
Signal input	alarm, Binary input, support TTL, RS-232/422/485 or passive dry Contact Closure
Signal output	Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output
Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W
Stand-Alone Dimensions:	175mm×154mm×30mm
Shipping Weight:
Shipping Weight:	(include Transmitter & Receiver ) 1.5kg
Environmental
Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

Download Datasheet

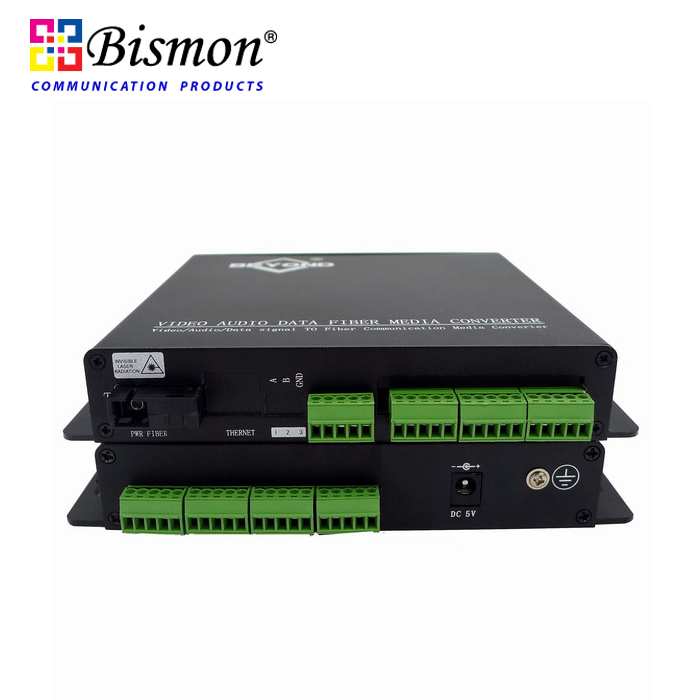

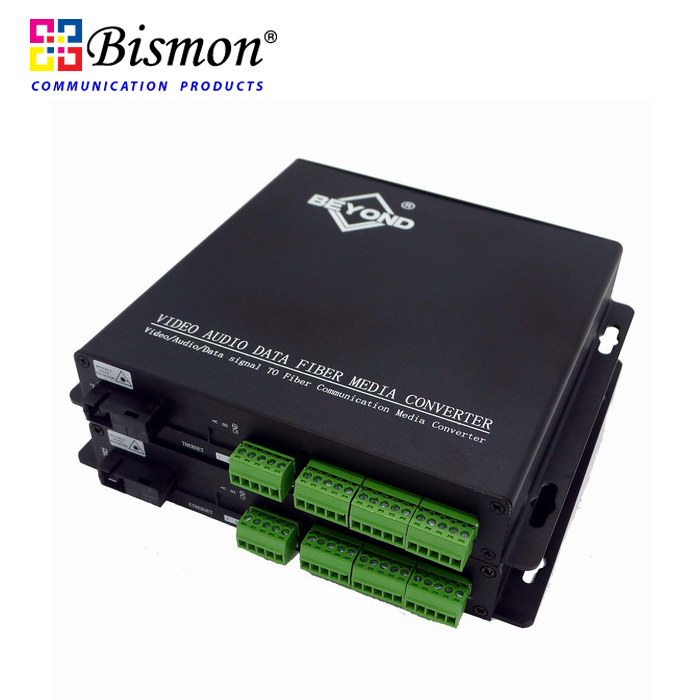

Related Product in - 8 CH Contact Closure
