OVERVIEW

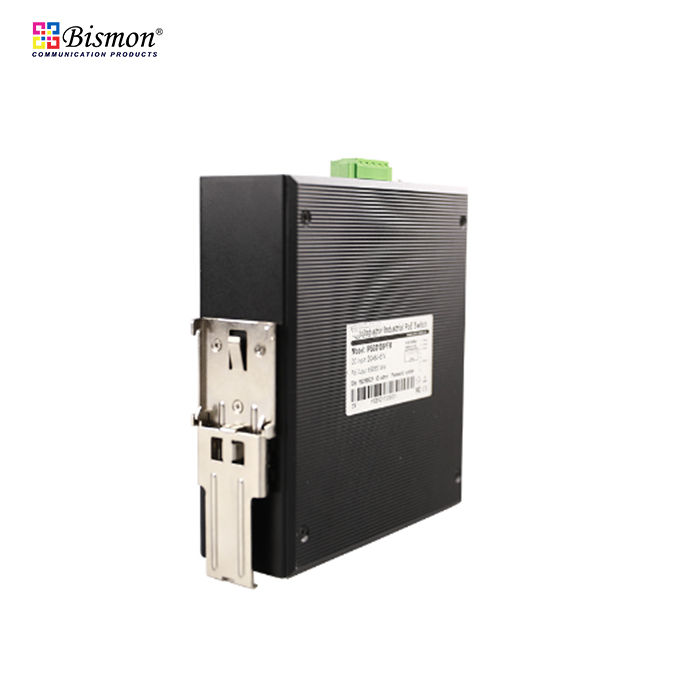

B1-IPS33108PFM is a full Gigabit managed industrial PoE switch independently developed by BISMON. it has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports, port 1-8 can supports IEEE 802.3af/at standard POE power supply, single port POE power up to 30W, and the maximum POE output power is 120W (at-240W). As a POE power supply device, it can automatically detect and identify the electrical equipment that meets the standard and supply power through the cable. It can supply the POE terminal equipment, such as wireless AP, network camera, network telephone, industrial sensor and so on, to meet the demand for high density PoE power supply network environment. It is suitable for intelligent transportation, rail transportation, electric power industry, mining mining, metallurgy and green energy construction and so on. A reliable communication network
The B1-IPS33108PFM has L2+ full network management function, support IPV4/IPV6 management, static route full line rate forwarding, security protection mechanism, ACL/QoS policy and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
Unmanaged industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M SFP slot ports, Port 1-8 can support IEEE802.3af/at PoE standard. Support DC dual power supply input and DIN rail mounting.
FEATURE
Gigabit access, SFP fiber port uplink
• All series support “Gigabit Ethernet port and Gigabit SFP port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, ultra-wide voltage input
• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input
• Non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply
• 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
• PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
PoE network management and fast ring function
• IEEE802.1Q VLAN, flexible VLAN division and QinQ configuration.
• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
• IGMP V1/V2 and IGMP Snooping.
• ERPS/STP/RSTP/MSTP.
• Static and dynamic aggregation.
Security
• 802.1X authentication.
• Port isolation,Storm control.
• IP-MAC-VLAN-Port binding.
Stable and reliable
• Low power consumption, fan-less design, aluminum shell.
• CCC, CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, L/A, PoE.
One-stop remote control and management
• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
• HTTPS, SSLV3, and SSHV1/V2.
• RMON, system log, LLDP, and port traffic statistics.
• CPU monitoring, memory monitoring, Ping test, and cable diagnose.
Specification
Product Name 10-Port Full Gigabit Managed Industrial PoE Switch
Product Model B1-IPS33108PFM
Interface Characteristics
Fixed Port 8*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP slot ports (Data)
1 * RS232 console port(115200,N,8,1)
2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
Ethernet Port Port 1-8 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
SFP Slot Port Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance Multi mode: 850nm /0 ~ 500M, single mode: 1310nm /0 ~ 40KM, 1550nm /0 ~ 120KM.
Chip Parameter
Network Management Type L2+
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX
IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 192Gbps
Forwarding 14.88Mpps
MAC 8K
Buffer Memory 4M
Jumbo Frame 9.6K
LED Indicator Power: PWR (yellow), System : SYS (yellow) , Network: Link (yellow), Fiber port: L/A (green), PoE: PoE (green)
Reset Switch Yes, Press and hold the reset switch for 10s and release it to restore the factory settings
PoE & Power
PoE Port Port 1 to port 8
PoE Management PoE working status
Delay start of power supply
PoE output priority configuration
Scheduling of PoE operation and time
Total power limit of PoE power supply
PoE output power allocation, off& af &at
Power Supply Pin Default: 1/2 (+), 3/6 (-)
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 120W/48VDC
Power Consumption Standby<8W, Full load<120W
Working Voltage 48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Supply No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 165*148*54mm
Net /Gross Weight <0.8kg / <1.2kg
Installation Desktop, DIN rail
Certification & Warranty
Lightning protection / protection level
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
Warranty 3 years , lifelong maintenance.
