OVERVIEW
The B1-IPS33108PF series is a full gigabit industrial PoE switch fiber independently developed by BISMON. It has 8*10/100/1000Base-T RJ45 ports and 2*1000Base-x SFP ports. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 120W (at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
Unmanaged mode, plug, and play, no configuration, easy to use.

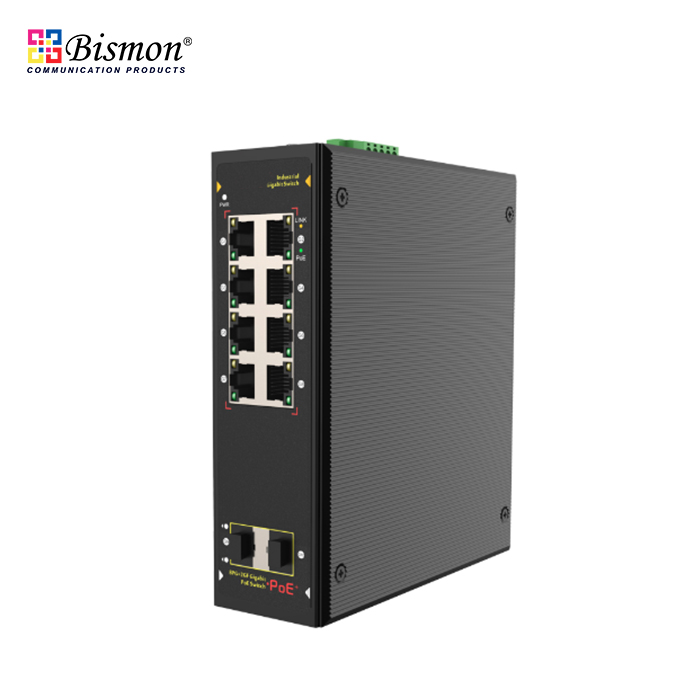

Unmanaged industrial PoE fiber switch with 8*10/100/100M RJ45 ports and 2*1000M uplink SFP slot ports, Port 1-8 can support PoE IEEE802.3af/at. It can support DC dual redundant power input and DIN rail mounting.
FEATURE
Full gigabit access, SFP port uplink
• All series supports " Gigabit RJ45 port and gigabit SFP port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
• Support non-blocking wire-speed forwarding.
• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, wide voltage input
• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
• Industrial dual power input
• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V
Intelligent PoE power supply
• 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
• Low power consumption, No fan, aluminum casing.
• CCC,CE, FCC, RoHS.
• The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, PoE.
TECHNICAL SPECIFICATION |
|
|
|
Model |
B1-IPS33108PF |
Interface Characteristics |
|
Fixed Port |
8*10/100/1000Base-T PoE ports (Data/Power) |
2*1000Base-X uplink SFP fiber slot ports (Data) |
2 sets of V+, V- redundant DC power interface (5P Phoenix terminal) |
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter) |
1000BASE-T: Cat5e or later UTP(≤100 meter) |
Ethernet Port |
Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
SFP Slot Port |
Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
Optical Cable/ Distance |
Multi mode: 850nm 0~500M; 1310nm 0~2kM; |
single mode: 1310nm 0~40KM,1550nm 0-120KM. |
Chip Parameter |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T |
IEEE802.3z 1000Base-X |
IEEE802.3x |
Forwarding Mode |
Store and Forward(Full Wire Speed) |
Switching Capacity |
20Gbps |
Forwarding |
14.88Mpps |
Rate@64byte |
MAC |
8K |
Buffer Memory |
4M |
Jumbo Frame |
9.2K |
LED Indicator |
Powe: PWR (green), Network: Link,link/Act (yellow), PoE: PoE (green) |
PoE & Power |
|
PoE Port |
Port 1-8 |
Power Supply Pin |
Default 1/2 (+), 3/6 (-) |
Max Power Per Port |
30W; IEEE802.3af/at |
Total PWR / Input Voltage |
120W/48VDC |
Power Consumption |
Standby:<8W;Full load:<120W |
Working Voltage |
48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
Power Supply |
No, optional 48V/120W or 48V/240W industrial power supply |
Physical Parameter |
|
Operation TEMP / Humidity |
-40~+75°C;5%~90% RH Non condensing |
Storage TEMP / Humidity |
-40~+85°C;5%~95% RH Non condensing |
Dimension (L*W*H) |
145*134.5*47.5mm |
Net /Gross Weight |
<1.0kg / <1.3kg |
Installation |

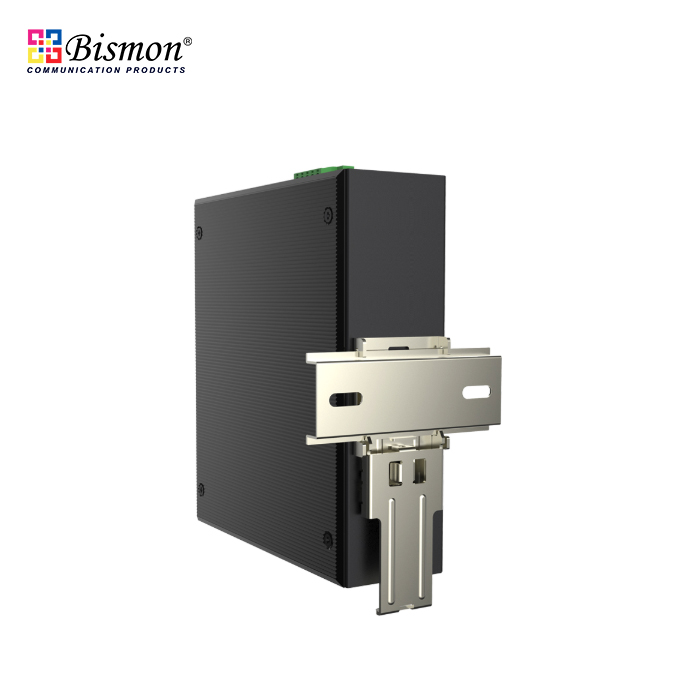

Desktop, DIN rail |
Certification & Warranty |
|
Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP40 |
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge |
IEC61000-4-3(RS):10V/m(80~1000MHz) |
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV |
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV |
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) |
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s |
IEC61000-4-9(pulsed magnet field):1000A/m |
IEC61000-4-10(damped oscillation):30A/m 1MHz |
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV |
IEC61000-4-16(common-mode transmission):30V; 300V,1s |
FCC Part 15/CISPR22(EN55022):Class A |
IEC61000-6-2(Common Industrial Standard) |
Mechanical Properties |
IEC60068-2-6 (anti vibration), IEC60068-2-27 (anti shock) |
IEC60068-2-32 (free fall) |
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
Warranty |
3 years , lifelong maintenance. |
