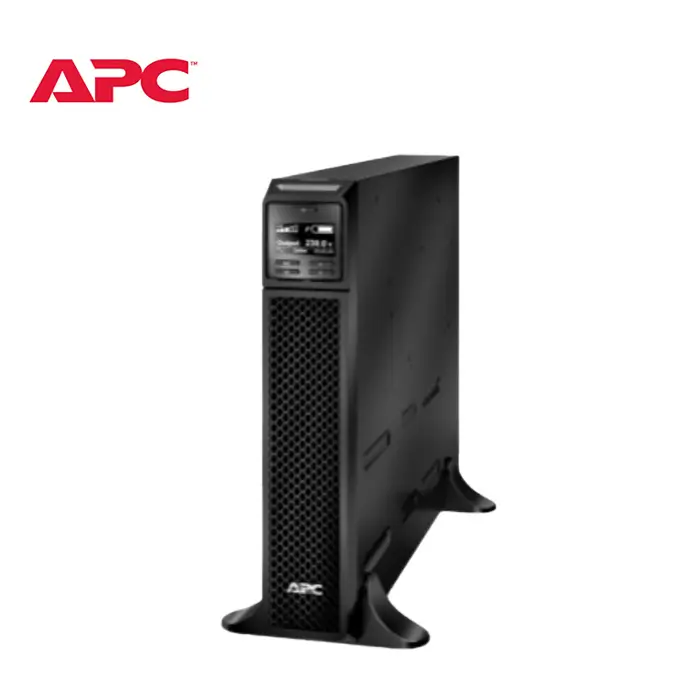

APC Smart-UPS On-Line, 2200VA/1980W, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
Description
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 2200VA/1980W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 3-year warranty. Its dimensions are 584mm (depth) x 432mm (height) x 85mm (width) and weighs 25.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specifications
|
Overview
|
|
Presentation
|
High density, double-conversion on-line power protection with scalable runtime.
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
Run time for load: 1980W
Min-max: 198-1980 W
|
3min 53s
|
|
Max. Capacity Used
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
1980 W
|
|
Rated power in VA
|
2200 VA
|
|
Input Connection Type
|
BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
|
|
output connection type
|
8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
|
|
Cable length
|
2.44 m
|
|
number of cables
|
1
|
|
Battery type
|
Lead-acid battery
|
|
provided equipment
|
CD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
|
|
General
|
|
product web sub-family
|
High density
|
|
Number of power module
|
1400
|
|
Number of power module free slots
|
0
|
|
Number of power module filled slots
|
0
|
|
Redundant
|
No
|
|
Physical
|
|
colour
|
Black
|
|
Height
|
43.2 cm
|
|
Width
|
8.5 cm
|
|
Depth
|
58.4 cm
|
|
Product weight
|
25 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
Lower
|
|
Mounting mode
|
Rack-mounted with kit
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Mounting position
|
Vertical
|
|
Input
|
|
network frequency
|
40...70 Hz auto-sensing
|
|
input voltage limits
|
100...275 V adjustable (half load)
|
|
Output
|
|
Maximum configurable power in W
|
1980 W
|
|
Harmonic distortion
|
Less than 2 %
|
|
output frequency
|
50/60 Hz +/- 3 Hz sync to mains
|
|
Crest factor
|
3 : 1
|
|
UPS type
|
Double conversion online
|
|
Wave type
|
Sine wave
|
|
Bypass type
|
Internal bypass (automatic and manual)
|
|
Maximum configurable power in VA
|
2200 VA
|
|
Conformance
|
|
Product certifications
|
CE
EAC
RCM
VDE
|
|
Marking
|
CE Mark
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
relative humidity
|
0…95 % non-condensing
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
storage Relative Humidity
|
0…95 % Non-condensing
|
|
Storage altitude
|
0.00…15240.00 m
|
|
Acoustic level
|
55 dBA
|
|
Heat dissipation
|
703 Btu/h
|
|
IP degree of protection
|
IP20
|
|
Batteries & Runtime
|
|
Run Time
|
View Runtime Graph
action_new_window
|
|
Efficiency
|
View Efficiency Graph
action_new_window
|
|
Number of battery filled slots
|
1
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
3 h
|
|
Number of battery replacement quantity
|
1
|
|
Additional information
|
Configurable for 220 : 230 or 240 nominal output voltage
|
|
Battery voltage
|
72 V
|
|
battery charger power
|
122 W rated
|
|
Battery power in VAH
|
367 VAh runtime
|
|
Battery life
|
3…5 year(s)
|
|
Replacement battery
|
APCRBC141
action_new_window
|
|
battery option
|
SRT72BP 1 1101 VAh
SRT72BP 2 1835 VAh
SRT72BP 3 2569 VAh
SRT72BP 4 3303 VAh
SRT72BP 5 4037 VAh
SRT72BP 6 4771 VAh
SRT72BP 8 6239 VAh
SRT72BP 10 7707 VAh
|
|
Extended runtime
|
1
|
|
Communications & Management
|
|
Free slots
|
1
|
|
Emergency power off
|
Yes
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
340 J
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
