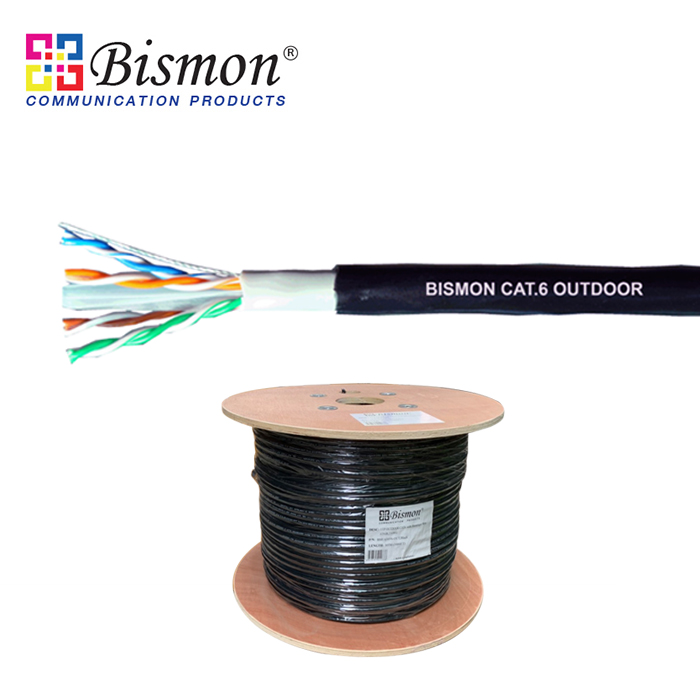

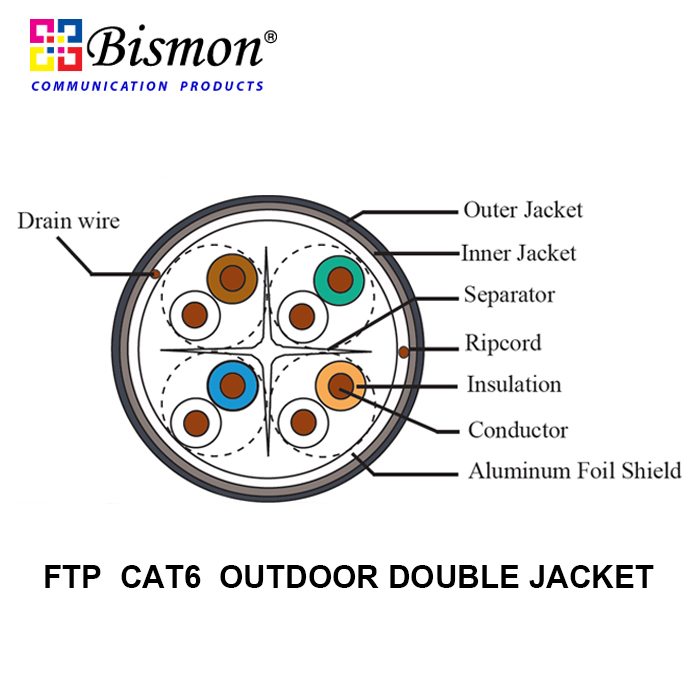

BISMON Category6 4 Pair FTP OUTDOOR Cable Double Jacket 23AWG (0.57mm) solid bare copper with with Aluminum foil shield, Cable provides significant headroom above all TIA/EIA and ISO/IEC category 6/class E transmission performance specifications.combine our high performance category 6 connectivity with Category 6 cable and use for backbone ethernet lan gigabit network. It is designed for use in horizontal cabling situations and supplied in 305m (1,000ft) easy pull out reels. These category 6 systems exceed ANSI/TIA/EIA-568-B.2-1 Category 6 performance requirements, providing usable banwidth well beyond 600 Mhz.
FTP Cat.6 Cable Outdoor Double Jacket (Cat.6 ชนิดใช้ภายนอกอาคาร) เป็นสายสัญญาณที่มี ตัวป้องกันสัญญาณรบกวนอย่างดี เหมาะกับการใช้งานทั้งระบบ LAN Gigabit 1000Base-TX หรือ ในระบบกล้อง IP เพราะต้องป้องกันสัญญาณรบกวนค่อนข้างมาก
Applications
• Broadband Video and voice, ISDN
• Voice over Internet Protocol (VoIP)
• Power over Ethernet (PoE)- IEEE 802.3af, IEEE 802.3at
• Link for IP Camera and backbone network
• Analog & Digital Voice, Analog & Digital Video
• Support 10Gbps Gigabit Ethernet (55Meters)
STANDARD
• Standards ISO/IEC 11801 Class E, ANSI/TIA/EIA 568-B.2-1
• RoHs complies
• PVC: IEC 60332-1, UL CMR
• LSZH: IEC 61034, IEC 60754, IEC 60332-1
| SPECIFICATION OUTDOOR CATEGORY 6 (600 Mhz) |
| |
|
| PHYSICAL |
|
| UTP Cable |
4 PAIR UTP CAT6 (600MHZ) |
| Gauge |
23 AWG |
| Conductor Dia. Nom. |
0.58 mm |
| Insulation Material |
HDPE |
| Filler slot |
FR-PE Isolator Separator |
| Insulation Dia |
1.14 mm |
| Conductor |
Solid Bare Copper |
| Drain Wire |
0.5mm TC |
| Shielded |
Al-Mylar Tape |
| Inner Jacket |
FR-PVC, Nor OD:7.2mm |
| Outer Jacket |
UV-PE (Polyethylene) |
| Sheath Thickness |
0.50mm |
| Outer Diameter |
8.5 mm |
| Ripcord |
1 Ripcord |
| Tensil strength Max. load |
110N |
| Bending Min. install |
4x dia. |
| Operating Temperature Range |
-20 C ~ 60 C |
| Storage Temperature Range |
-20 C ~ 80 C |
| ELECTRICAL |
|
| Characteristic impedance |
100 ohm+-15 ohm |
| Delay Skew |
40ns/100m |
| Propagation Delay |
536ns/100m. @ 250MHz |
| Electrical Data at 20 C |
|
| Frequency |
600.0 MHz |
| Attenuation (dB/100M) |
54.7 |
| NEXT (dB) |
36.5 |
| ACR (dB) |
N/A |
| Return Loss (dB) |
14.7 |
| PS NEXT (dB) |
34.5 |
| PS ACR (dB) |
N/A |
| ELFLEXT (dB) |
12.5 |
| PSELFLEXT (dB) |
9.5 |
