Contractor Series Light Sources - Multimode 850/1300nm

Features:

 •  Palm-sized rugged, dependable tools

 •  5-Year Product Warranty

 •  3-Year Calibration

 •  Large sunlight readable display

Applications:

 •  Link loss measurements

 •  Certify SM & MM links to industry standards

 •  Continuity check and fiber identification prior to fusion splicing

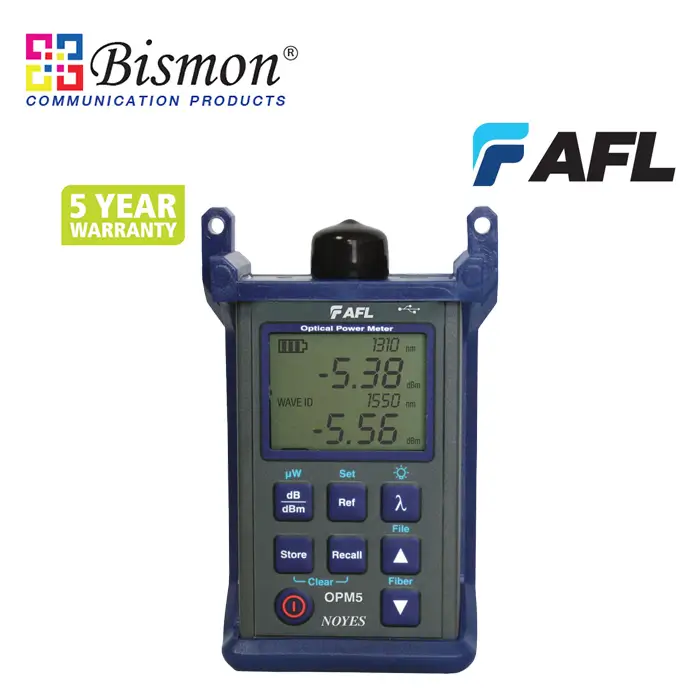

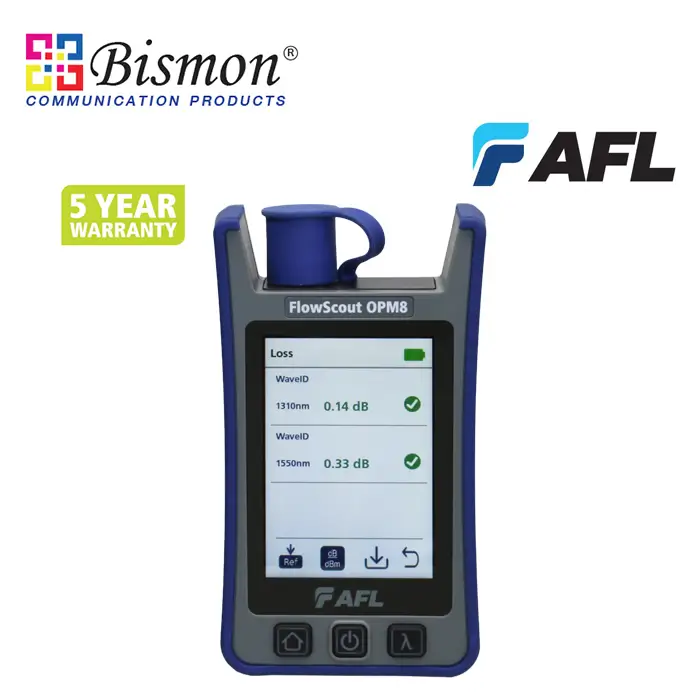

Contractor Series Light Sources and Power Meters

Quality tools designed for loss measurements over single-mode and multimode networks.  Small palm-sized units are ideal for field use.  Sized to carry and built tough to endure the rigours

of outside plan work enviroments.

CSS1 Dual Wavelength Single-Port Light Sources

 •  CSS1-MM: 850/1300 nm multimode Light source

 • Emitter type: LED

 • Output Power(dBm): -20dBm

 • Stability +-0.1dB/1hr

 • SC-adapter connector fixed

 • Power: AA

CSS1-MM LED Source

• 850 nm and 1300 nm LED output from single test port
• 50 μm and 62.5 μm mandrels included
• Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
• Use power meters when the technician has fiber end access

CSS1 Sources Transmit:

• CW continuous-wave output (DC)
• Test Tones (2000, 1000, 330, 270 Hz) for fiber identification
• Use power meters when the technician has fiber end access
• Use OFI (optical fiber identifier) for mid-span testing
