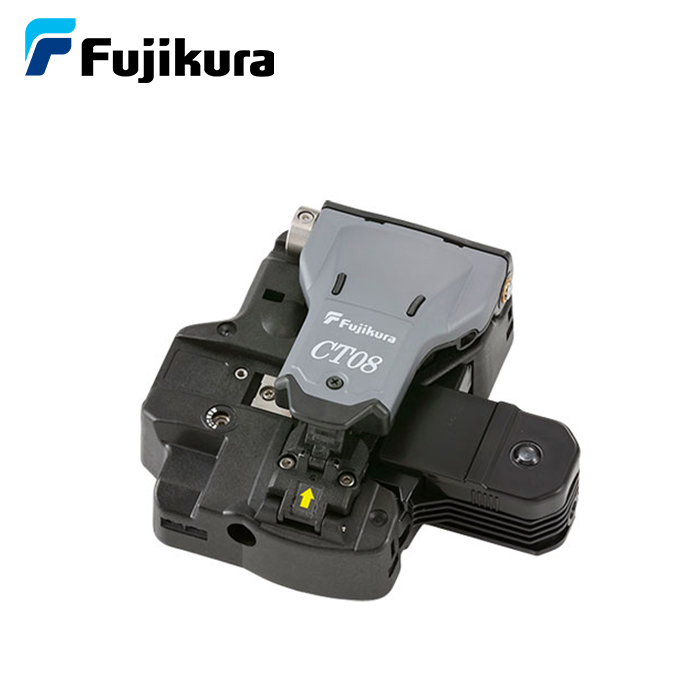

The Fujikura CT08 Rugged, Impact-Resistant Fiber Optic Cleaver is a high-precision, yet economical solution for one-step cleaving of 125µm cladded optical fibers with 250 to 900µm coating. It ensures high-performance splicing and mechanical terminations. This reliable, easy-to-use fiber cleaver offers the blade which yields 48,000 single fiber cleaves. For blade rotation use a thumbwheel on the bottom of the unit and the blade position indicator. The cleave length is 5-20mm with an adapter plate and 10mm with a fiber holder. Fiber shards are stored in the scrap collector.
The portable CT08 fiber cleaver standard package includes: the main unit, AD-50 adapter plate, carrying case, hex wrench, sharps collector and instruction manual.
Features
-Dedicated for single fiber cleaving.
-Absolute robustness
-Replacement of fiber clamps and cleaving blade by user
-No tool necessary for blade rotation
-Blade life up to 48,000 cleaves
-Easy fiber placement with wide lever opening
-Simple and single-step operation
Standard package include:
- CT-08 Single Fiber Cleaver(Main body)
- CB-07 Pre-Installed Cleaving Blade
- AD-50-Fiber Plate
- SPA-CT08-10 Spacer
- CC-37 Carrying Case
- HEK-01 Hexagonal Wrench
- M-CT08-EJ Instruction Manual
Specifications
Description
|
CT-08
|
Applicable Fiber
|
Silica optical fiber
|
Number of fibers
|
Single
|
Coating Diameter
|
160 to 900μm (2/3mm cord & drop cable)
|
Cladding Diameter
|
125µm
|
Cleave Length
|
5-20mm with AD-50
10mm with FH-xx-
|
Cleave Angle
|
Typical 0.5 degrees
|
Blade life
|
Typical 48,000 fibers
|
Dimensions
|
110(W) x 95(D) x 45(H)mm
|
Weight
|
185g
|
Operation condition
|
Temperature: -10 to 50? Humidity: 0 to 95% RH(Non-condensing)
|
Storage condition
|
Temperature: - 40 to 80? Humidity:0 to 95% RH(Non-condensing)
|
Resistance features
|
Shock: 76cm (30inch) all directions dropShock: 76cm (30inch) all directions drop
|
Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate)
|
Rain resistance: H=10mm/hr for 10min
|
