OVERVIEW

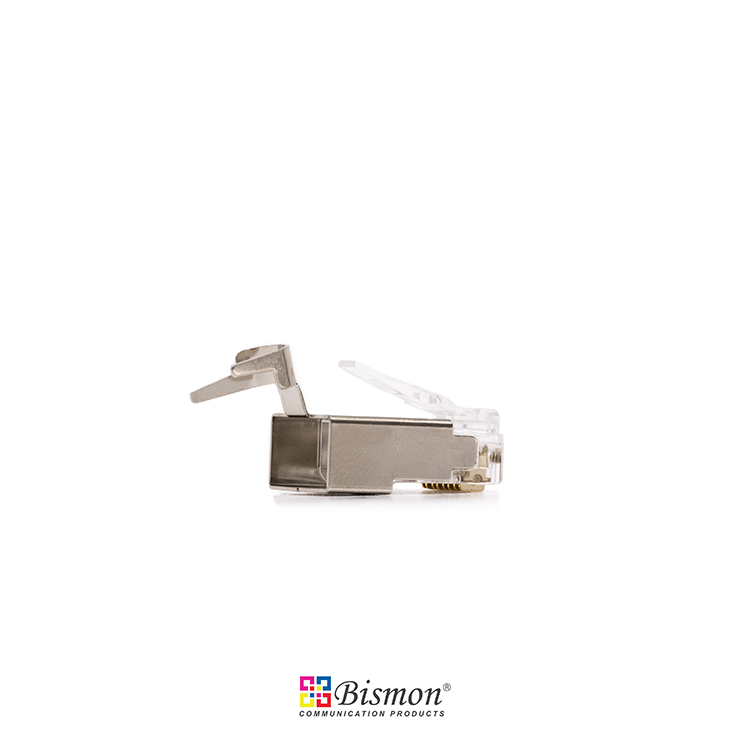

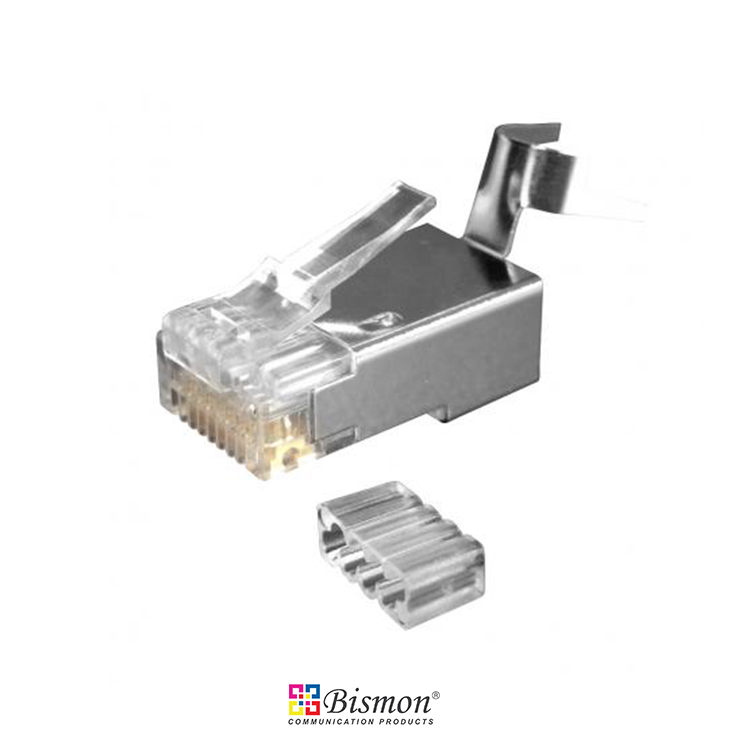

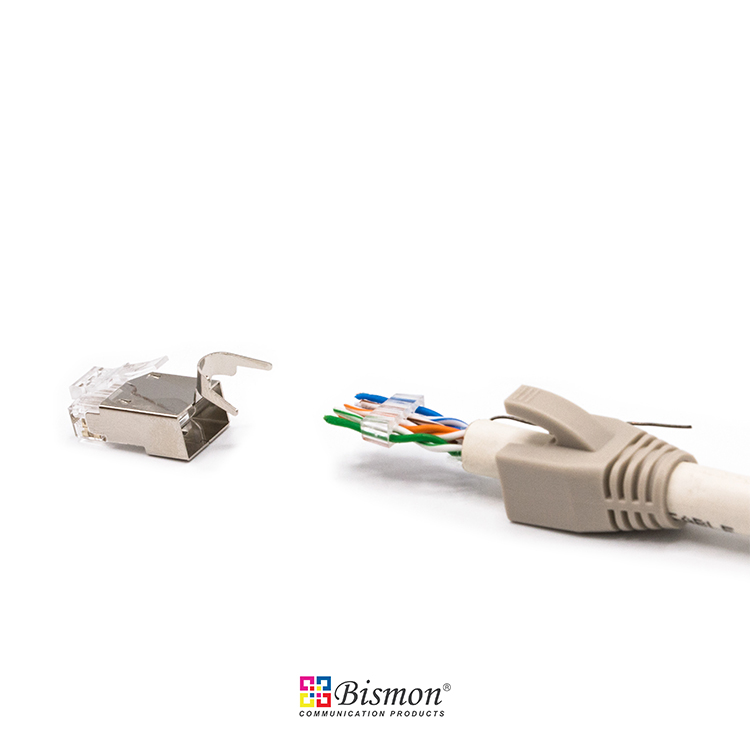

Cat.6A Shielded plug RJ45 Crimp (H:1.50mm) with insert bar BISMON's new modular plug is designed to terminate with Cat6a or Cat7 larger diameter (23AWG) solid conductor cables. BISMON's special design load bar with 1.5mm size can fit the 1.35 ~ 1.45mm wires, which provides a superior solution for such larger network cables. Follow our suggested assembly steps and use the correct tool; you can complete the assembly easily by yourselves! We can provide crimping hand tool with two different crimping OD 7.5mm & 6.0mm; therefore, you can choose the right one to crimp your cables!

Easy Plug Benefits

• RoHS compliant

• Follow FCC Part 68 standard; meet reliability test based on IEC 60603-7.

• UL Certified. EXW Z blade (3 prong blade) with patent for 5 countries: China, USA, Germany, Japan and Taiwan

• Electrical: 250Volts AC Max., AT 2 AMPs

• Dielectric with standing voltage:1000 Volts AC.

• Insulation resistance : 100 M-Ohm

• Termination: Resistance 20m-Ohm, max: after Environmental Testing

• UL Housing: Polycarbonate, UL94V-0 or UL94V-2

• Conductor: Stranded & Solid wire: It can be used for the wire OD from Ø 1.35~Ø1.45 mm
