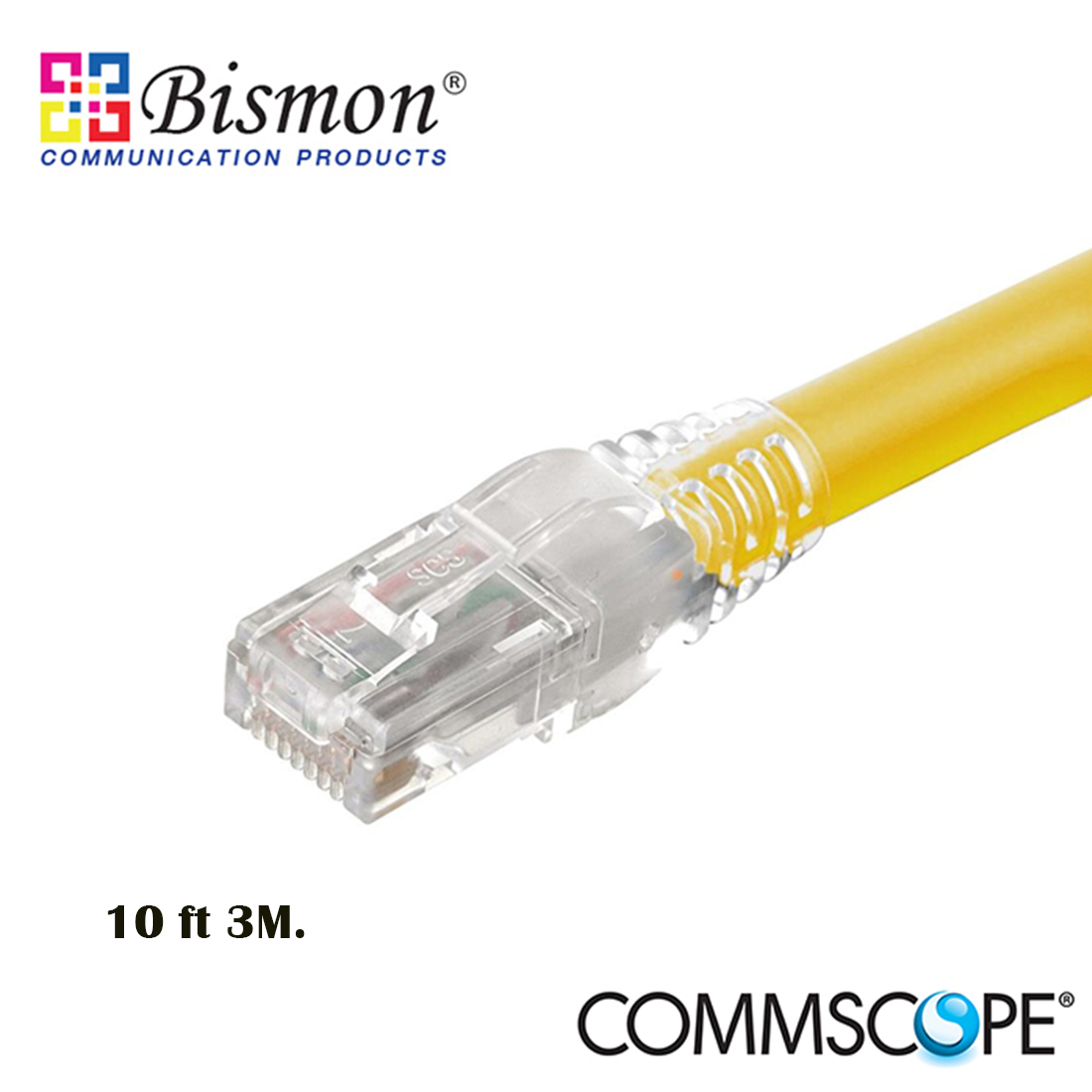

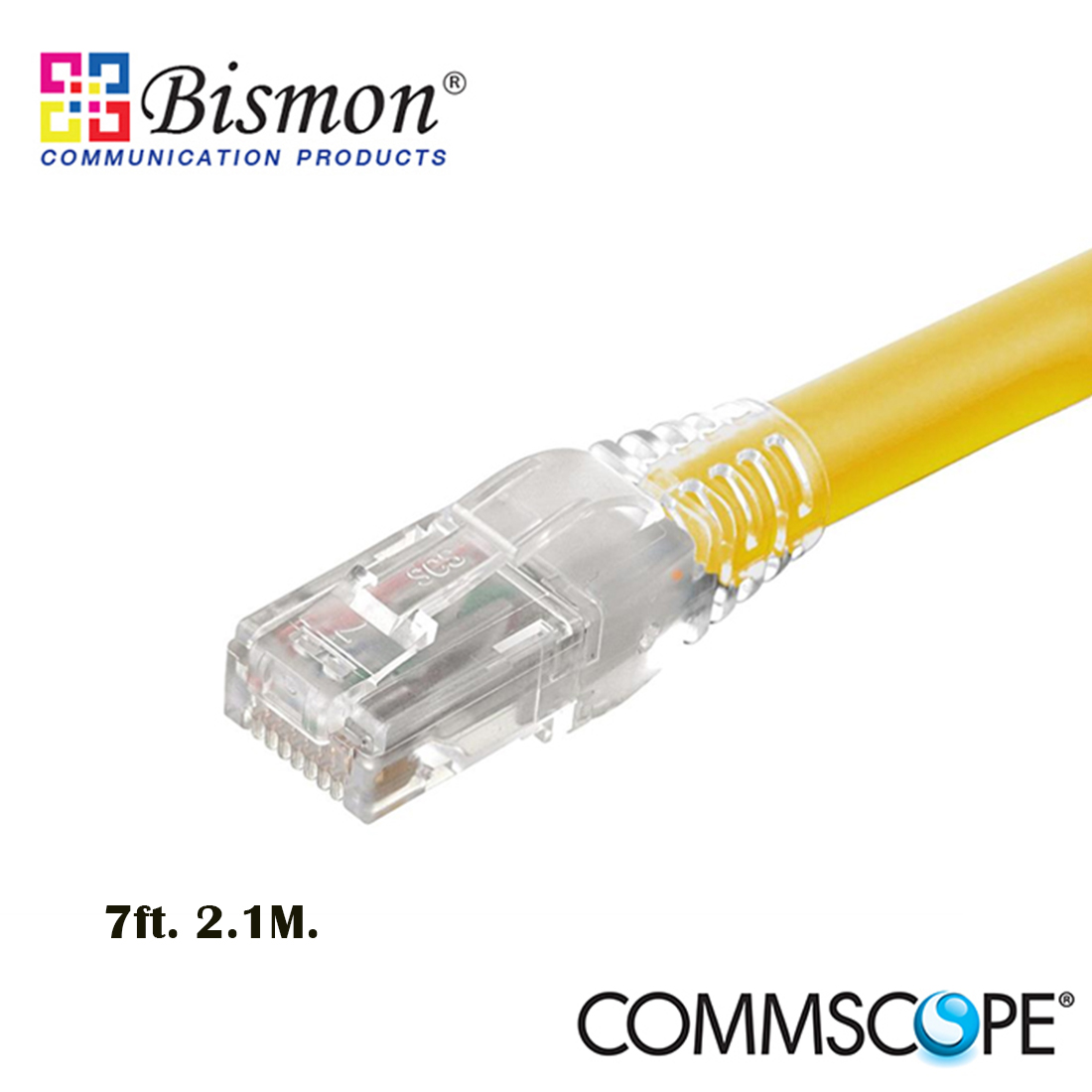

(Commscope)Patch Cord Cat.6 UTP Unshielded Yellow, (4ft 1.2M.,7ft. 2.1M.,10 ft 3M.)
Part number : NPC06UVDB-YL0000
Brand : COMMSCOPE
Price : 109.41 Baht
| OVERVIEW |
| RJ45 Patch Cord, category 6, trans SL boot, yellow, 4 ft |
|
AMP NETCONNECT Category 6 patch cable assemblies exceed the TIA/EIA-568-B.2-1, ISO/IEC 11801:2002 Class E requirement for Category 6/Class E performance. The AMP NETCONNECT Cayegory 6 System complies with all of the performance requirements for current and proposed applications such as Gigabit Ethernet, 100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and analog and digital (VoIP) voice.
|
| Specifications | |
| General | |
| ANSI/TIA Category | 6 |
| Cable Type | U/UTP (unshielded) |
| Conductor Type | Stranded |
| Interface, Connector A | RJ45 plug |
| Interface, Connector B | RJ45 plug |
| Jacket Color | Yellow |
| Pairs, quantity | 4 |
| Wiring | T568B |
| Dimensions | |
| Cord Length | 1.22 m | 4.003 ft |
| Diameter Over Jacket | 5.6 mm | 0.22 in |
| Compatible Conductor Gauge, stranded | 24 AWG |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Non-plenum |
| Flammability Rating | CM |
