OVERVIEW

AMP NETCONNECT Enhanced Category 5 (Cat5e) Outdoor cables UV Stabilized PE Jacket (Double PE, Jacket and Insulation) with messenger wire, suitable for horizontal, vertical, aerial self-support applications, exceed TIA/EIA-568- B.2 Enhanced Category 5 (Category 5e) and ISO/IEC 11801 Class D, IEC61156-5, EN50288 and EN50173 performance requirements, providing extra headroom for a more robust cabling system. They comply with all of the performance requirements for current and proposed applications such as Gigabit Ethernet 1000Base-T IEEE802.3ab,100BASE-Tx, token ring, 155 Mbps ATM, 100 Mbps TP-PMD, ISDN, analog (Broadband, Baseband) and digital video and analog and digital voice (VoIP) and VoIP Camera. The cable is available in black color, and packaged as reel box.

Horizontal cabling shall be 24 AWG, 4-pair UTP. Cable jacketing shall be a [Black] Polyethylene (UV-PE) jacket for UV/harsh outdoor environment protection and shall be lead-free. Cable shall meet the performance requirements

listed in the following table [include Performance Characteristics table from back page]. Cable shall be supplied [on wooden reels, in pull box or in reel-in-box]. Cable shall be UL 444. Flammability shall comply to NEC article 800.

Horizontal (Solid) cable shall be AMP NETCONNECT part number 1427320-1.

Specifications

General

Brand                                                                    Commscope

Part number                                                        1427320-1

Category                                                              CAT5e + Sling Outdoor

Cable Type                                                           U/UTP (unshielded)

Conductor Type, singles                                    Solid

Conductors, quantity                                         8

Jacket Color                                                        Black

Pairs, quantity                                                    4

Conductor Gauge, singles                               24 AWG

Transmission Standards                                   ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class D

Dimensions

Cable Length                                                      305m

Diameter Over Jacket, nominal                      4.699 mm | 0.185 in

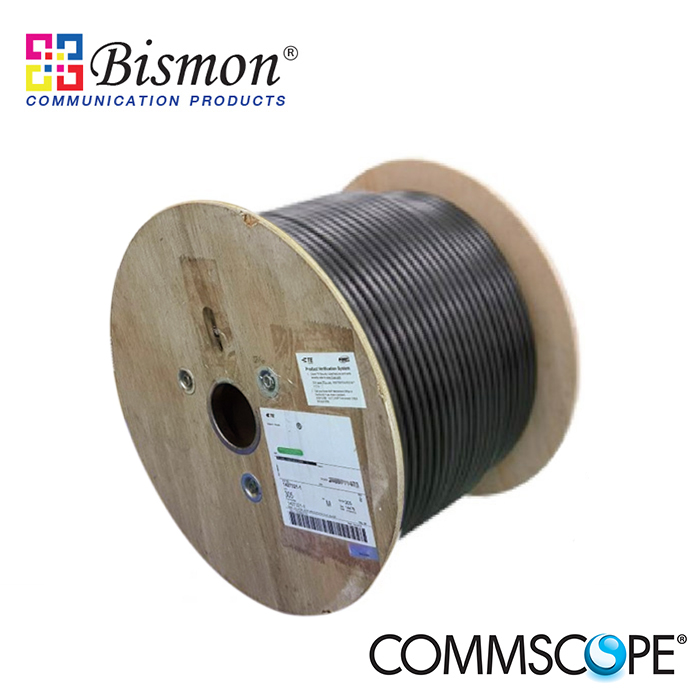

Packaging Type                                                  Reel box

Cable weight                                                      13.88 KG
