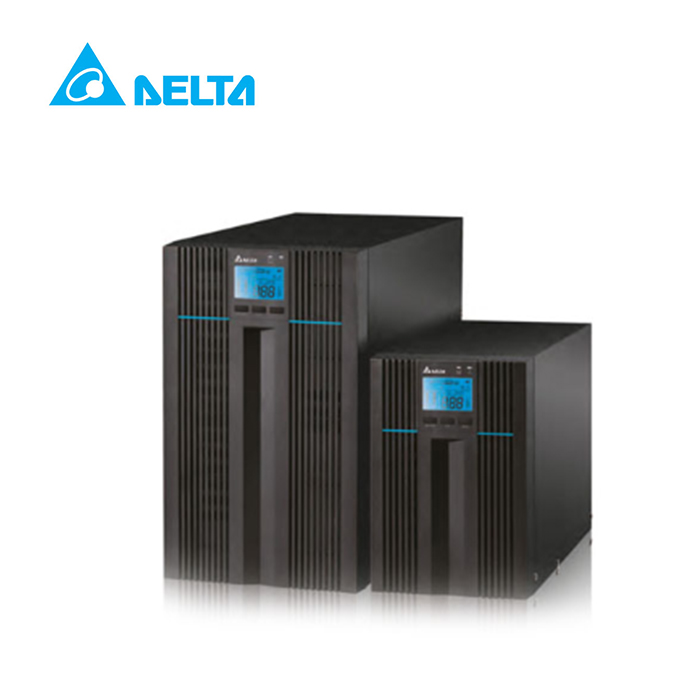

DELTA N-SERIES ONLINE 2000VA/1800W TOWER 3Y WARRANTY ONSITE (UPS202N2000B0B6S)
FEATURES
Availability
- True online double-conversion topology and zero transfer time to battery ensure high reliability.
- Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified control circuit for enhanced stability.
- Wide input voltage range allows the UPS to work in harsh electrical environments.
- Generator compatibility ensures continuous and reliable power.
Green with Low TCO
- High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment.
- Output power factor up to 0.9 presents a stronger load capacity.
- AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings.
- Compact design saves more space for critical equipment.
Intelligent Management
- Excellent local communications through LCD display.
- Intelligent battery management maximizes battery performance and sustains battery life.
- Mini slot and USB port enhance monitoring and manageability.
คุณสมบัติ UPS 2000VA DELTA N-Series N-2000VA
Brand
|
DELTA
|
Model
|
N-2000VA-3Y
|
Type
|
True online
|
Rated Capacity
|
2000VA / 1800W
|
Nominal Input Voltage
|
220/230/240VAC
|
Nominal Output Voltage
|
220/230/240VAC
|
Input Frequency
|
50/60Hz ±10Hz
|
Backup Time
|
4.5 min.(full load)
13 min.(half load)
|
Transfer Time
|
zero transfer time
|
Display
|
LCD
|
Input Connections
|
N/A
|
Output Connections
|
6 x IEC C13
|
Interface Port
|
1 x USB Type-B
|
Indicator & Audible Alam/ Protection
|
N/A
|
Battery Type
|
N/A
|
Waveform Type
|
Pure Sinewave
|
Typical recharge time
|
3hrs to 90%
|
Battery Replacement
|
48 Vdc
|
Features
|
N/A
|
Cord Length
|
N/A
|
Environment
|
Operating Temperature : 0-40°C
Relative Humidity : 5%-95% (non-condensing)
|
Package Contents
|
N/A
|
Dimension
|
(W x D x H) : 19.00 x 39.00 x 32.50 cm
|
Net Weight
|
18.60 KG
|
