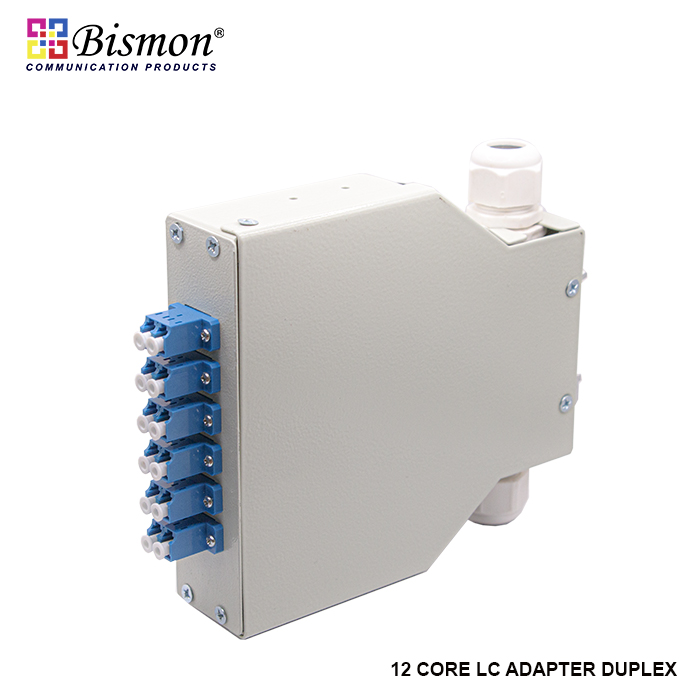

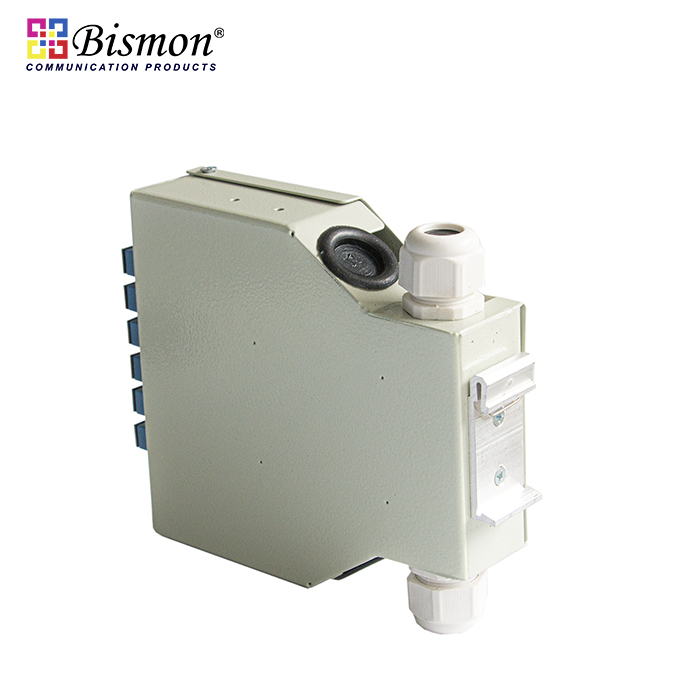

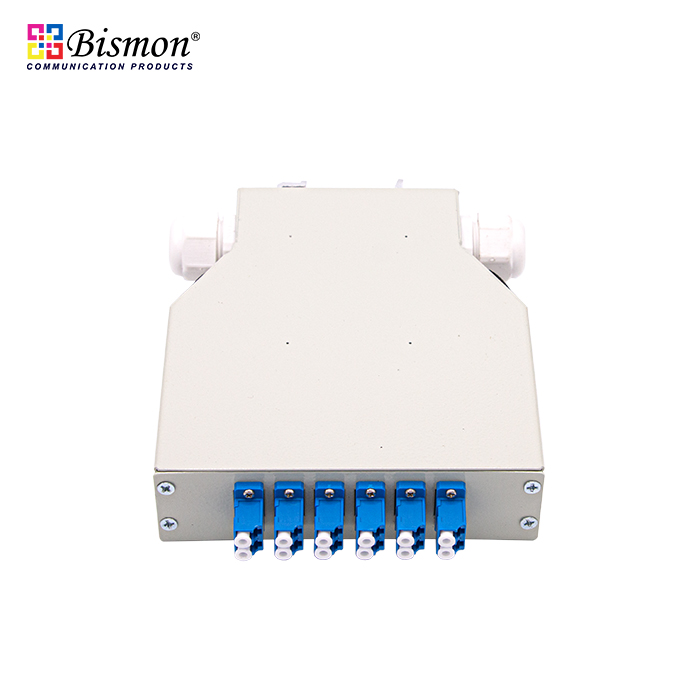

DIN Rail 12 Core LC Duplex adapter Fiber optic terminal box is available for the distribution with LC adapter single-mode 6 core and terminal connection for various kinds of optical fiber systems,
especially suitable for mini-network terminal distribution, in which the optical cables, patch cores, or pigtails are connected. All of the Din Rail boxes can be fully populated.
- SC adapter simplex= 6 Core
- LC adapter duplex= 12 Core
Support Single-mode and Multi-mode adapter
Application:
- Suitable for Pigtail, ribbon, and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.
Feature:
- Cold rolled steel
- Suitable for different adapters: SC and LC …
- 4 pcs cable entry/exit ports; 6 pcs pigtail entry/exit ports

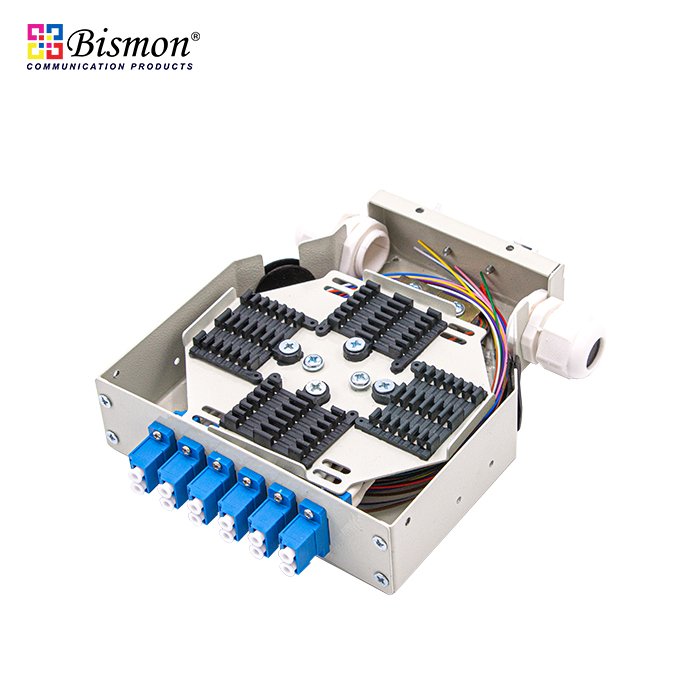

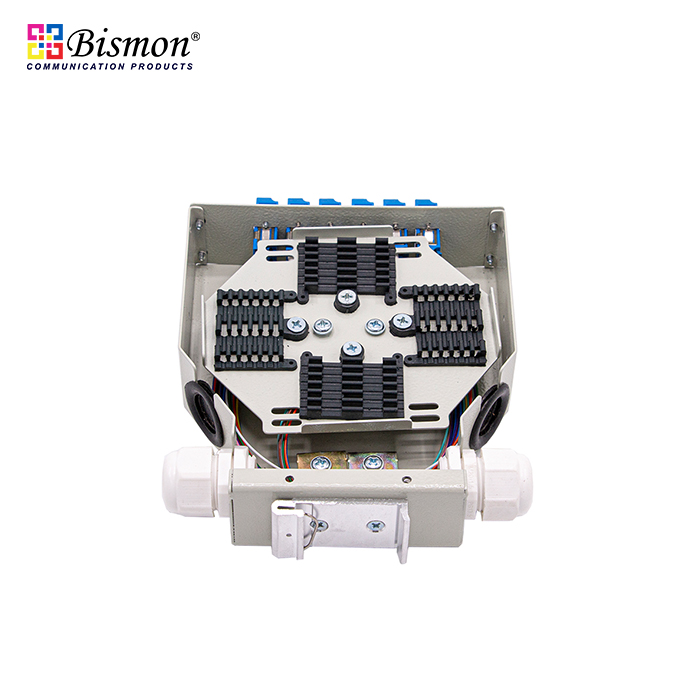

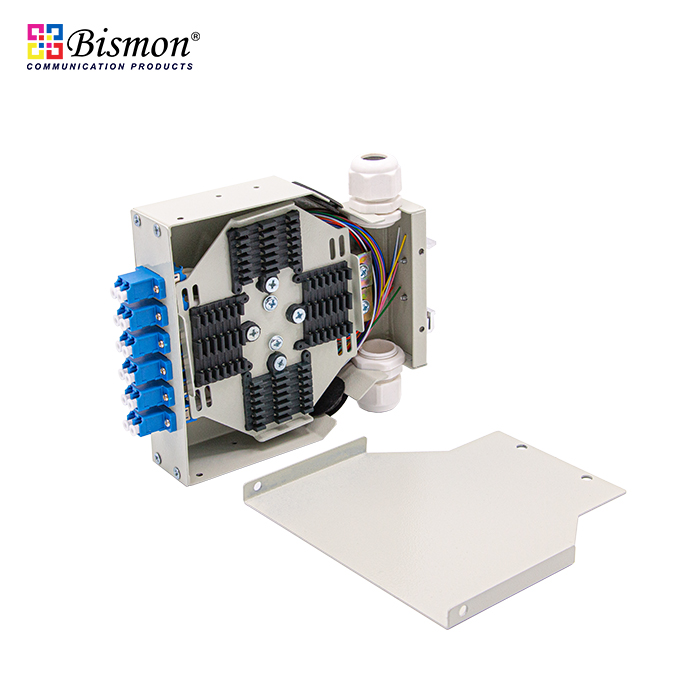

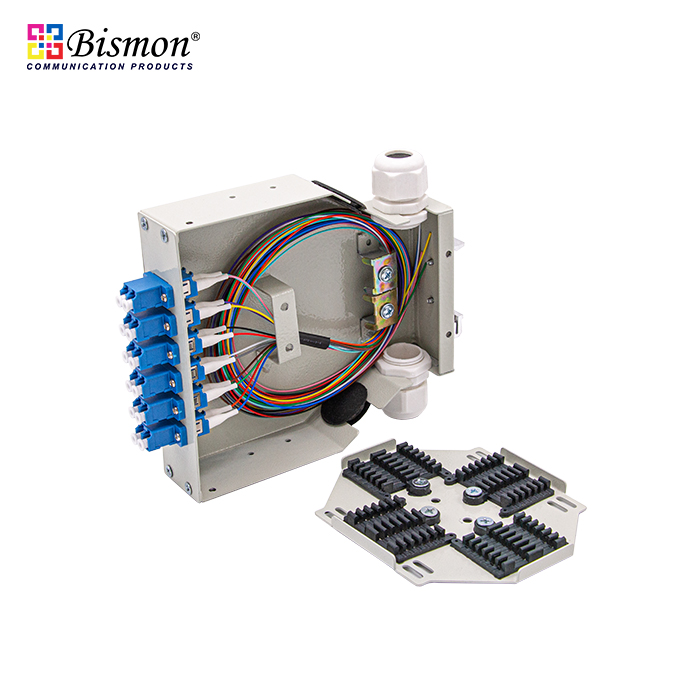

- Splicing module of 6 fibers inside
- Max. 6 pcs adapters can be loaded LC adapter duplex for 12 Core(6 pcs)
- Dimension: 130x140x39mm
- Color Grey color (RAL7035)
Feature:
- Cold rolled steel
- Suitable for different adapters: SC and LC …
- 4 pcs cable entry/exit ports; 6 pcs pigtail entry/exit ports
- Splicing module of 6 fibers inside
- Max. 6 pcs adapters can be loaded LC adapter duplex for 12 Core(6 pcs)
- Dimension: 130x140x39mm
- Color Grey color (RAL7035)
