System

Processor

Embedded processor

Operating System

LINUX

Performance

Video Format

H.265+/ H.265/ H.264/ MPEG4/ MPEG2/ MJPEG

Audio Format

PCM/G711/AAC

Decoding Capacity Separately

Port 1,2,3

Port 4,5,6

1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1

1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1

Total Video Decoding

3CH@32MP(25fps)/9CH@12MP(15fps)/12CH@8MP/48CH@1080P/108CH@720P/192CH@D1

Decoding Resolution

32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF

Video Output

9ch HDMI

Display Resolution

3840×2160(30fps)/2560×1600/1920×1080/1280×1024/1280×720/1024×768, only 6 ports support 3840×2160, the remaining 3 ports support 2560×1600

Video Input

2 HDMI, 2 DVI-I

Collection Resolution

3840×2160(HDMI 1)/1920×1080/1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600, etc

Audio Output

9ch HDMI (embedded)

Communication Interface

2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485

Bi-directional Talk

1 Pair 3.5mm jack (reserved) (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)

Alarm Input

4ch

Alarm Output

4ch relay out (30VDC 1A, 125VAC, 0.5A)

Others

Power Supply

AC100-240V, 50Hz-60Hz

Power Consumption

≤70W

Working Temperature

-10 °C to +55 °C (14 °F to 131 °F)

Working Humidity

10~90%RH / 86~106kpa

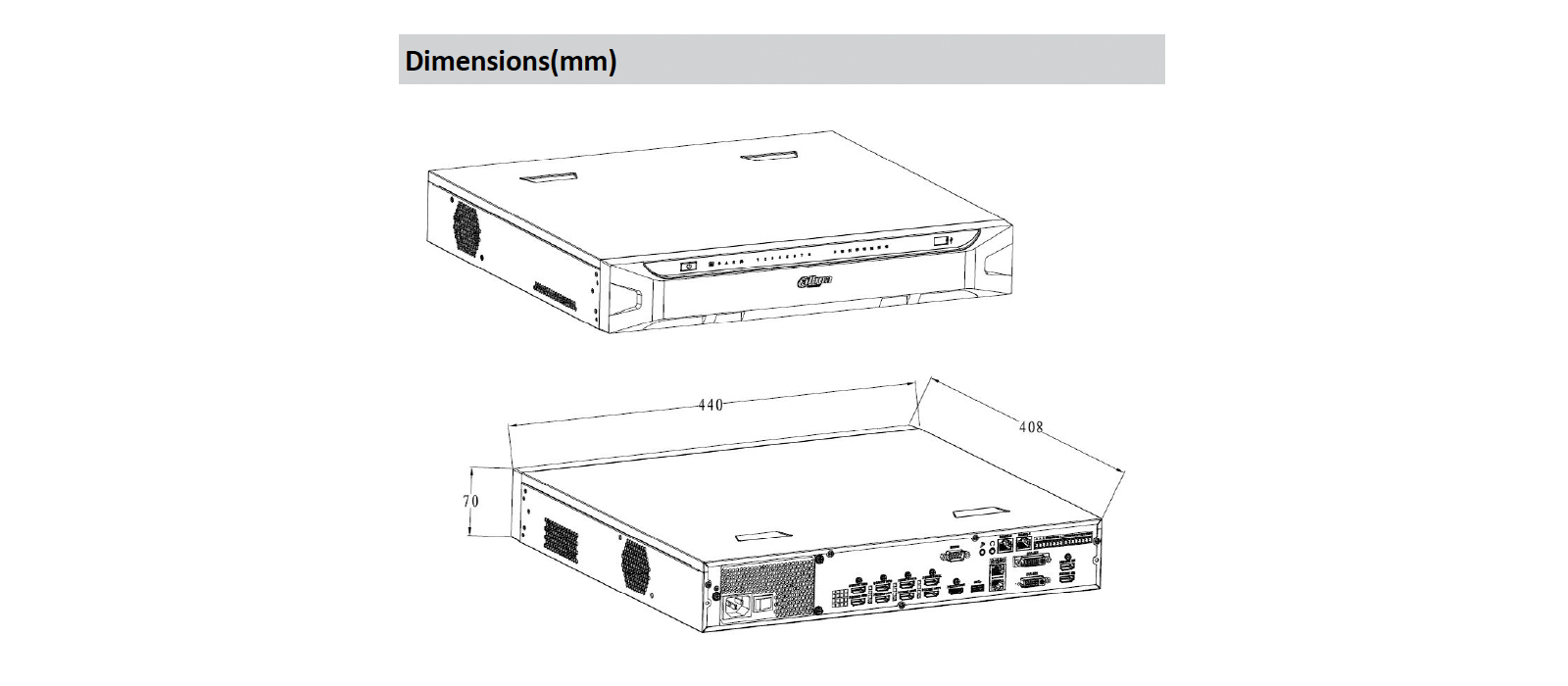

Unit Dimension

1.5U, 440×408×70mm(17.32 × 16.06 × 2.76 inch), (W*D*H)

Weight

4.83kg(10.65 lb)
