OVERVIEW

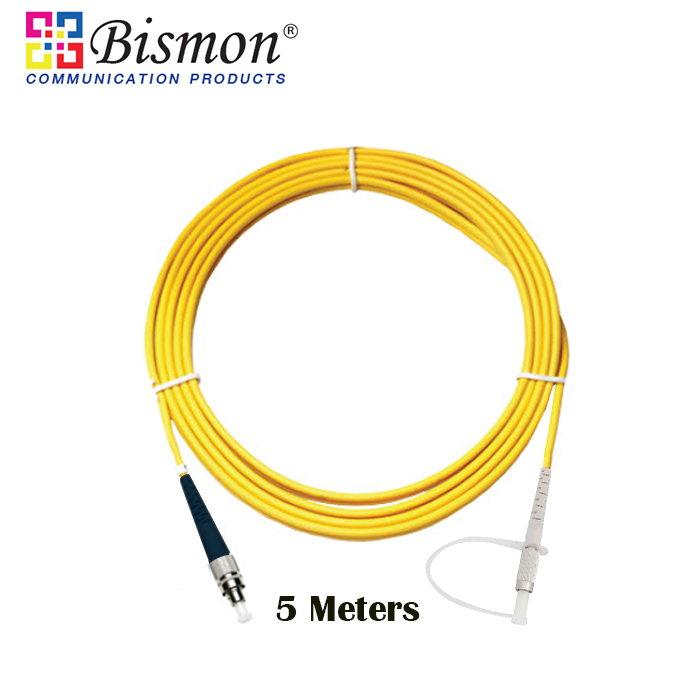

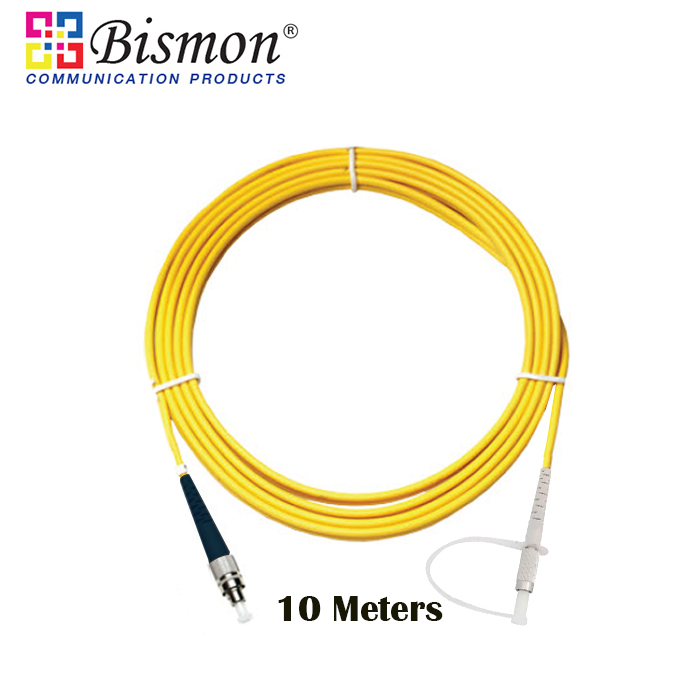

FC-DIN Patch Cord Simplex Single-Mode 9/125um (2,3,5,10 Meters)
Features
• PC, UPC, APC Polishing
• High return loss, Low insertion loss
• High reliability, High-temperature stability
• Compliant with Telecordia GR-326-Core, TIA/EIA and IEC
• Insert draw connection (simple, easy)
• Ferrule made from Zirconia/Ceramic
• Optical fiber cable Jacket Color: Yellow
• Single-mode attenuation (dB)/km: 0.34@1310nm/0.20@1550nm
• Comply to IEC standard
Applications
• CATV, Metro, Test equipment
• Telecommunication networks
• Local area networks (LANs)
• Wide area networks (WANs)
• Premise installations
• Data processing networks
![](http://www.bismon.com/pic_product/pic_gall/9SFCDIPD020 FC-DIN Patch Cord Simplex SM.jpg)
Specification |
|
|
|
Item |
Single-Mode 9/125 (G.652.D, G.657A1, G.657A2) |
Inserton loss(dB) |
≤0.2 |
Temperature(C) |
-40~+80 |
Repeatability(dB) |
≤0.1 |
Durability |
≥ 1,000 Matings |
Return loss(dB) |
APC≥65 |
Cable diameter(mm) |
Ø3.0, Ø2.0, Ø0.9 |
Tensile Strength(N) |
≥90N(OD:3.0), ≥ 70N (OD:2.0mm) |
Bend radius min. |
20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm |
Cable design |
PVC Jacket or LSZH |
Color |
Yellow color |
