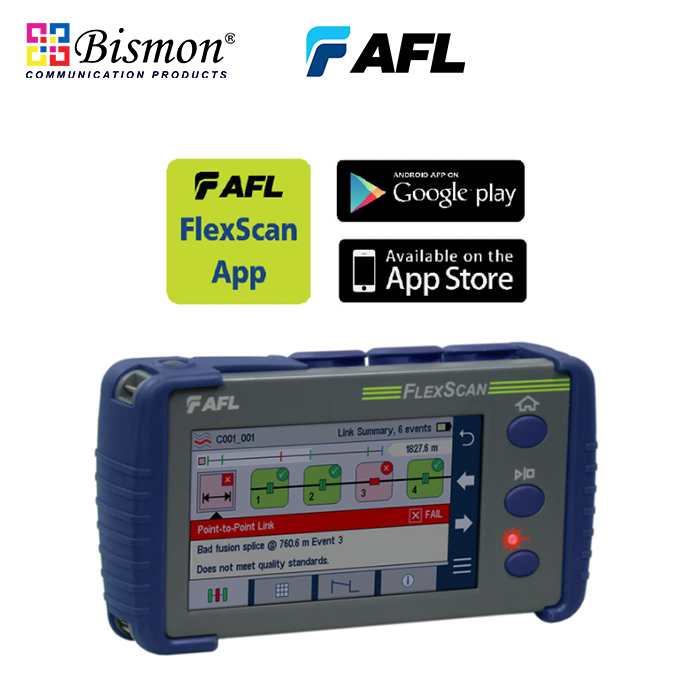

FlexScan® FS200 Single-mode OTDR

Flexscan FS200-304 [Basic Kit], 1310/1550/1650nm/OLS/OPM/BT/WiFi/Dark/Live test -Includes: FS200, soft case, TRM. 3.0 Basic, USB cable

Product Description

AFL’s FlexScan FS200 OTDR is an all-in-one solution for detecting, identifying, locating, and resolving single-mode optical network issues. It is designed for both novice and expert technicians working in a range of environments, from FTTH PON to point-to-point networks. It applies industry-standard or user-set pass/fail criteria and displays results using LinkMap color-coded icons that immediately show the health of the network. The FlexScan FS200 automates test setup, shortens test time, and simplifies results interpretation improving efficiency and reducing costs.


All-in-one test capability: The FlexScan FS200 includes an integrated VFL, power meter, and light source. It can be easily paired to AFL’s

award-winning FOCIS family of inspection scopes, ensuring technicians have everything they need to locate and quickly resolve optical

network issues.

Performance-packed: With SmartAuto multi-pulse acquisition, up to 37 dB dynamic range, and best-in-class 25 m PON dead zone, FlexScan FS200 PON OTDRs test FTTH PONs up to 1:64 while still detecting and measuring events only meters apart.


Fast! FleXpress mode completes dual-wavelength tests in <5 seconds – 10 x faster than conventional OTDRs! For multi-fiber testing, FS200s automatically control AFL’s MFS Multi-Fiber Switch (12-fiber MPO switch) to further reduce multi-fiber test time.


Pocket-sized: At 3.5 x 6 x 1.75 in. (86 x 160 x 43 mm) and less than one pound (0.4 kg), FlexScan FS200 OTDRs truly fit in your pocket, yet still provide a large, bright indoor/outdoor touchscreen display, and all-day operation.

• FS200-304:  1310/1550/1650 PON OTDR version for in-service PON troubleshooting, as well as out-of-service PON or point-to-point network installation verification or troubleshooting.
