OVERVIEW

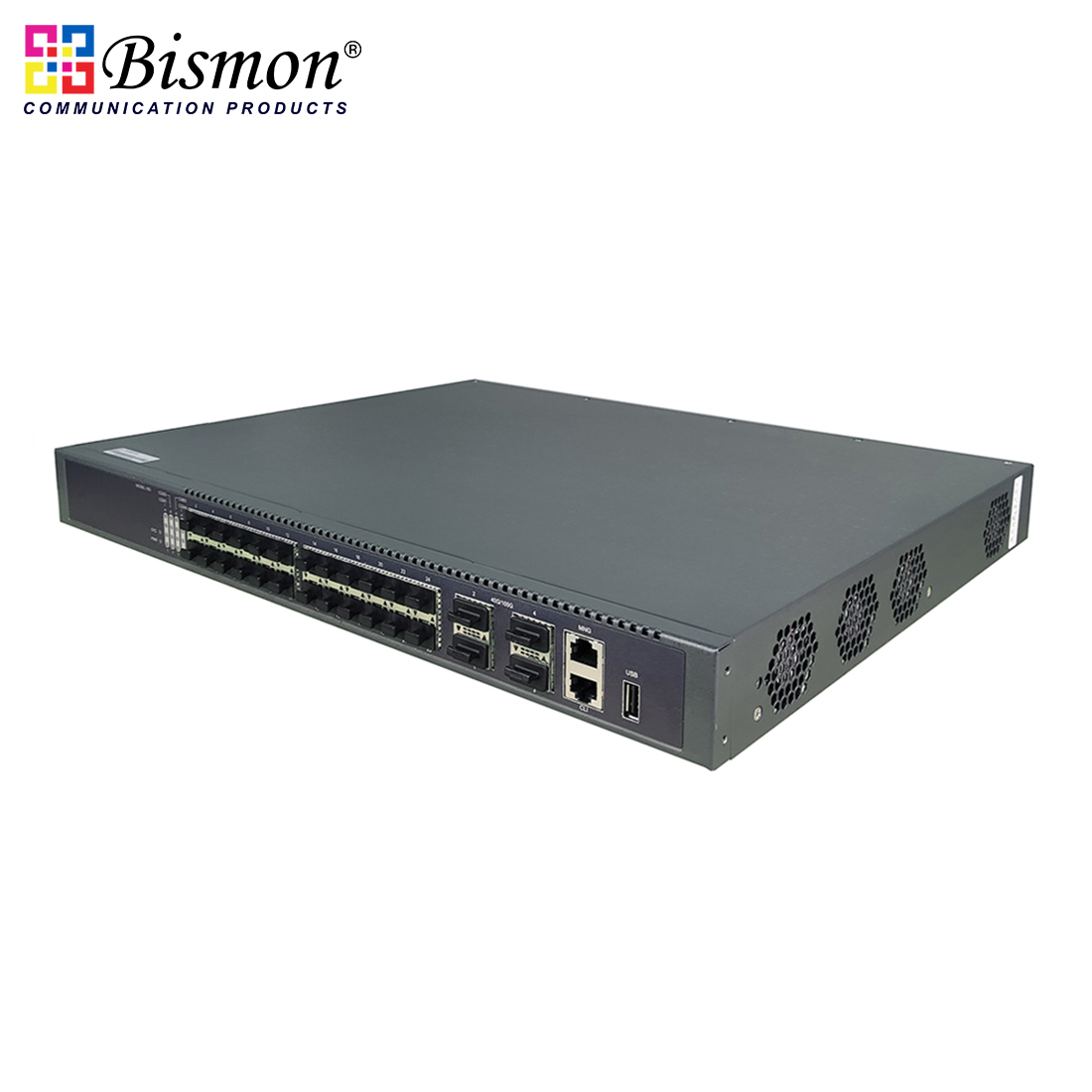

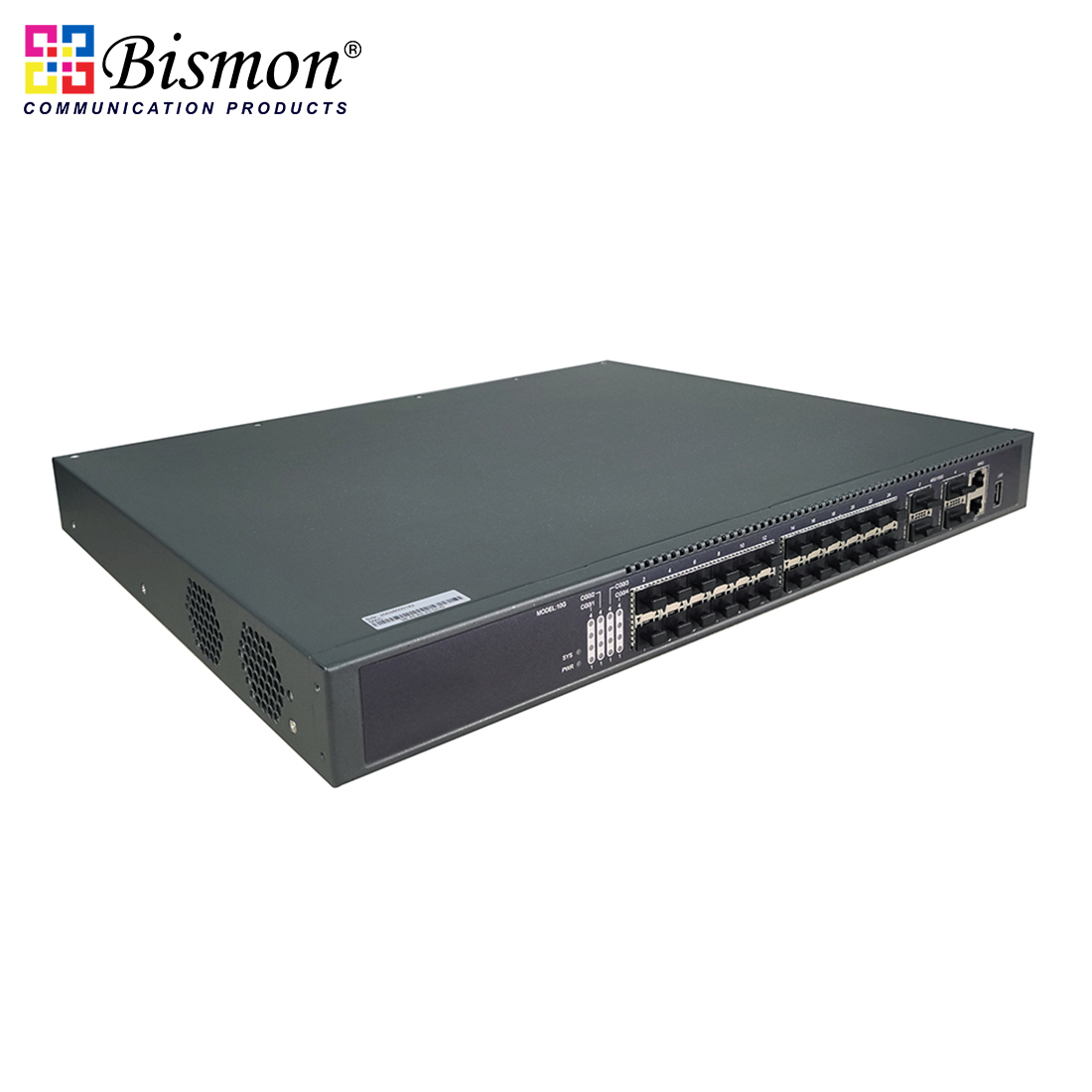

The B1-98240-4QFM is a high-performance 10G L3 managed aggregation switch launched by ONV, which is oriented to the next-generation metropolitan area networks, data centers, campus networks, and enterprise networks. It has 24*1/10G SFP+ ports and 4*40/100G (QSFP28) fiber ports. Use 1U/19-inch installation.
The B1-98240-4QFM is equipped with complete L3 management functions, with comprehensive protocols and applications. On the basis of providing high-performance L2/L3/L4 wire-speed switching service deployment and management, it further integrates IPv6, MPLS VPN, and network Multiple network services such as security, traffic analysis, virtualization, etc., combined with multiple data center high-reliability technologies such as uninterrupted upgrades, uninterrupted forwarding, graceful restart, redundancy protection, etc., to ensure the longest uninterrupted communication capability of the network. The switch supports functions such as RIP, OSPF, BGP, and PIM-DM/SM, and is ideal for traditional or fully virtualized data centers. Network application managers can flexibly select appropriate optical fiber connections based on transmission distance or required transmission speed to effectively expand 1G/10G/40G/100G networks. The ONV98240-4QFM has 1.28Tbps switching capacity, and key modules adopt 1:1 redundancy backup. It can handle very large amounts of data in a secure topology and is very suitable for network cores, data centers, and metropolitan area network cores in various industries. and convergence, campus network core, and other places.
FEATURE
Advanced hardware architecture, powerful processing capabilities
- Standard data center switching between front-back mode and back -front mode deign and fan automatic speed regulation.
- Adopting advanced hardware architecture design, it supports 24*1/10G SFP+ ports and 4*40G/100G (QSFP28) fiber ports.
- Equipped with ASIC switching chip and multi-core processor, with switching capacity of 1.28Tbps, meeting the high performance, high capacity, high density, and scalability requirements of the data center.
Powerful data service guarantee
- Support ISSU (In-Service Software Upgrade) to ensure uninterrupted forwarding of user data during system upgrade and master switch.
- Complete Ethernet OAM mechanism, supporting 802.3ah, 802.1ag, and ITU-Y.1731, enabling rapid detection and location of faults through real-time monitoring of network operating status.
- Based on HPS (Hitless Protection System), the power system adopts a redundant design, modules support hot swapping and support seamless switching in case of failure without interrupting business.
- The ultra-high-precision BFD bidirectional link detection mechanism realizes millisecond-level fault detection and business recovery through linkage with L2/L3 protocols, greatly improving the reliability of the network system.
- Supports STP/RSTP/MSTP protocols, and VRRP protocols, and supports ring network protection, dual uplink primary and secondary link protection, LACP link aggregation, and other simple and efficient redundant protection mechanisms.
- Support virtual cluster switching technology, which can virtualize multiple physical devices into one logical device. The performance, reliability, flexibility, and management of the virtual system have unparalleled advantages compared to independent physical devices. The entire virtual system realizes unified management of a single IP, and the actual physical equipment is transparent to users, simplifying the management of network equipment and network topology, greatly improving network operation efficiency, thereby effectively reducing operation and maintenance costs.
Rich business features
- Support IPv6 protocol family, IPv6 neighbor discovery, ICMPv6, Path MTU discovery, DHCPv6 and other IPv6 features.
- IPv6-based Ping, Traceroute, Telnet, SSH, ACL, etc., to meet the needs of pure IPv6 network equipment management and business control.
- Complete L2 and L3 multicast routing protocols to meet the access needs of IPTV, multi-terminal HD video surveillance, and HD video conferencing.
- L2 and L3 MPLS VPN can form a large-scale MPLS VPN core network to meet the access needs of industry private network VPN users and enterprise network VPN users.
- IPv4 to IPv6 transition technologies, including IPv6 manual tunnel, automatic tunnel, 6to4 tunnel, ISATAP tunnel, and other tunnel technologies to ensure smooth transition from IPv4 network to IPv6 network.
- Support IPv6 multicast features such as MLD and MLD Snooping, IPv6 static routing, RIPng, OSPFv3, BGP4+ and other IPv6 layer three routing protocols, providing users with complete IPv6 layer two and three solutions.
- L3 routing protocol and large routing table capacity meet various types of network interconnection needs and can build ultra-large data center networks, campus networks, enterprise networks, and industry user private networks.
Security
- Support IEEE 802.1x, Radius, BDTacacs+, etc., and provide users with a complete security authentication mechanism.
- Advanced hardware architecture design, hardware realizes hierarchical scheduling and protection of messages, supports defense against DoS, TCP SYN Flood, UDP Flood, broadcast storm, large traffic, and other attacks on the device, and supports command line classification Protection, different levels of users have different management rights.
- Support plain text or MD5 authentication of related routing protocols, and uRPF reverse routing lookup technology to effectively control illegal services. Hardware-level packet in-depth detection and filtering technology support in-depth detection of control packets and data packets, thereby effectively isolating illegal data packets and improving the security of the network system.
Stable and reliable
- Supports Efficient Ethernet and complies with International standard IEEE 802.3az.
- Smart fan design supports switching between front-back mode and back -front mode and fan automatic speed regulation.

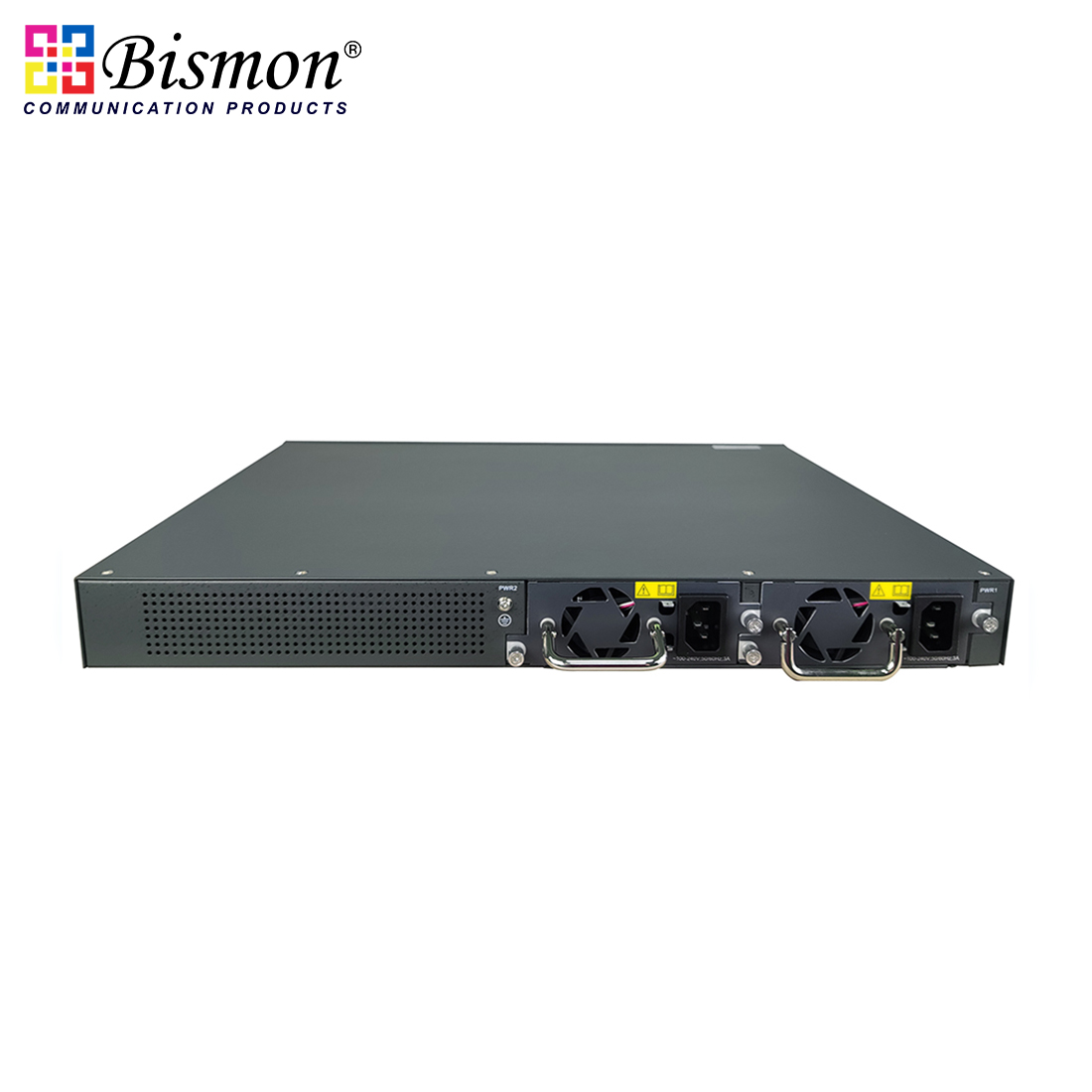

- It adopts an advanced redundant dual power supply system architecture design which can realize the function of efficient power switching, unique power monitoring, slow start, real-time monitoring of the whole machine operating status, intelligent adjustment, and deep energy-saving.
Easy O&M management
- Support CPU monitoring, memory monitoring, Ping detection, cable length detection.
- Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.
- Support HTTPS, SSLV3, SSHV1/V2 and other encryption methods, making management more secure.
- Support LLDP to facilitate the network management system to query and judge the communication status of the link.
- Support Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3) and other diversified management and maintenance.
DIMENSION
![28-port 10G core routing switch, routing switch, core switch](https://www.onvcom.com/Uploads/202309/64f58ebb1267b.jpg)
![28-port 10G core routing switch, routing switch, core switch](https://www.onvcom.com/Uploads/202309/64f58ebbdc1cd.jpg)
