OVERVIEW

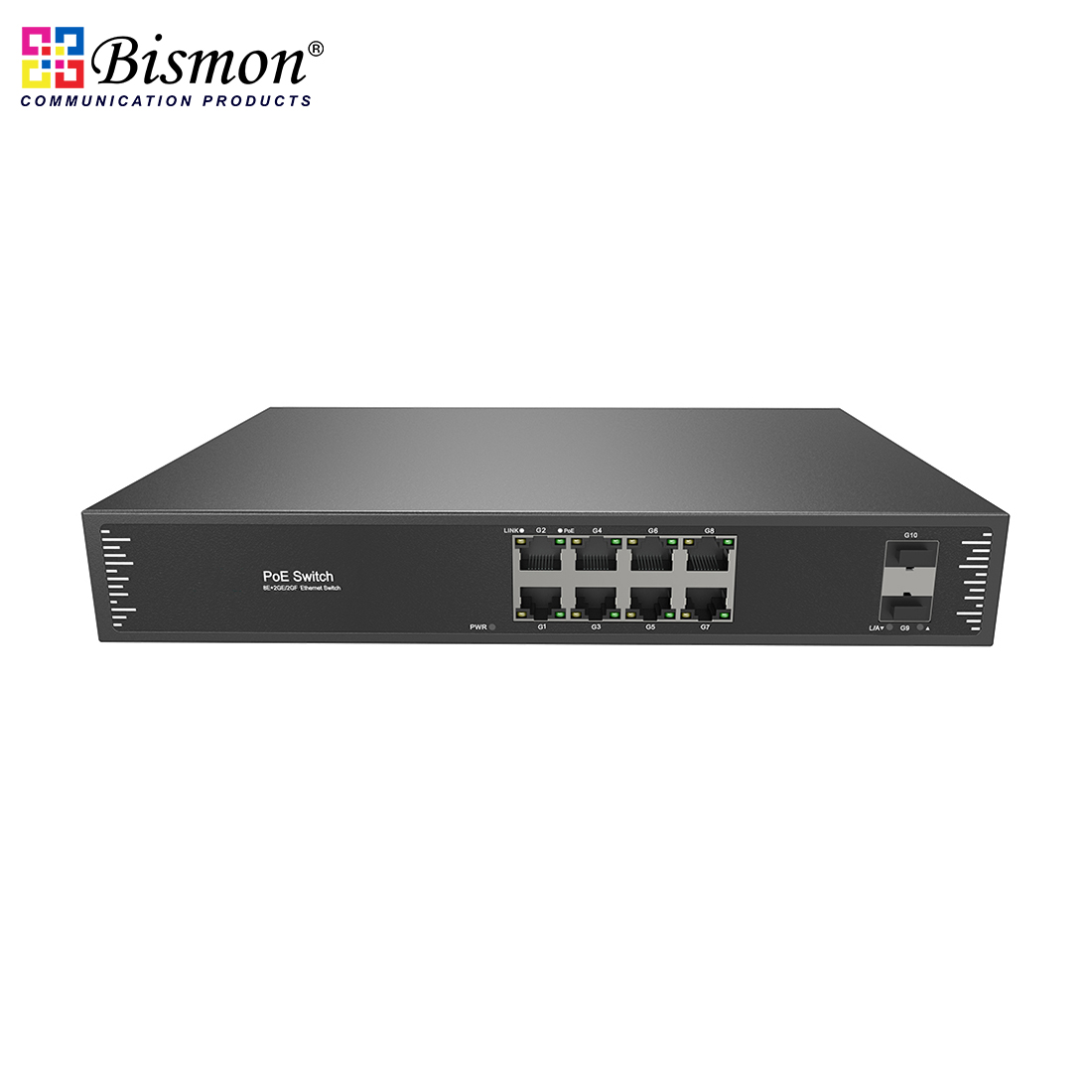

The B1-POE33108PF is a full gigabit unmanaged PoE fiber switch independently developed by ONV. It has 8*10/100/1000M RJ45 ports and 2*1000M SFP slot ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power reaches 30W, and the maximum PoE output power is 130W(at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

Full gigabit access, gigabit SFP port uplink

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Supports gigabit Ethernet port and gigabit SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Intelligent PoE power supply

- IEEE802.3af/at PoE standard, without damaging non-PoE devices.

- 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Low power consumption, galvanized steel casing. The fan active cooling.

- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.

- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

DIMENSION
