OVERVIEW

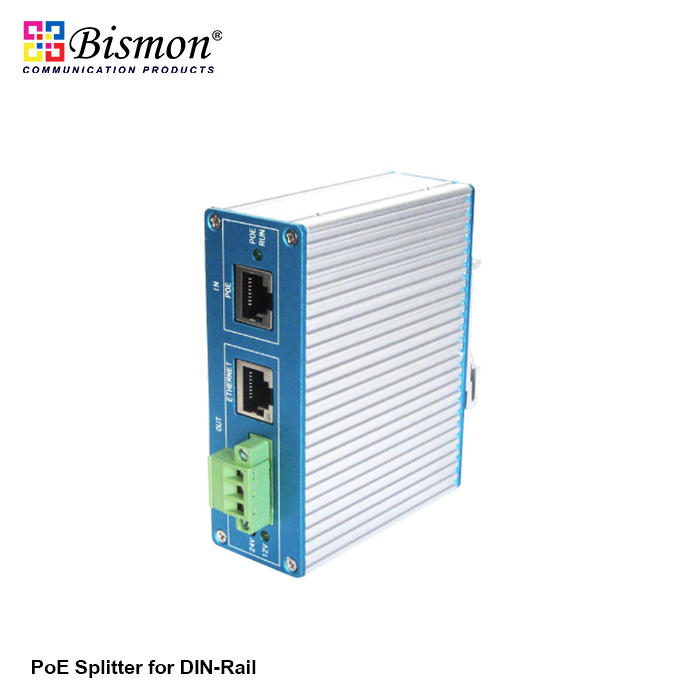

The B1-PD3401G is a Gigabit bt PoE splitter independently developed by ONV. It has 2*10/100/1000M adaptive RJ45 ports and a 1*DC power output terminal. 1 RJ45 port can support bt PoE input (power receiving) and is backward compatible with the IEEE 802.3 af/at PoE standard. The DC output is 12V and the max load power is 60W. Provide power and network connections for network devices that do not support PoE, and quickly deploy network terminal equipment such as PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power PoE lighting without being limited by power lines. Unmanaged model, plug and play, no configuration required, easy to use.
FEATURE
Flexible expansion and convenient connection
- Support IEEE 802.3 af/at/bt standard protocol connection, automatic power identification, and classification to ensure long-term stable operation of high-power equipment.
- DC to DC conversion, safe and reliable use. Output DC voltage is 12V to meet the power supply requirements of most network terminal products in the market.
Stable and reliable, easy to use
- CCC, CE, FCC, RoHS.
- Plug and play, no configuration, simple and convenient.
- The user-friendly panel can show the device status through the LED indicator of PWR and PoE.
- Low power consumption, no fan, aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the PoE splitter.
DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-PD3401G
|
B1-PD3401G-24
|
|
Interface Characteristics
|
|
Fixed Port
|
1*10/100/1000M uplink RJ45 port (Data)
1*10/100/1000M bt PoE power receiving RJ45 port (Data/Power)
|
|
Ethernet Port
|
2 RJ45 ports can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/MDI-X self-adaption
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
LED Indicator
|
Power: DC12V(Yellow), DC24V(Red), PoE: PoE (Green)
|
|
PoE Power Supply
|
|
PoE Port
|
PoE port support 90W bt PoE input and is backward compatible with IEEE 802.3 af/at
|
|
PoE Standard
|
IEEE 802.3 af/at/bt
|
|
Power Supply Pin
|
1/2(+)3/6(-) & 4/5(+)7/8(-)
|
|
Rated Input Voltage
|
DC48-57V
|
|
Max Output Power/ Voltage
|
60W/DC12V
|
60W/DC24V
|
|
Power Consumption
|
Standby<2W, Full load≤60W
|
|
Efficiency
|
≥81.5%
|
|
Ripple and Noise
|
Under the condition of rated output power, output ripple: 100mV /Vp-p(max)
Rise Time: When input48Vdc and output max load, the max time is 50ms.
Startup Delay Time: When input 48Vdc and output max load, the max startup time is 2S.
|
|
Short circuit Protection
|
Normal operation can be resumed after the load short circuit is removed.
|
|
Over-current Protection
|
The power supply will automatically resume normal operation after the over-current fault is removed.
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-20°C~+55°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40°C~+80°C, 5%~95% RH Non condensing
|
|
Dimension
|
118*95*28mm
|
|
Net /Gross Weight
|
0.3kg /0.35kg
|
|
Installation
|
Desktop, Wall mount, DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Port lightning protection: 4KV 8/20us, Protection level: IP40
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
2 year, lifelong maintenance.
|
