OVERVIEW

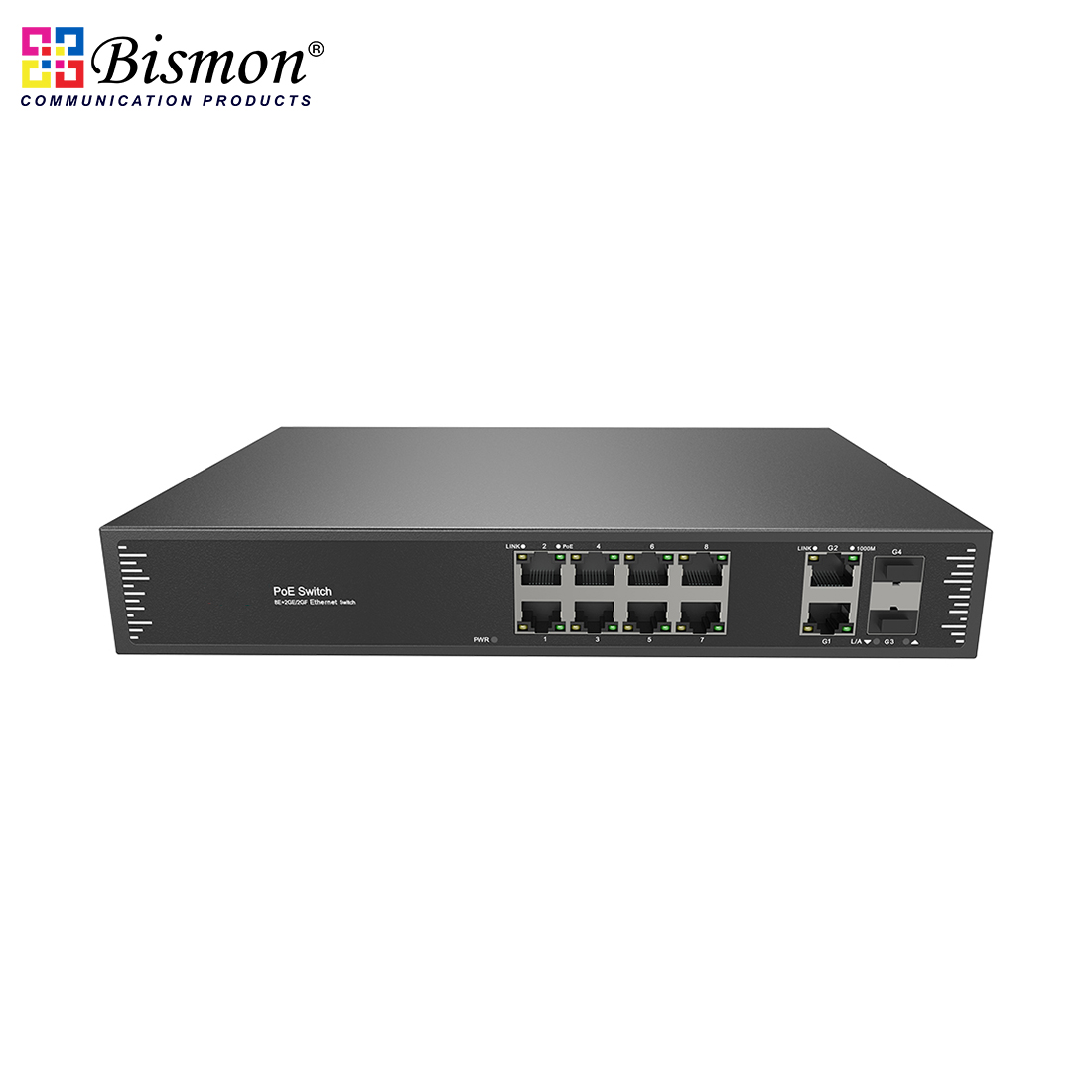

The B1-POE31128PF is a gigabit uplink unmanaged PoE fiber switch independently developed by ONV. It has 8*10/100Base-TX PoE ports and 2*10/100/1000Base-T RJ45 port and 2*1000Base-X SFP fiber slot ports. Port 1-8 can support IEEE802.3af/at PoE standard, single port PoE power up to 30W, the maximum PoE output power is 130W (at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, IP camera, IP telephone and other PoE terminal equipment. It is suitable for hotel, campus, park, commercial supermarket, scenic spot, factory quarter and SMB small and medium-sized enterprises to form a cost-effective network.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100M access, gigabit TP&SFP port uplink

- Support 10/100M RJ45 port and gigabit TP&SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

- 8*10/100Base-TX RJ45 ports support PoE power supply to meet the needs of PoE power supply in various scenarios in the industrial field.

- IEEE802.3af/at PoE standard, without damaging non-PoE devices.

- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Stable and reliable

- CCC,CE, FCC, RoHS.

- Plug and play, no configuration, simple and convenient.

- Low power consumption, galvanized steel casing, No fan.

- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
