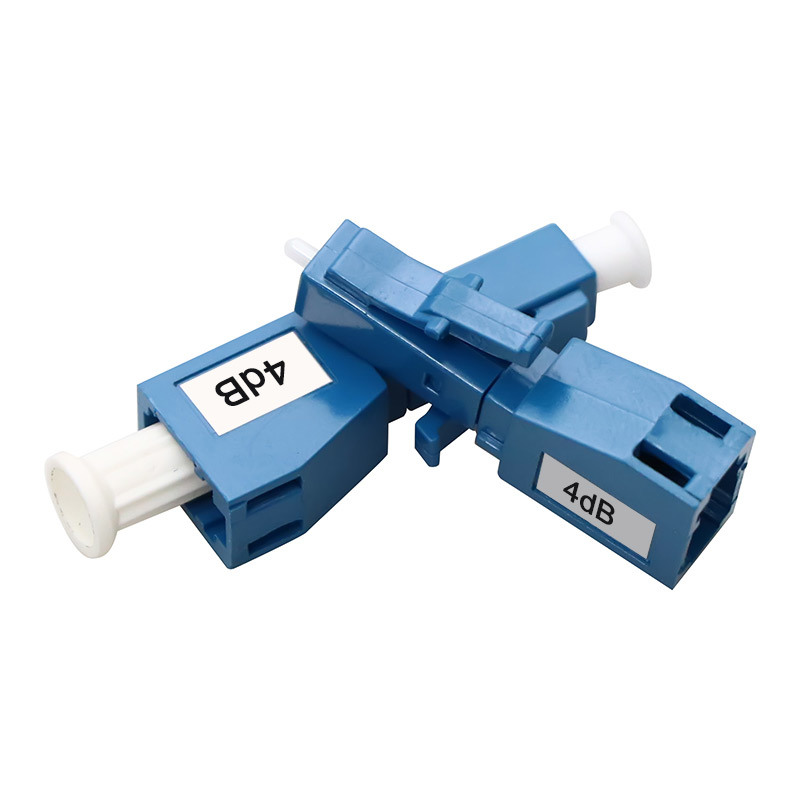

LC/UPC male-LC Female 4dB Attenuator for 1310/1550nm
Single-mode fiber attenuator that reduces the intensity of the optical signal to avoid receiver saturation.
The design of the attenuator is female-male, also known as "Buildout" and allows it to be connected directly to the equipment.
The attenuation value is 4dB and it operates in a wavelength range from 1240 nm to 1600 nm.
Fiber Connector
|
LC/UPC
|
Ferrule Type
|
Zirconia Ceramic
|
Connector Gender
|
Fixed Male to Female
|
Transfer Mode
|
Single Mode
|
Attenuation
|
4dB
|
Operating Wavelength(nm)
|
1260~1620(SM)
|
Attenuation Accuracy
|
±0.5dB
|
Return Loss
|
≥55dB
|
Polarization Dependent Loss
|
≤0.2dB
|
Max Optical Input Power
|
200mW
|
Humidity
|
95%RH
|
Operating Temp Range
|
-40~80°C
|
Storage Temp Range
|
-40~85°C
|
|
|
