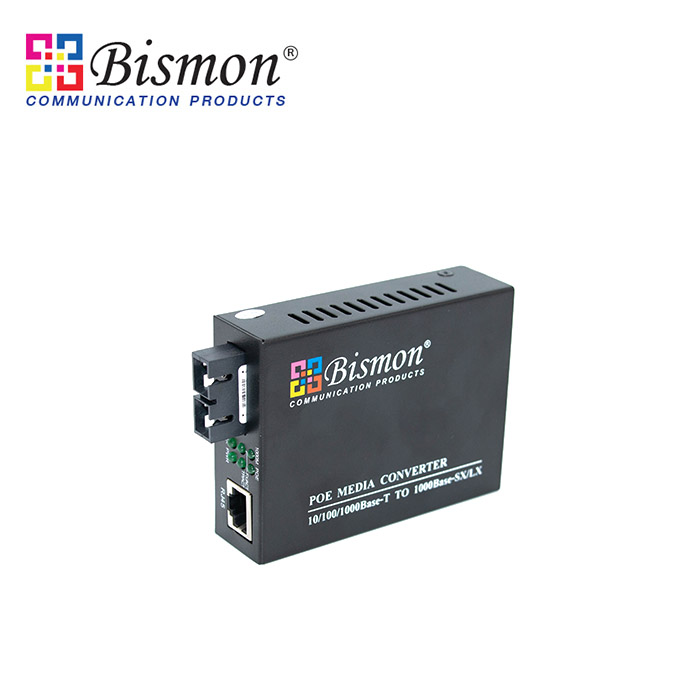

Media Converter 10/100/1000 BaseTX PoE to 1000 Base FX,SC Dual fiber, Single-mode,10KM. (af/at: 15.4/25.5W)
This Media Converter is 10/100/1000Base-T/TX to 1000Base-FX Power over Ethernet(PoE) device that serves as Power Sourcing Equipment(PSE). This allows the converter to provide power to IEEE802.3af/at PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such
as Wifi Aps. IP Cameras or IP Phones.etc.
Feature
1?Support 1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
2?With PoE supported to save power infrastructure cost;
3?SC connector with single-mode&single-fiber, optic fiber transmission distance up to 20KM;
4?Support IEEE802.3i 10BASE-T, IEEE 802.3u 100Base-T,IEEE802.3z, 1000BASE-TX,IEEE802.3 af/at standard
5?No storage and forward technology, without delay;
6?Plug and play, no other software and transfer agreement needed;
7?Stand alone units with mini design;
8 ?Built-in splicing slot, with magnet and hanger, unique and integrated design,
wall-mounted, splicing, and desktop installations available, which suit all kinds of engineering installation.
Media Converter 10/100/1000 BaseTX PoE to 1000 Base FX,SC Dual fiber, Single-mode,10KM. (af/at: 15.4/25.5W)
Standard
|
IEEE802.3i 10BASE-T
|
IEEE802.3u 100BASE-TX
|
IEEE802.3z 1000BASE-TX
|
IEEE802.3x Flow Control
|
IEEE802.3af Power over Ethernet
|
PoE power
|
15.4W per port (IEEE802.3af)
25.5W per port (IEEE802.3at)
|
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
|
Cable: UTP cat.5 or higher
|
Fiber type
|
Multi mode(MM): 62.5/125m.50/125m
|
Single mode(SM): 9/125m
|
Distance
|
Multi mode & Dual Fiber 550M
|
Single mode & Single Fiber:20/40/60/80/120KM
|
Data rate
|
10/100/1000Mpbs
|
Connector
|
1 RJ45 +1 SC/FC/ST/LC(SFP Slot)
|
Wavelength
|
1310nm 1490nm 1550nm
|

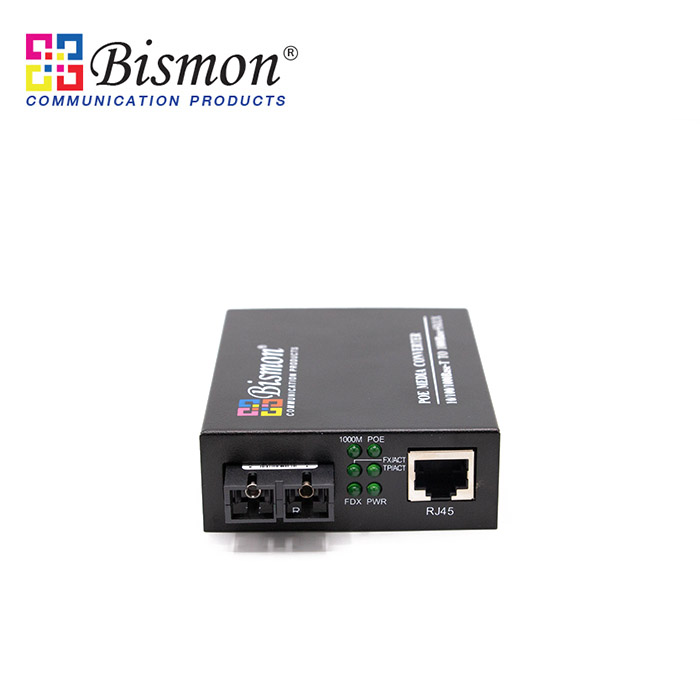

Diagnostic LED
|
Power Link/Activity
|

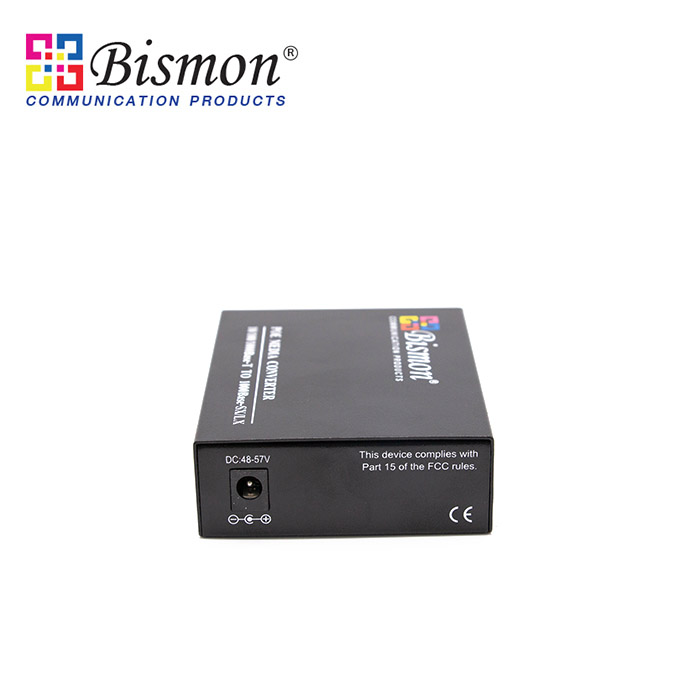

Power
|
DC52V/0.7A/36W
|
Power Consumption
|
<8w
|
Temperature
|
0~50?(Operating)
-20~70?(Storage)
|
Humidity
|
5%~90%
|
Dimension
|
90x70x26mm
|
