OVERVIEW

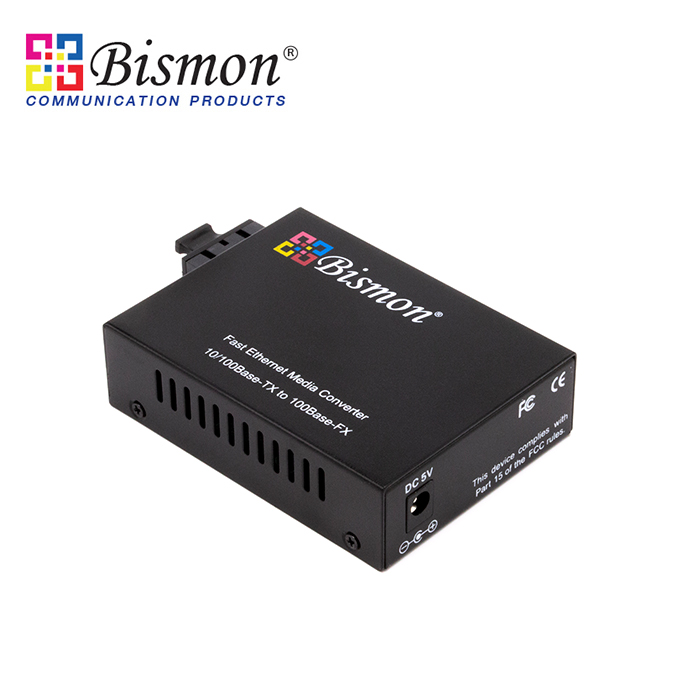

Media Convertor 10/100Base-TX to 100Base-FX,(MM,SC Port) The Media Converter complies with IEEE802.3,IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100Base-TX and 100Base-FX Ethernet .The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable.
The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another for receiving-RX),two RJ-45 Jack and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link ,UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates, It can configured automatically for Full Duplex or Half Duplex operation. It is compact, cost-effective, low dissipative, high reliable and stable, It can be used in standalone applications with 220VAC or 48VDC power supply optional.
Main Feature
• Complies with IEEE 802.3 10/100 Base-T standard.
• Complies with IEEE 802.3u 100 Base-TX/FX standards.
• Max. 2M buffer memory built in chip.
• Back pressure flow control for full/half duplex IEEE802.3X. Can work Store and Forward port.
• Automatic identification of MDI/MDI-X cross-line.
• Auto negotiation for 10/100Mbps TP port speed.
• High-performance 1.4Gbps memory bandwidth.
• Transmission distance: Dual fiber multi-mode: 2km
Dual fiber single-mode: 25/40/60/80/100/120km
• Complies with FCC, 15 CLASS A and CE MARK
![](http://www.bismon.com/pic_product/pic_gall/B1-3305 Media Convertor 10100Base-TX to 100Base-FX(MM SC Port)-1.jpg)
![](http://www.bismon.com/pic_product/pic_gall/B1-3305 Media Convertor 10100Base-TX to 100Base-FX(MM SC Port)-2.jpg)
Specification |
|
|
|
Product Name |
10/100Base-TX to 100Base-FX ,20KM (Multi-Mode,SC Port ) |
Product Model |
B1-3305 |
Connector Type |
UTP RJ45 1 Port, SC Fiber connector |
Network Protocol |
IEEE802.3i 10Base-T standard, IEEE 802.3u 100Base-TX/FX standard |
Optical Fiber |
Dual fiber Multi-mode SC fiber port |
Optical Distance |
550 M |
Optical Wavelength |
850/1300 nm |
LED Display |
Status of power, FX link,Tx link, FDX/COL, PWR, SD. |
Power supply |
220V to Adaptor External 5V DC 1A |
Temperature |
0 C - 60 C |
Certification |
FCC, 15 CLASS A and CE MARK. |
