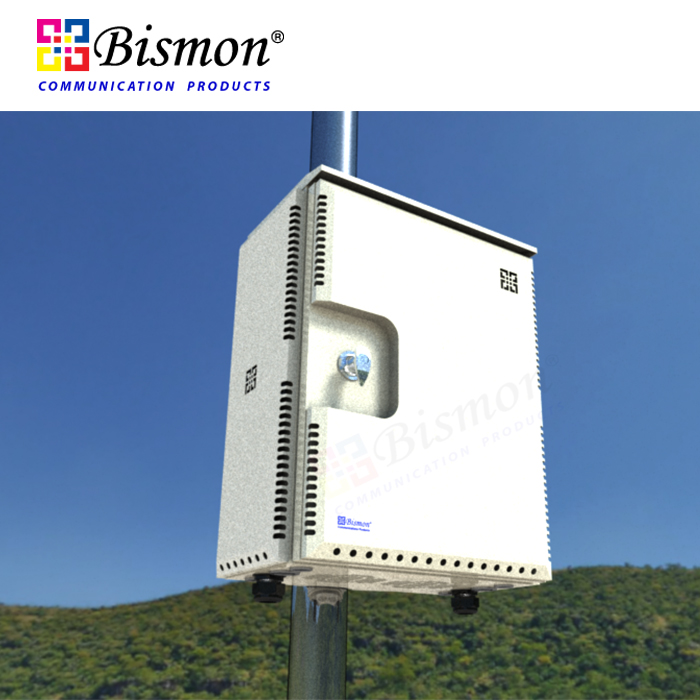

Professional Outdoor Cabinet Wall Mount Fiber 96 Port-aluminum (Double Layer)

Part number : B1-WM96-OUT-AL

Brand : BISMON

Price : 19,500.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Day

Minimum order quantity : 1 pcs

Warranty : 1 Year

OVERVIEW

Wall-Mount Outdoor Fiber Optic made of Aluminum. high quality and a long time for use. They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from 12-96 Fiber support ST/SC/FC Cable entry 8 port use cable glands EG/PG29 depend on cable dia. 2 PCS The cable can be held the preformed holes by a 2 section cable inlet or cable feed through grommets

Specification

Brand	Bismon
Model	B1-WM96-OUT-AL
Equipment Type	Wall Mount Enclosure
Size	600 mm x 440 mm x 245 mm (HighxWidthxDepth)
Standard	Compliant IP55 or IP 65 standard.
Material	Aluminum
Application	Can use for CCTV & IP Camera solution or other fiber optic solution
Features	• One door lockable and Double Layer steel sheet protech UV
	• Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened
	• Provided 4mm thickness CNC foam gasket for protection waterproof for body closure
	• 4 welded studs for fixing mounting plate and service equipment inside
	• Surface finished cabinet with epoxy-polyester coating.
	• All screw or nut made of stainless steel
	• Can Change one panel 12-96 port Max. Capacity use for snap-in plate 6 or 12 port
	• Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
	• Can support Multi-mode & Single-mode for 1 plate splice tray 12 or 24 port maximum 8 ea
	• Can support FAN 2x4” for air flow at Bottom of Cabinet

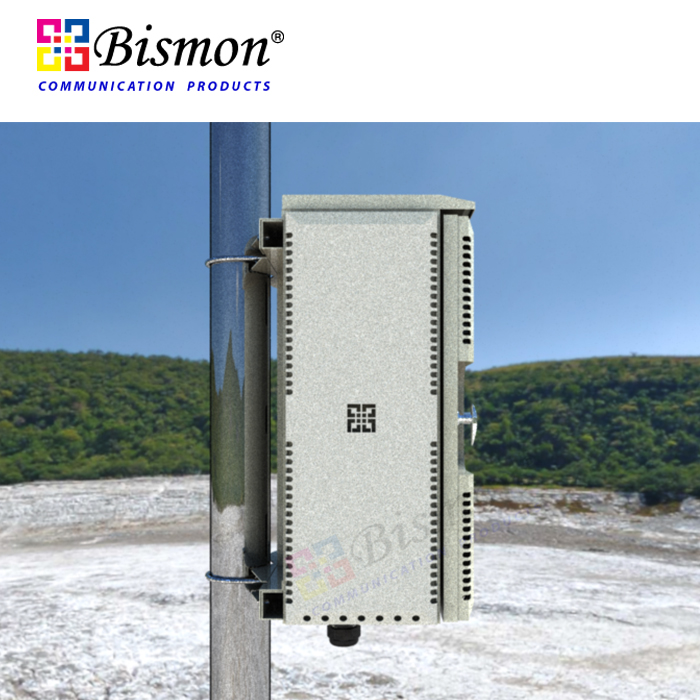

	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support steel plate for stand UPS 500-1000VA below wall box
	• Can support hinges provide 130 deg. door opening.
Option (Made to order)	-

Download Datasheet
