OVERVIEW

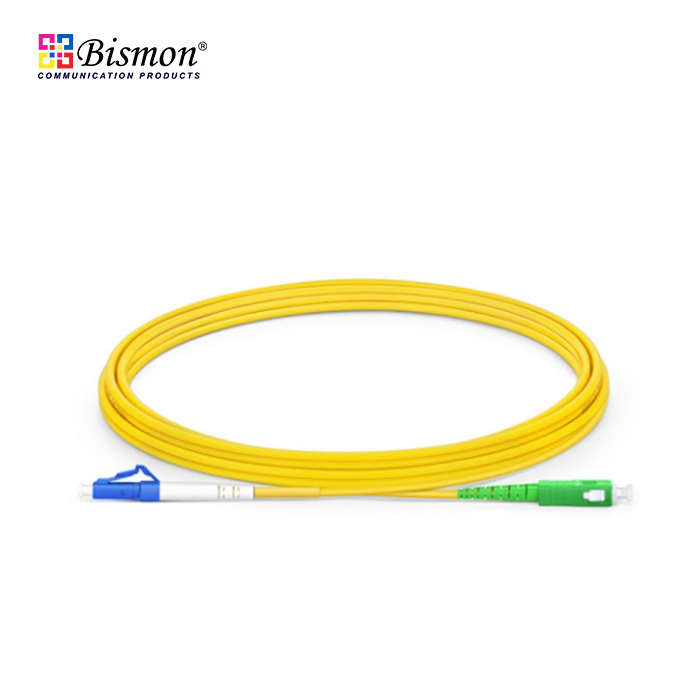

SC/APC-LC/UPC Patch cord Fiber Simplex PVC, 3M 9/125um (G.652.D) Sing-mode
Features
• PC, UPC, APC Polishing
• High return loss, Low insertion loss
• High reliability, High-temperature stability
• Compliant with Telecordia GR-326-Core, TIA/EIA and IEC
• Insert draw connection (simple, easy)
• Ferrule made from Zirconia/Ceramic
• Optical fiber cable Jacket Color: Yellow
• Single-mode attenuation (dB)/km: 0.34@1310nm/0.20@1550nm
• Comply to IEC standard
Applications
• CATV, Metro, Test equipment
• Telecommunication networks
• Local area networks (LANs)
• Wide area networks (WANs)
• Premise installations
• Data processing networks
![](http://www.bismon.com/pic_product/pic_gall/SC_APC-LC_UPC Patch cord Fiber optic Single-mode Simplex 3M.jpg)
Specifications
Fiber Type: Single Mode (G.652.D, G.657A1, G.657A2)
Insertion loss(dB): ≤0.2
Temperature(C): -40~+80
Repeatability(dB): ≤0.1
Durability: ≥ 1,000 mating
Return loss(dB): PC≥45, UPC≥50, APC≥65
Cable diameter(mm): Ø3.0, Ø2.0, Ø0.9
Tensile Strength(N): ≥90N(OD:3.0), ≥ 70N (OD:2.0mm)
Bend radius min.: 20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm
