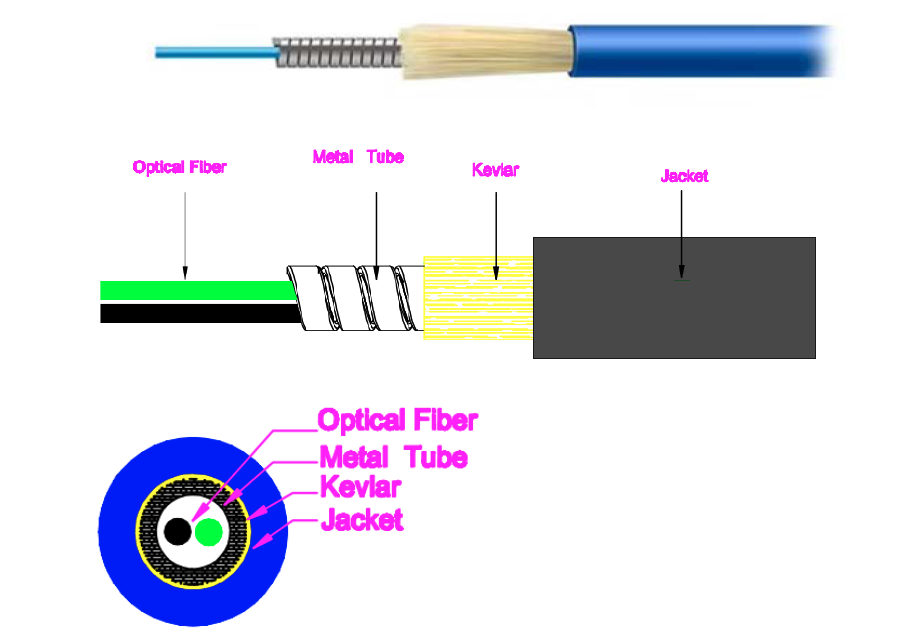

Specifications?

1). Tight-buffered fiber? SM or MM available 0.9mm tight-buffered fiber (YOFC or Draka

cable)

Color:SM/ White or yellow MM/Blue or orange

General attenuation:SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km

MM:850 nm≤3.0dB/km;1300 nm≤1.0dB/km

2). Stainless steel tube?

material?SUS204

Outer diameter?D??1.65±0.05mm

Insider diameter (d): 1.25±0.05mm

Thickness?t??0.22±0.02 mm

Gap(p)?0.25±0.02 mm

Compression resistant strength:≥300KGf/100MM

3). Aramid yarn?

model:1000dtex

Number:4 branch outside the stainless steel tube

Tensile strength:Short term:≥300N: long term:≥150N.

4). Jacket?

Material?PVC/LSZH /OFNP

Color:SM/blue; MM/grey

Thickness?t??0.45±0.05 mm

Outer diameter?D??4.8±0.1m
