OVERVIEW

(Completer set include SC/UPC pigtail OD:0.9mm, 12 color+SC/UPC adapter) อุปกรณ์พร้อมใช้งาน

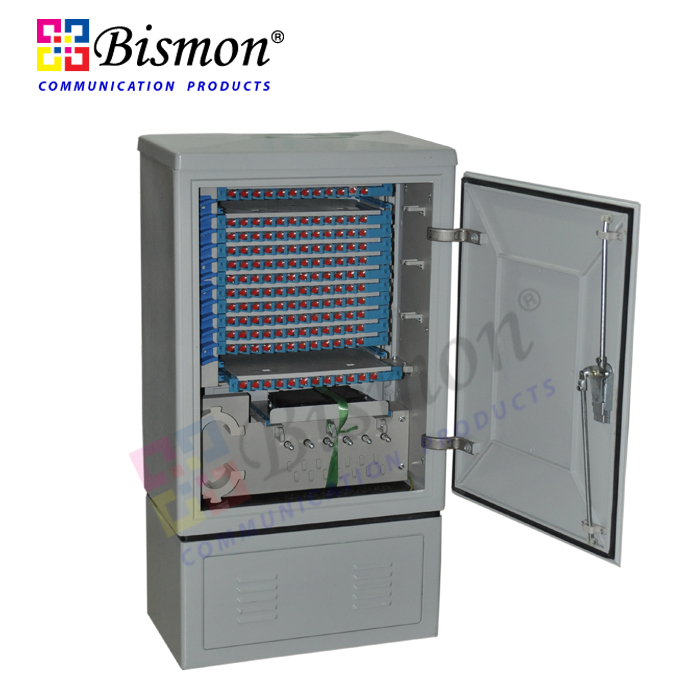

B1-18-C144 serial SMC Cross connect outdoor cabinet fiber optic cable can be applied in active link with trunk optical cables and cable distribution, accomplishing fusion, storage, distribution, and dispatch for the cables.

Feature

•  Standard case body, made of high intensity, anti-corrosive, anti-aging special composite material(SMC).

• Adapting to various bad weather conditions, with reliable sealing, water-proof and dampproof.

• Splicing & distribution integration module with adaptor assembling, fusion, and connection, storage in integration, inserted assembling

• Available for a different type of adaptors such as FC, SC, LC

• Adaptors assembling with deflexion of 30 angles to ensure fiber pigtail bending radius, with perfect control winding ring of the fiber in horizontal and vertical

• The bottom end is assembled with a spare splice tray, for direct fusion and connection of trunk optical cables and distribution cables

Specification

•  Working temperature -40C to +40C

•  Storage temperature -40C to +60C

•  Relative humidity ≤95% (+40C)

•  Atmospheric pressure 70Kpa to 106Kpa

•  Dimension : 530x330x960mm(WxDxH)

•  Capacity 144 core

•  Dimension 1035*550*310mm

•  Support Tray Max: 12 core (Adapter SC simplex, FC-Square type, LC-duplex)

•  Material SMC-Glass stee
