OVERVIEW

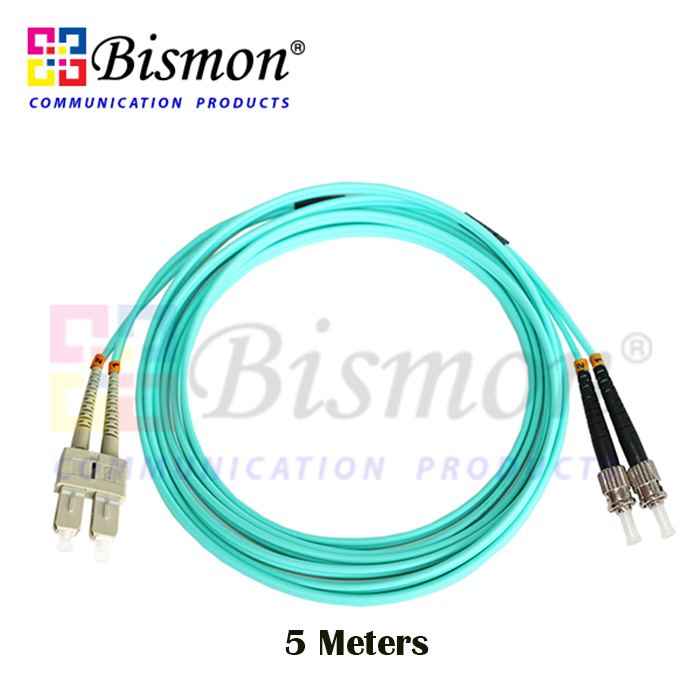

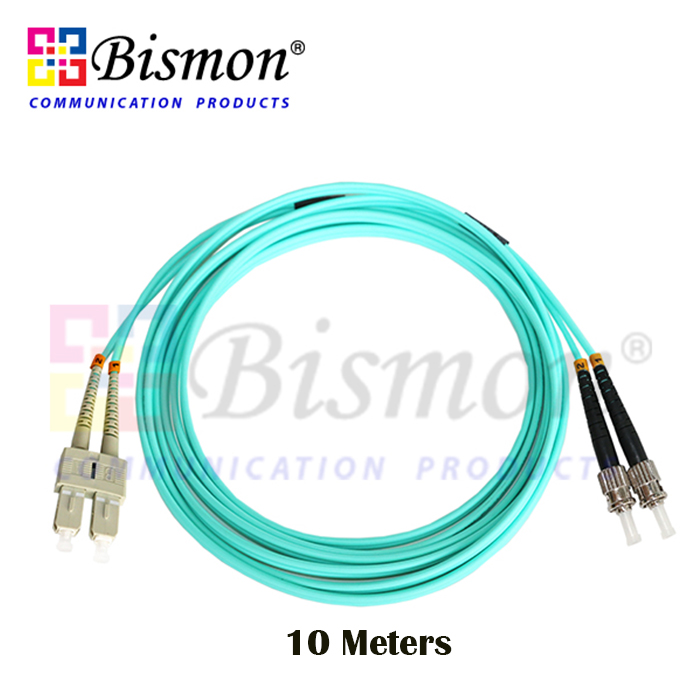

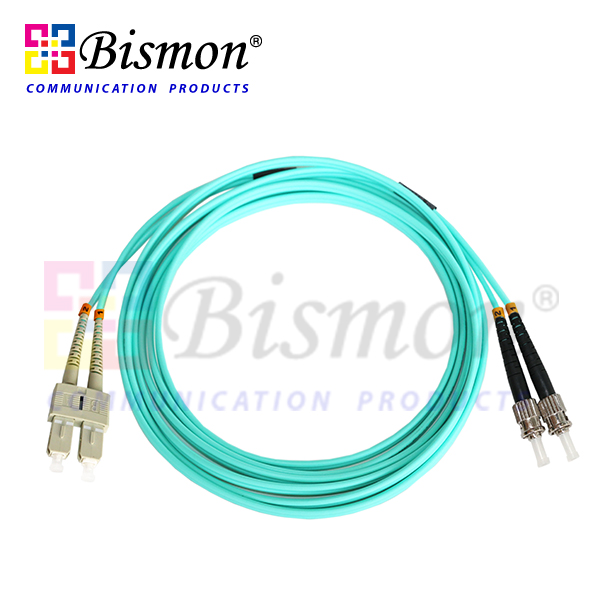

ST-SC Patch Cord Duplex Multi-Mode 50/125um 10GB (OM3) (2,3,5,10 Meters)
Features:
• PC, UPC Polishing
• High return loss, Low insertion loss
• High reliability, High temperature stability
• Compliant with Telecordia GR-326-Core, TIA/EIA and IEC
• Insert draw connection (simple, easy) (LC/UPC type)
• Comply to IEC Standard
• Multi-mode (OM3) attenuation (dB)/km: 2.8@850nm/0.8@1310nm
• Bandwidth OFL(MHz-km): 1500@850/500@1310nm
Applications:
• 10GB/s high speed LAN Network
• Telecommunication network
• Local area networks (LANs)
• Wide area networks (WANs)
• High speed and legacy networks with Gigabit & Fast Ethernet
• Support video, data and voice service
![](http://www.bismon.com/pic_product/pic_gall/ST-SC Patch cord Fiber optic duplex Multi-mode OM3 bismon.jpg)
Specification |
|
|
|
Item |
Multi-Mode 50/125 (OM3) |
Inserton loss(dB) |
≤0.25 |
Temperature(C) |
-40~+80 |
Repeatability(dB) |
≤0.1 |
Durability |
≥ 1,000 Matings |
Return loss(dB) |
PC≥45,UPC≥50,APC≥65 |
Cable diameter(mm) |
Ø3.0, Ø2.0, Ø0.9 |
Tensile Strength(N) |
≥90N(OD:3.0), ≥ 70N (OD:2.0mm) |
Bend radius min. |
20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm |
Cable design |
PVC Jacket or LSZH |
Color |
Aqua color |
Connector Type |
ST-SC |
Length |
2 Meter |
