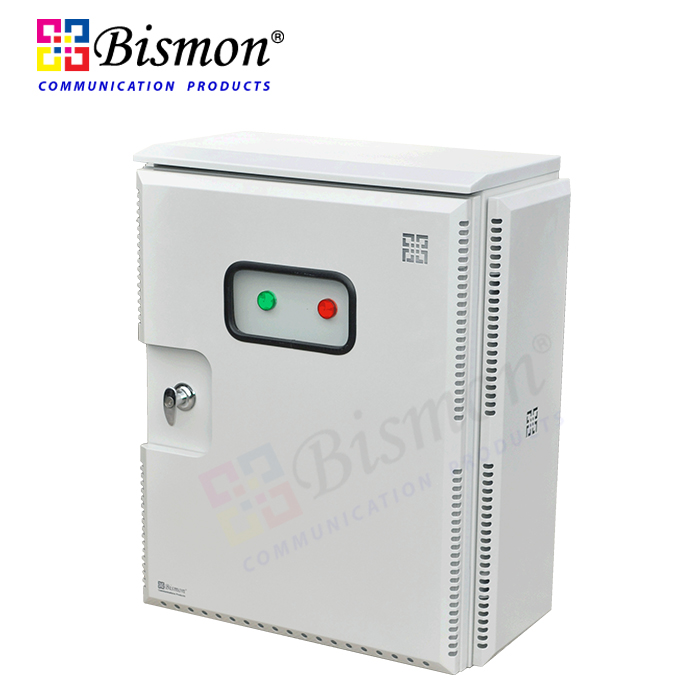

Wall Mount Outdoor Fiber optic Double Layer(Pilot Lamp)(700x 540x 260mm)

Part number : B1-WM96-OUTR752

Brand : BISMON

Price : 18,000.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

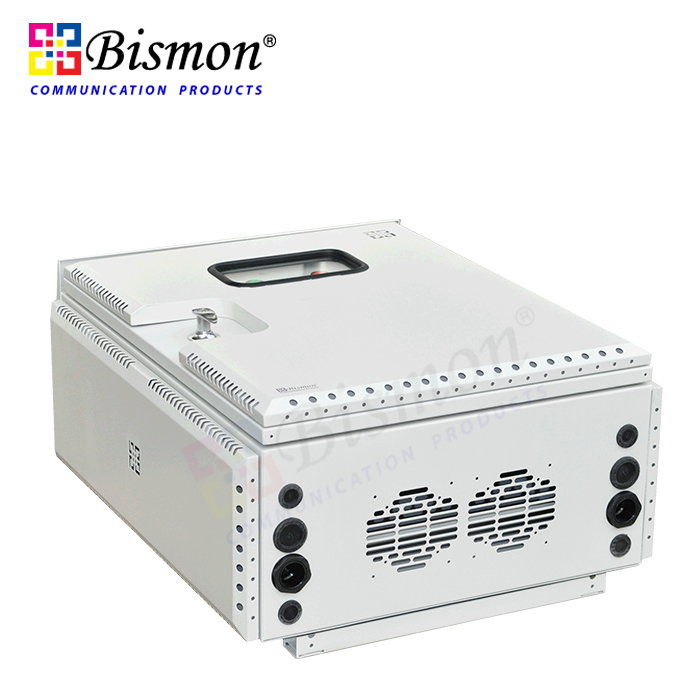

Wall-Mount Outdoor Fiber Optic made of EG(Electro-Galvanized) steel high quality and a long time for use. They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from 12-96 fiber. Cable entry 8 port use cable glands EG/PG29 depending on cable dia. The cable can be held in the preformed holes by a 2 section cable inlet or cable feed-through grommet, Pilot lamp show status.

ตู้สำหรับมืออาชีพด้านระบบกล้องวงจรปิดและระบบคอมพิวเตอร์เทเลคอมเท่านั้น

Specification

Brand	Bismon
Model	B1-WM96-OUTR752
Equipment Type	Wall Mount Outdoor
Size	700 mm x 540 mm x 260 mm (HighxWidthxDepth)
Standard	Compliant IP55 or IP 65 standard.
Material	(EG)-Electro Galvanised Steel Thick 1.2mm
Application	Can use for CCTV & IP Camera solution or other fiber optic solution

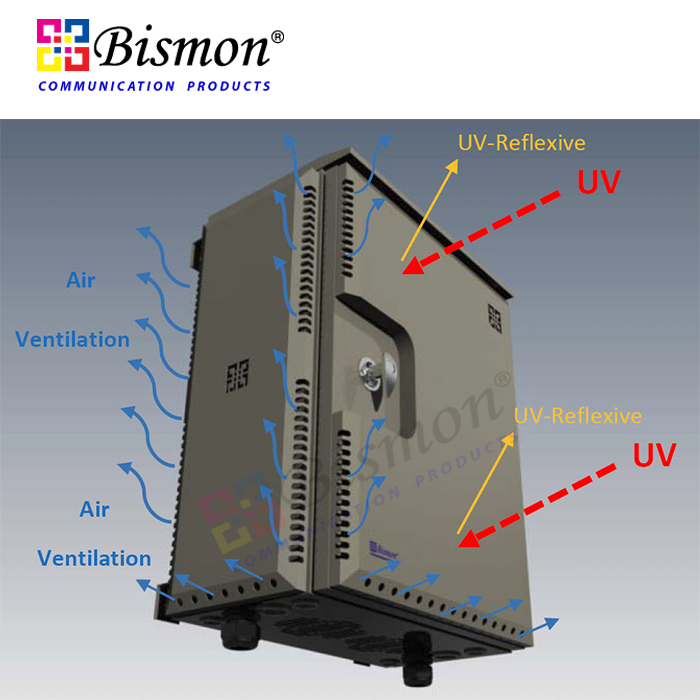

Features	• One door lockable and Double Layer steel sheet protech UV,

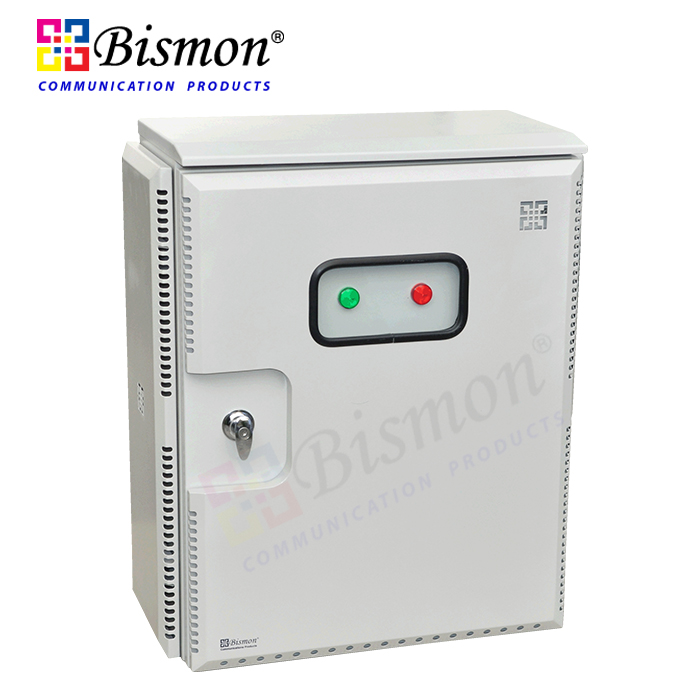

	• 2 Pilot Lamp show status LED and GREEN Color in side the cabinet outdoor
	• Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened.
	• Provided 4mm thickness CNC foam gasket for protection waterproof for body closure

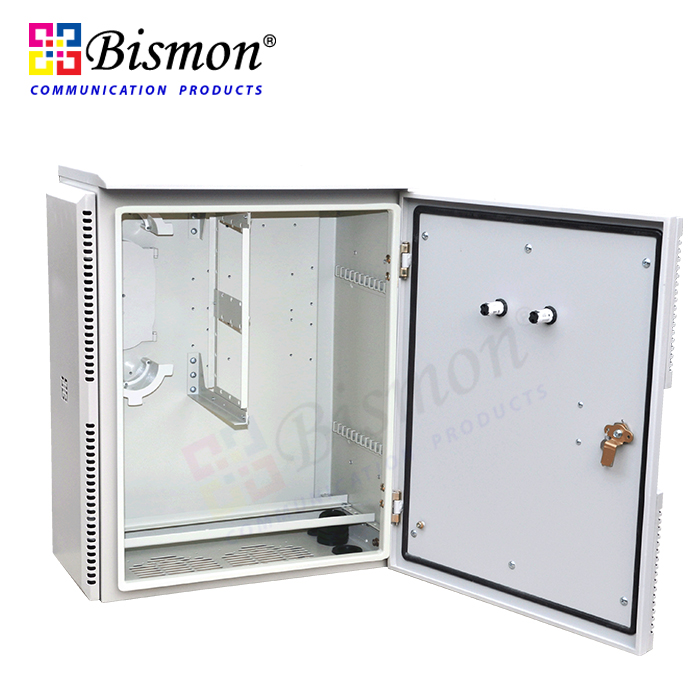

	• 4 welded studs for fixing mounting plate and service equipment inside.
	• Surface finished cabinet with epoxy polyester coating color outdoor type.
	• All screw or nut made of stainless steel
	• Can Change one panel 12-96 port Max. Capacity use for snap-in plate 6 or 12 port
	• Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
	• Can support splice tray fiber optic 12 or 24 port maximum 8 ea

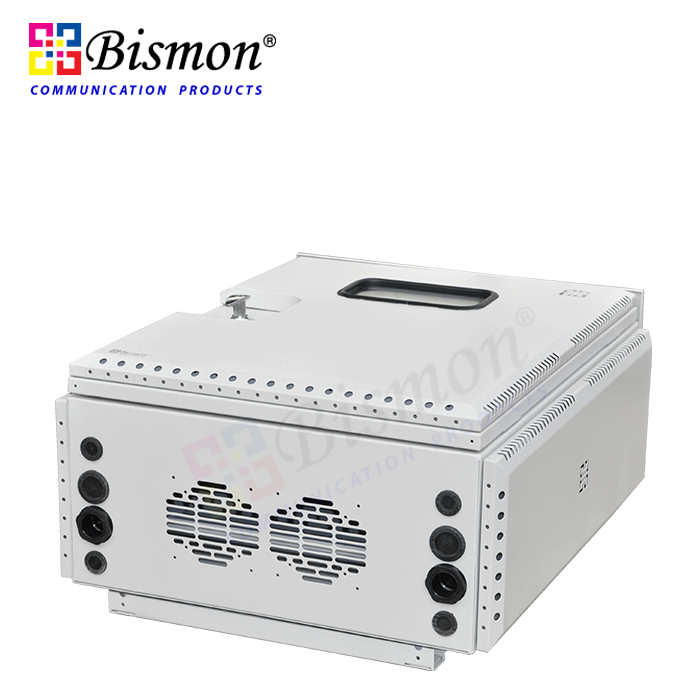

	• Can support FAN 2x4” (4x4inch) for air flow

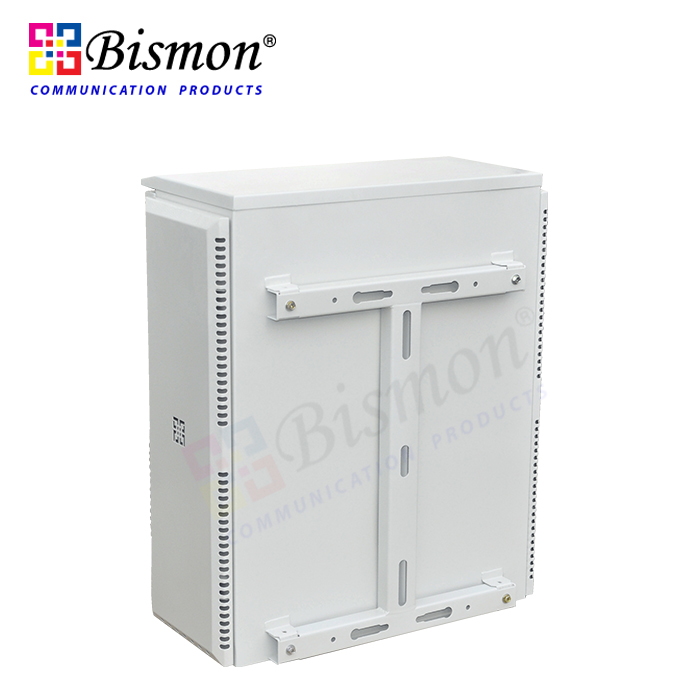

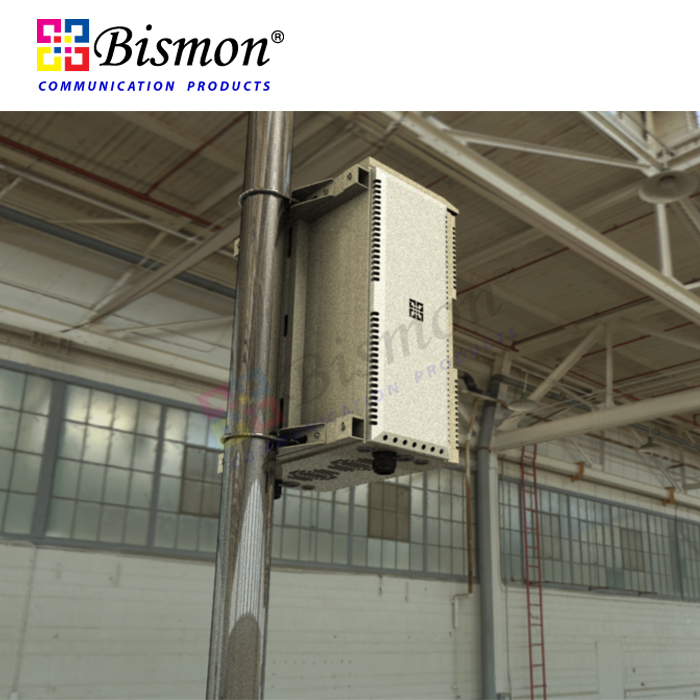

	• Complete set tools for hang on pole and support 4 hole for wall type
	• Can support steel plate for stand UPS 500-1000VA below wall box

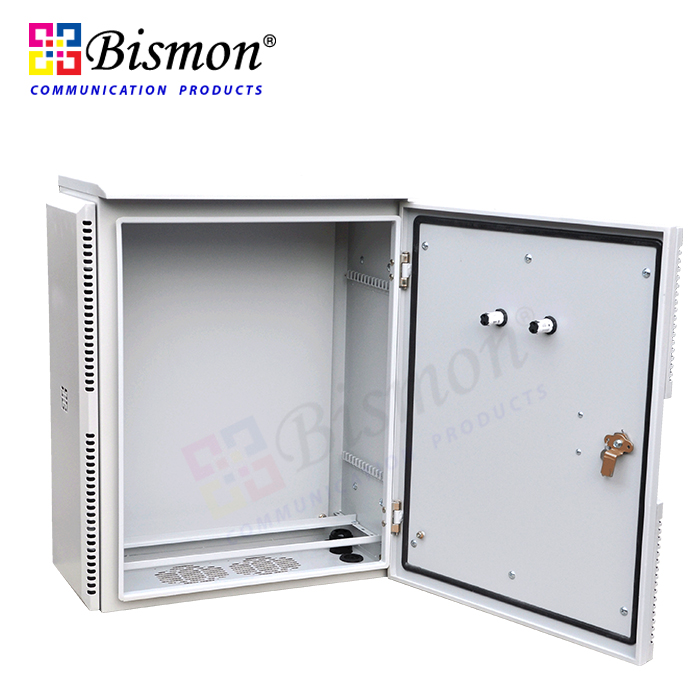

	• Can support hinges provide 130 deg. door opening.
Option (Made to order)	-
